light strip

High-Quality LED Strip from Hera

The Hera LED strip for groove installation offers a powerful lighting solution with 32 watts of power and a length of 500 cm. With a color temperature of 4000K, the light strip produces a pleasant cool white light, ideal for various lighting applications. The luminous intensity of 225 lumens per meter ensures even and bright illumination, while the IP20 protection rating provides protection against dust and contact.

Technical Details Simply Explained

This LED strip features a beam angle of 112°, which allows the light to be widely dispersed and efficiently illuminate a large area. The high color rendering index of 90-100 Ra guarantees that colors are displayed naturally and vividly. The operating voltage is 24 volts DC, ensuring a safe and stable power supply. The number of light sources per meter is 196, providing uniform light distribution without visible gaps.

Comfortable Handling and Versatile Dimmability

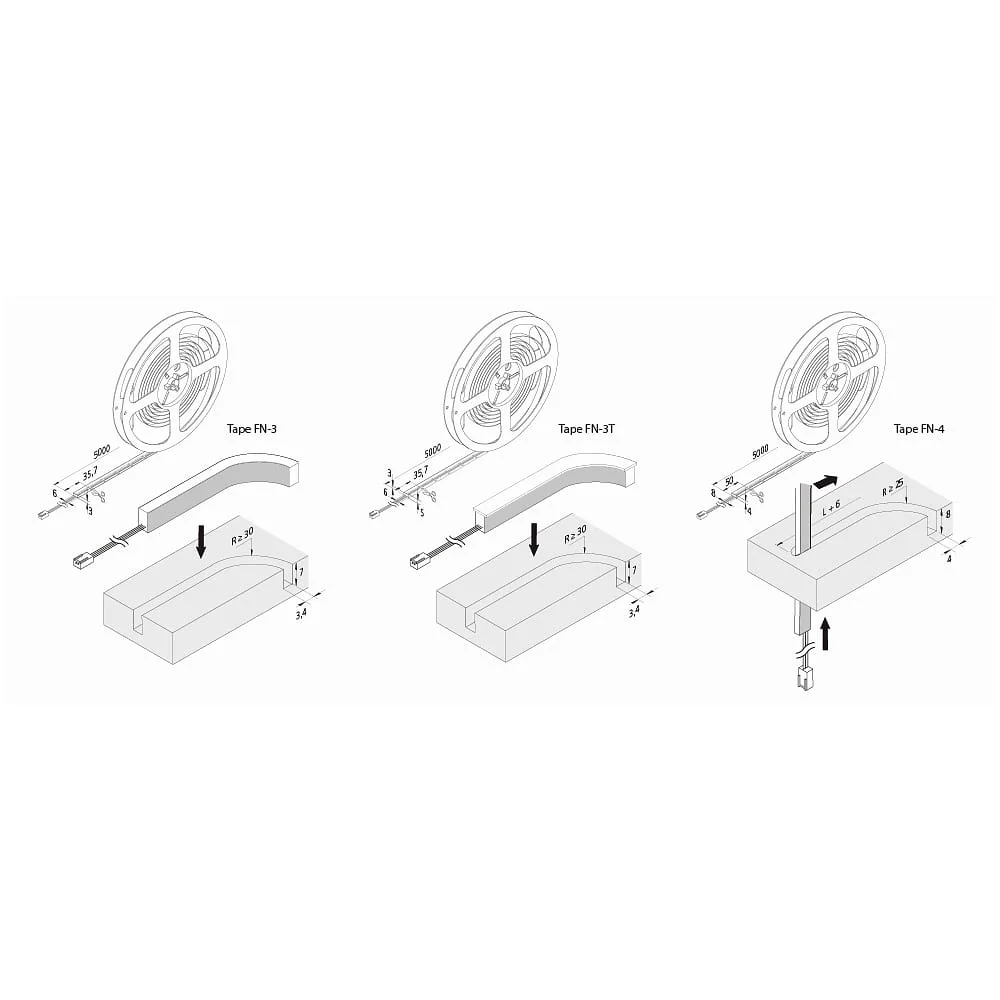

The LED strip is compatible with various dimming options, including analog 1-10V, DALI, and ZigBee, allowing brightness to be adjusted flexibly and easily. The product is suitable for through-wiring, enabling simple installation and expansion. The minimum bending radius is 30 mm, so the strip can also be easily mounted on slightly curved surfaces.

Includes Useful Accessories

The delivery includes a cover that evenly diffuses the light and protects against dust, as well as a connection set for easy connection to the power supply. The end cap is not included but can be purchased separately to neatly finish the LED strip and protect it from damage. Protection class 3 ensures safe use of the light strip in various applications.

Precise Craftsmanship and Compact Dimensions

With dimensions of 500 cm length, 0.3 cm width, and 0.6 cm height, the LED strip is particularly slim and can be installed unobtrusively. The conductor cross-section of 0.34 mm² and the 2-pole design guarantee a reliable electrical connection. The voltage-controlled LED driver ensures stable operation and a long lifespan for the LEDs. Overall, this light strip offers an efficient and flexible lighting solution for diverse applications.
