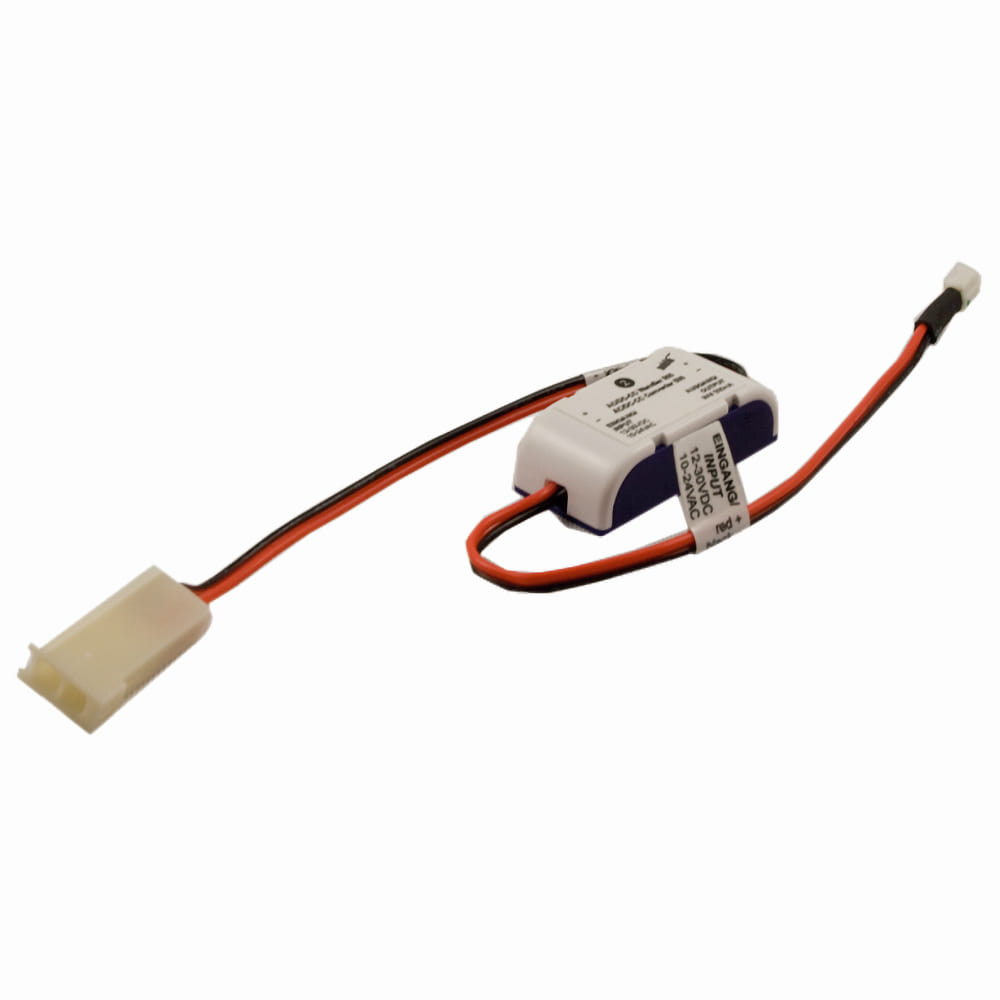

LED Voltage converter LED AC/DC Converter 700mA

LED Voltage Converter LED AC/DC Converter 700mA

The LED voltage converter is a practical device for converting alternating current (AC) to direct current (DC) with a constant current of 700mA. With an operating voltage of 12-24V, this converter is ideal for operating LED lights indoors.

Technical Details

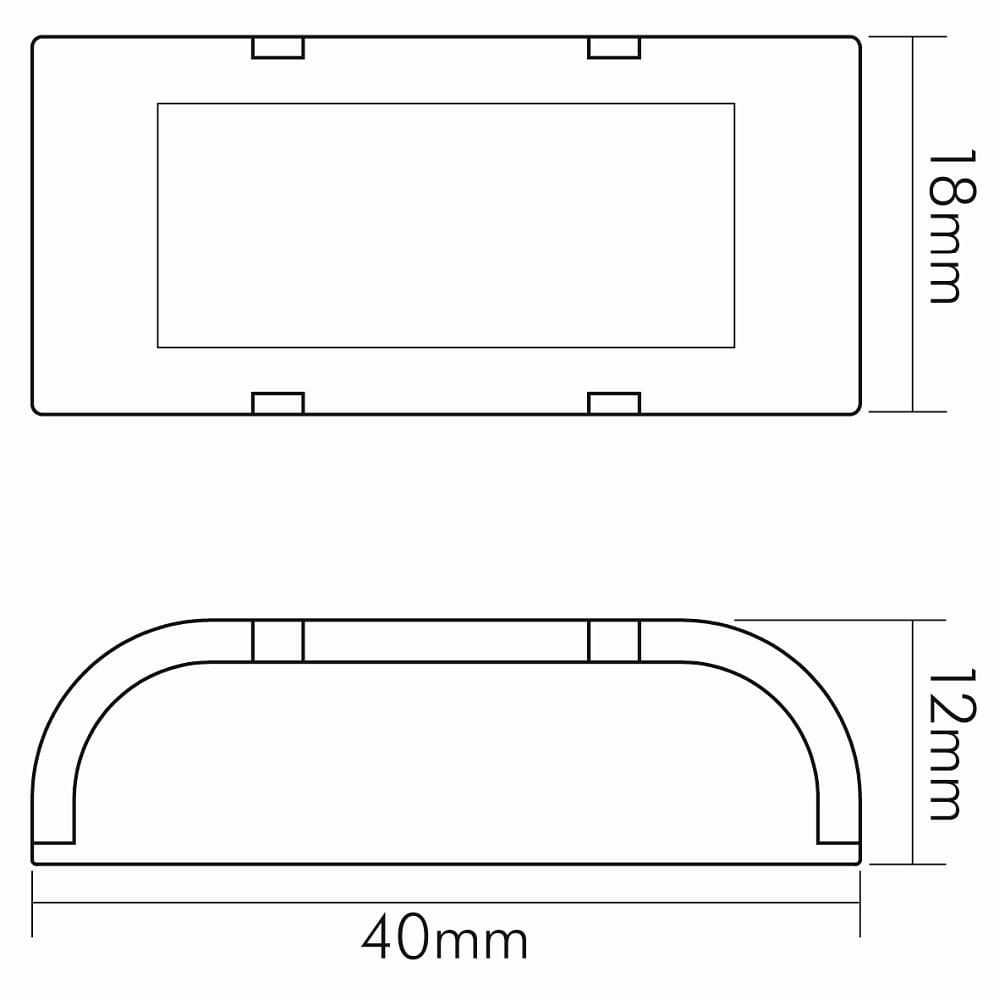

The LED voltage converter has a size of 4 x 1.6 x 1.2 cm and a weight of only 0.014kg. It is available in blue and white colors and is made of durable plastic. The converter has a protection class of 3 and an IP20 protection rating.

Power and Temperature

At an operating voltage of 12V, the power of the converter is 4.8W, while at 24V it is 12W. The maximum measuring point tc is 75°C and the ambient temperature ta can range from -20 to 50°C. The converter also has temperature protection at 100°C and is short-circuit proof.

Connection Options

The LED voltage converter has a 2-pin RST socket and a 2-pin socket (PWM) on the primary side. On the secondary side, there is a 2-pin AMP socket. The cable length is 15cm on both the primary and secondary sides.

Versatile Use

With its compact size, versatile connection options, and high performance, the LED voltage converter is ideal for use in various indoor areas. With its easy handling and reliable operation, it is the perfect choice for all LED lighting projects.
