LED Under-cabinet luminaire PINOLIGHT, 313mm, 4W, 3000K/4000K, 400lm, white

Megatron



We use Trusted Shops as an independent service provider for obtaining reviews. Trusted Shops has taken measures to ensure that the reviews are genuine.
More information
Are you a retailer or business customer (commercial/freelancer)? Secure special B2B prices now.

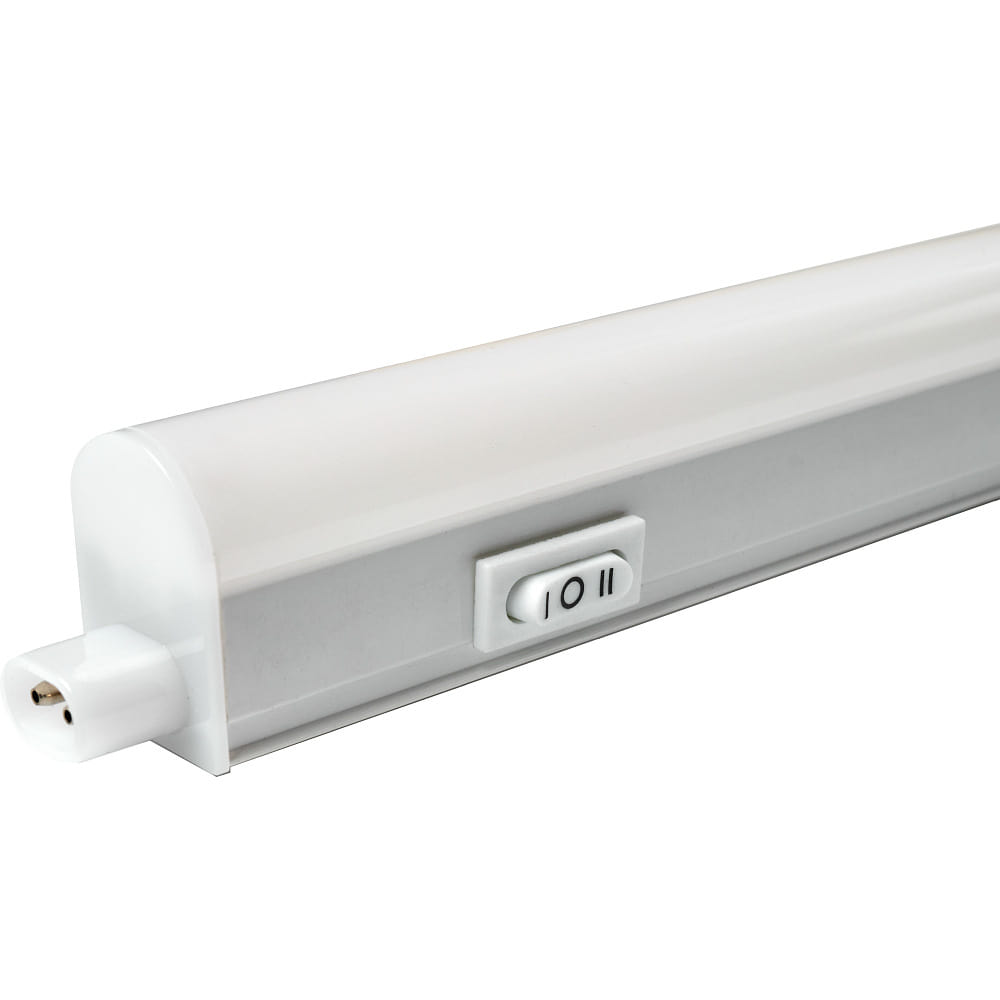

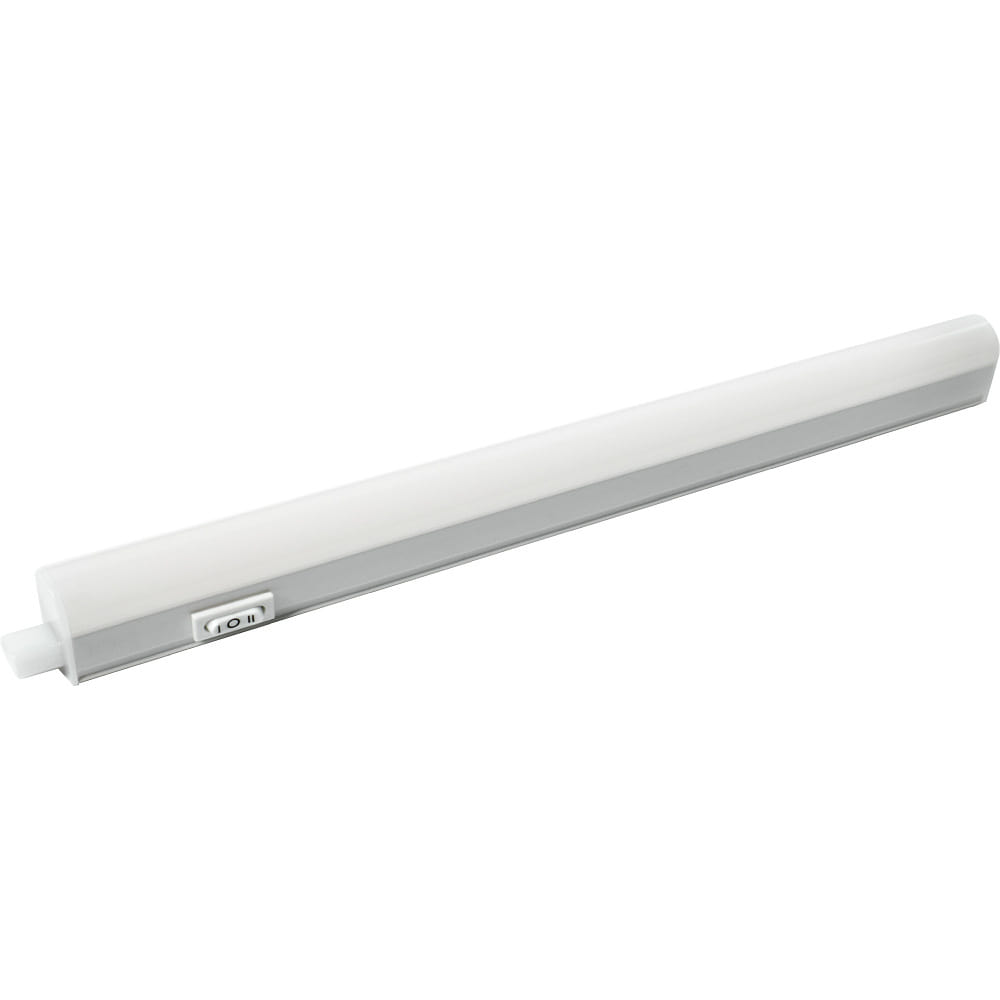

LED Under Cabinet Light PINOLIGHT CCT

The LED Under Cabinet Light PINOLIGHT CCT is a bright under cabinet light equipped with integrated LEDs. It provides continuous illumination without shadows and offers the option to choose between two light colors (3000K and 4000K). Thanks to the transparent transitions, there is no shadowing, and the light can be combined up to a length of 20 meters.

Technical Details

The under cabinet light has a power consumption of 4W and a luminous flux of 400lm. It has a beam angle of 140° and a color rendering index of 80Ra. The color rendering level is 1B and the color temperature can be set between 3000K and 4000K. The LED Under Cabinet Light PINOLIGHT CCT is not dimmable.

Installation and Connection

The under cabinet light is installed through surface mounting. The connection cable has a length of 180cm and is supplied with a plug and mounting material. Through-wiring for the installation of multiple lights in a row is possible, and the terminals are freely adjustable. The light is suitable for indoor use and can be connected to 230V.

Design and Material

The LED Under Cabinet Light PINOLIGHT CCT has a square shape and is made of white plastic. The dimensions are length 31.3cm, width 2.2cm, and height 3cm. The light has a diffuse light distribution and an average lamp lifespan of 25000 hours.

Additional Information

Additional features include an on/off switch, a connection cable, a mounting kit, and a connecting cable. The protection class of the light is 2, and the IP protection rating is IP20. The ambient temperature should be between -20°C and +40°C. The LED Under Cabinet Light PINOLIGHT CCT is a practical and efficient lighting solution for furniture and walls indoors.

Article number:
MT77222
Purchasing quantity:
1 piece
Brand:
Megatron
Manufacturer:
Megatron
Product type:
Unterbauleuchte
Operating voltage:
230 V~
Dimmable:
no
Lamp shape:
square
Power frequency:
50-60 Hz
Power consumption:
4 W
Emitting angle:
140 °
Bulbs in delivery:
yes
LED can be replaced :
no
Bulb type:
LED
Number of bulbs:
1
Light colour:
warm white / neutral white (in steps)
Light emission:
diffuse
Light flux:
400 lm
Colour temperature:
3000 / 4000 K
Average life span of a bulb in hours:
25000 h
Colour rendering index:
80 Ra
1B
Colour:
white
Material:
plastic
Throughwiring (installation of multiple luminaires in a row) is possible:
yes
Dimension:
L∕ W∕ H: 31,3∕ 2,2∕ 3 cm
Length of connection lead:
180 cm
Mounting:
surfaced mounting
Field of application:
wall
furniture
Protection class:
2
IP-protection class:
IP20
Application area:
only suitable for indoor use
Additional information:
No shading thanks to transparent transistions.
Accessories:
plug incl
mounting set incl
connection cable incl
on/off switch incl
connecting cable excl
ambient temperature:
-20? - +40? °C
