LED Strip SIL RGB+WW white

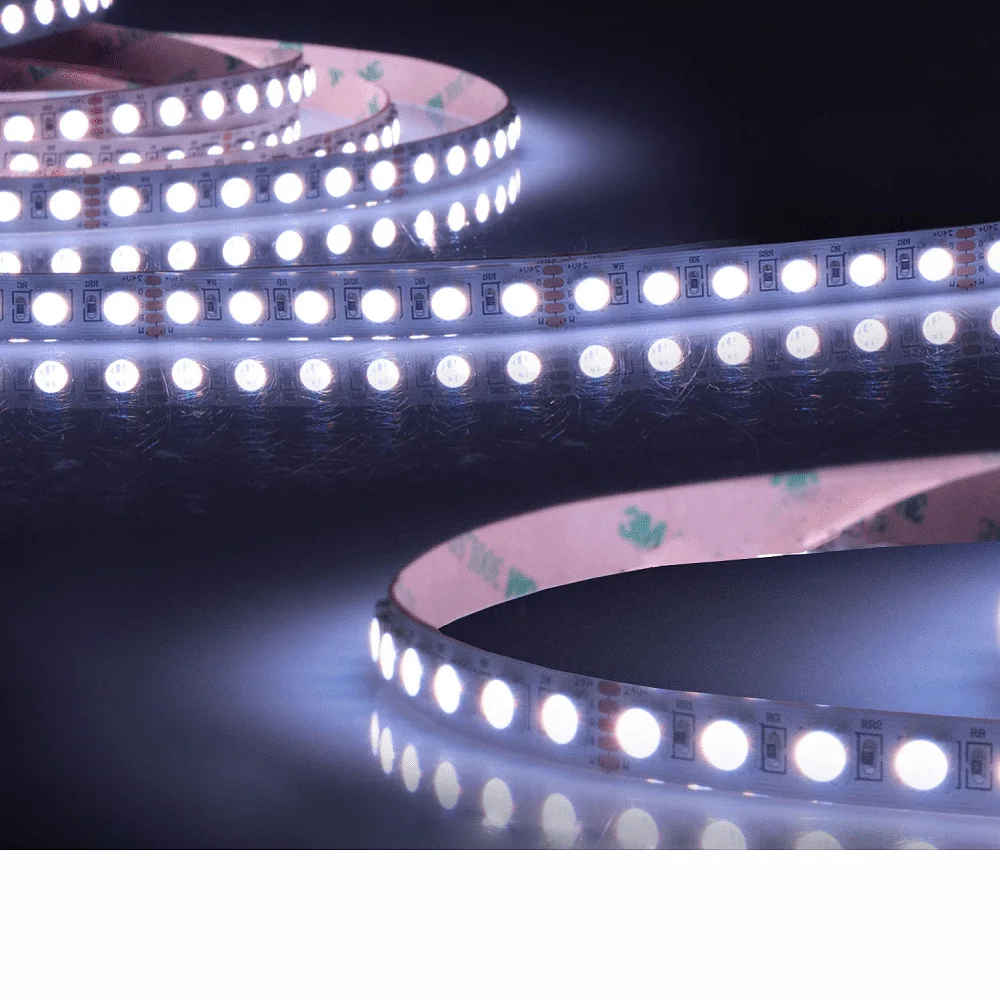

LED Flexband SIL RGB+WW, 24V, 19W, IP20, 3000K, RGB, 4in1 Chip, 96 LED/m

The LED Flexband SIL RGB+WW is a versatile lighting product with a power consumption of 19W and a color temperature of 3000K. It features a 4in1 chip and offers a high luminous intensity of 321cd and a luminous flux of 1020lm per meter. With an IP20 protection rating, this flexband is ideal for indoor use.

Technical Details and Accessories

The flexband has a size of 500 x 1 x 0.3 cm and comes with adhesive tape. It is dimmable through PWM pulse width modulation and has a mean lamp life of 30000 hours. The switching cycles are 30000 and the energy efficiency class is E. The item number is ISO-115506 and the EAN is 9009377142963.

Further Information

The cutting point is 62.5mm with 6 SMD each and the pitch (chip center-center) is 10.42mm. One roll equals 5m and the maximum flexband length per feed is 5m. The length tolerance plus thermal expansion is 1%. The flexband includes 3M 300LSE adhesive tape for easy installation.

Application and Material

The LED Flexband SIL RGB+WW is made of copper and requires a cooling mass of at least 75 gr/m. It is ideal for lighting living spaces, shops, or events. The surface should be cleaned and degreased before installation to ensure optimal adhesion.

Conclusion

With its high luminous power, various color options, and easy installation, the LED Flexband SIL RGB+WW is an ideal solution for individual indoor lighting. Its versatile application possibilities and high-quality craftsmanship make it a popular product for various lighting projects.
