LED Strip R2R COB

LED Strip R2R COB, 5m, 10W/m, 480 LED/m, 2700K, 900lm/m, Ra90, 24V, IP20

The LED Strip R2R COB offers an excellent lighting solution with a length of 5 meters and a power of 10W per meter. With 480 LEDs per meter, it produces a pleasant light temperature of 2700K and 900 lumens per meter. The high color rendering index of Ra90 ensures natural colors. The operating voltage is 24V. Item number: SIG-5955601.

High Energy Efficiency and Dimmability

With an energy efficiency class of G and an energy consumption of 10kWh/1,000 h, the LED strip is energy-efficient despite its power. It is dimmable to adjust the light intensity as needed. The high light output of 92.52lm/W and low power consumption of 50W make it an efficient lighting solution.

Technical Details and Size

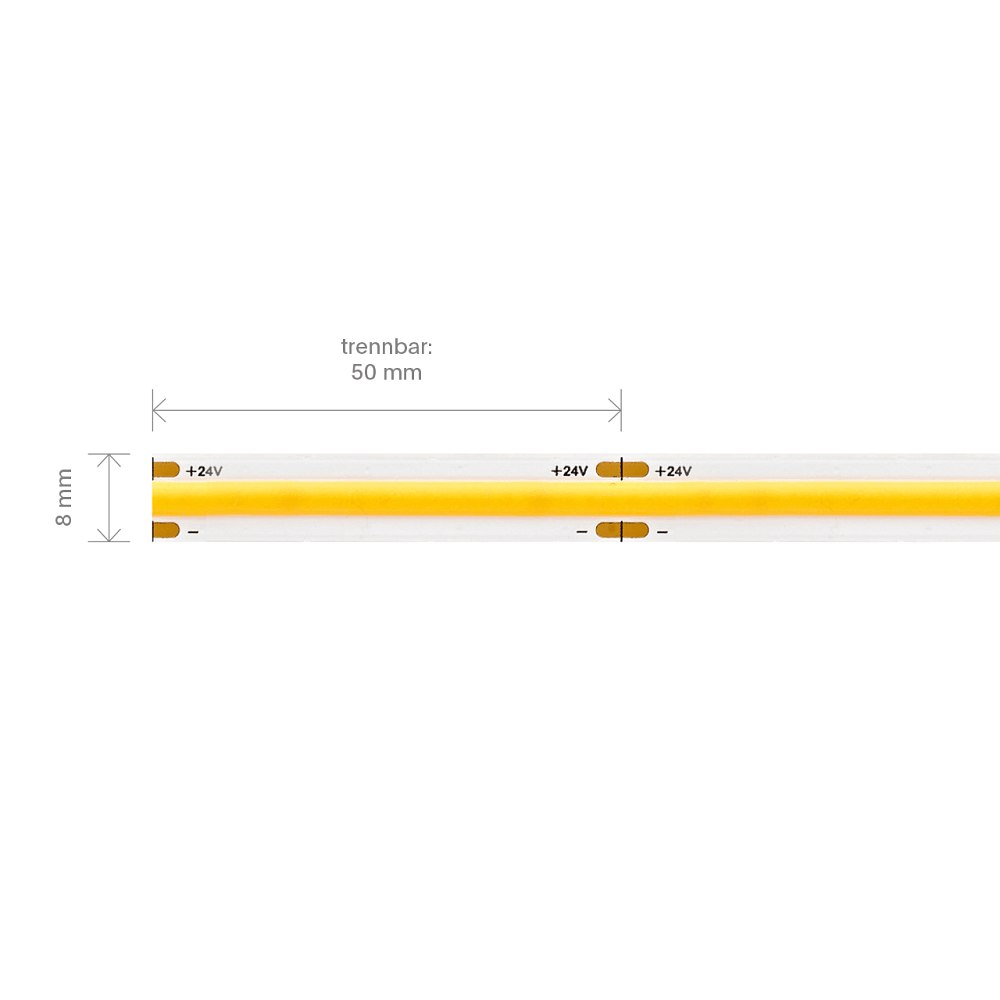

The LED strip has a total of 2400 light sources and a generous beam angle of 180°. The size is L∕ B∕ H: 500∕ 0.8∕ 0.16 cm, with an LED spacing of 0.21 cm. It can be cut every 5 cm for individual adjustments. The ambient temperature ranges from -20 to 60°C.

Additional Information and Specifications

The LED strip has a color temperature of 2700K and a color rendering index of 90Ra. The IP protection rating is IP20, making it suitable for indoor use. It is equipped with COB LEDs and produces an extra warm white light color. The average lamp life is 54000 hours.

Reliable Lighting Solution for Various Applications

With a rated current of 2040mA and a high light output of 4525lm, the LED strip is ideal for various applications. The color consistency (SDCM) is 5, and the number of LEDs per meter is 480. With a primary and secondary feed of 100cm each, and a residual light flux maintenance of 0.8 at the end of life, it offers a reliable lighting solution.
