LED Strip HEQ FLEX HIGH BRIGHT 2-pole white

LED Flexband HEQ HIGHT BRIGHT, IP20, 160 LED/m, 24V, 17W, CRi >90, dimmable

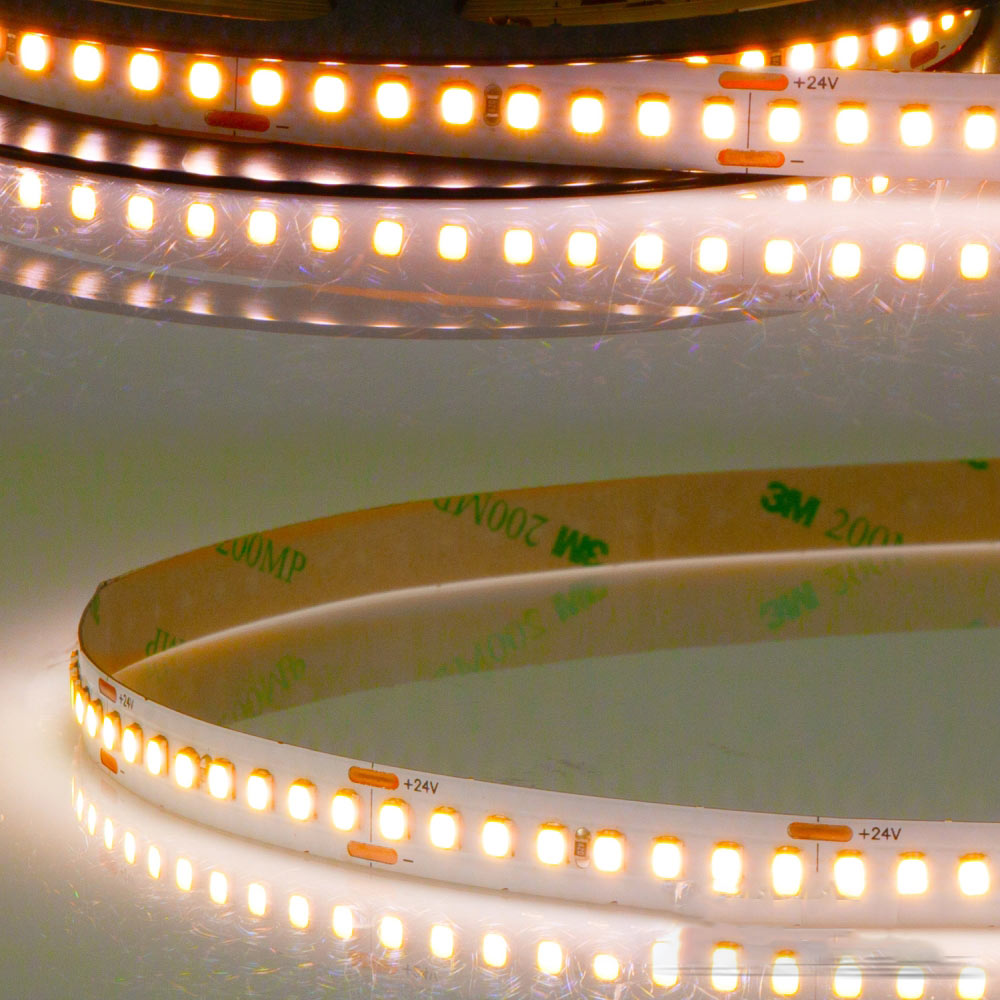

The LED Flexband HEQ HIGHT BRIGHT is an exceptionally powerful indoor LED strip with dimmable, warm white light output. It offers excellent color rendering with a CRi value of 93Ra and has a self-adhesive back. With 160 LEDs per meter, a power of 16W per meter, and a luminous flux of 2250 lm per meter, this Flexband is ideal for a variety of applications.

Technical Data

The LED Flexband has an operating voltage of 24V and a power consumption of 80W. The color rendering index is 93Ra and the color temperature is 2700K. With a beam angle of 120° and a light distribution directly downwards, this Flexband creates a uniform and pleasant lighting.

Installation and Application

The Flexband can be installed, mounted, or integrated into a system. The power connection is made by soldering and the maximum operable length is 500 cm. Before attaching the Flexband, it is important to thoroughly clean and degrease the surface to ensure optimal adhesion. The Flexband is not removable and requires a heat sink of at least 75 grams per meter.

Accessories and Energy Efficiency

The Flexband comes with a connection set, power supply, dimmer, mounting accessories, and adhesive tape. It consumes 80 kWh per 1,000 hours and belongs to energy efficiency class D. The average lamp lifespan is 30,000 hours, ensuring long-lasting and reliable lighting.

Additional Information

The LED Flexband HEQ HIGHT BRIGHT from the ISOLED brand offers a high light output of 2250 lm/mlm/W and a luminous flux of 11250lm. Dimming is done through PWM pulse width modulation and the Flexband is not suitable for LED replacement. With an IP protection class of IP20, the Flexband is well-suited for indoor use and requires an electronic ballast for operation.
