LED power supply HEP DIM CC G6LT15W350LR-Z current constant

LED Power Supply HEP DIM CC G6LT15W350LR-Z (CC, DC)

The LED power supply HEP DIM CC G6LT15W350LR-Z is a constant current, dimmable device with IP20 protection rating. It is specifically designed for use with LEDs and has an average lamp lifespan of 50000 hours. The rated current is 350mA and the power connection is made through a terminal.

Technical Details

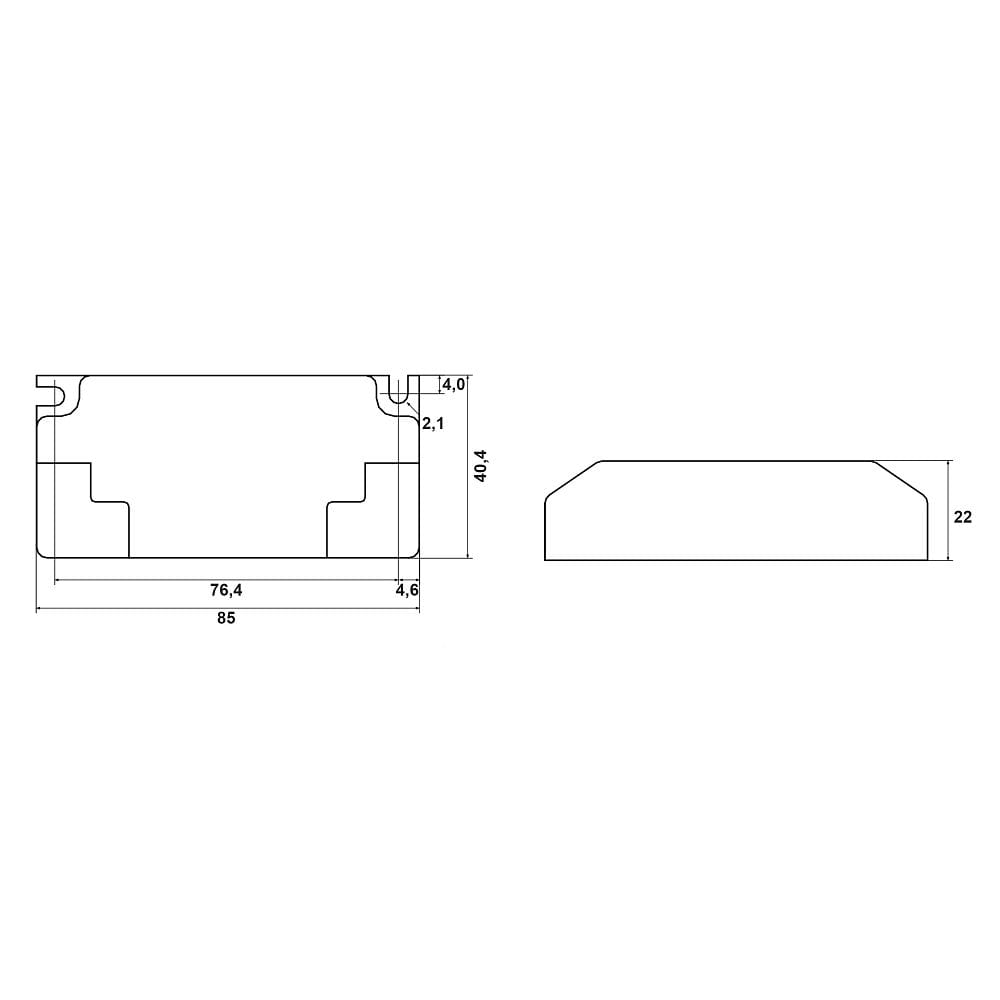

The power supply has dimensions of 4.04 x 2.2 x 8.5 cm and has a switching cycles of 25000. It has a power factor of 0.9 and operates in a temperature range of -20 to 50 °C. The startup current is maximum 10 A at a maximum time of 40 µs. Additionally, it is equipped with a terminal connection.

Safety and Protection

The LED power supply is flicker-free and protected against short circuit, overload, and overheating. It can be used with various types of circuit breakers, such as B10A=38, B16A=61, C10A=38, and C16A=61. The HEP brand guarantees high quality and durability of the product.

Dimming and Application

The LED power supply works with phase-cut dimming and is ideal for use in various lighting applications. With its compact size and versatile connection options, it is easy to install and operate. Its constant current properties ensure a steady and reliable power supply for your LEDs.

EAN and Item Number

The EAN of the LED power supply HEP DIM CC G6LT15W350LR-Z is 4042943179050 and the item number is D-862266. With its modern design and high-quality construction, it is the ideal choice for those looking for a reliable and efficient power supply for their LEDs.
