LED power supply EL-8R-350 D dimmable, white

High-Quality LED Driver EL-8R-350 D from nobilé

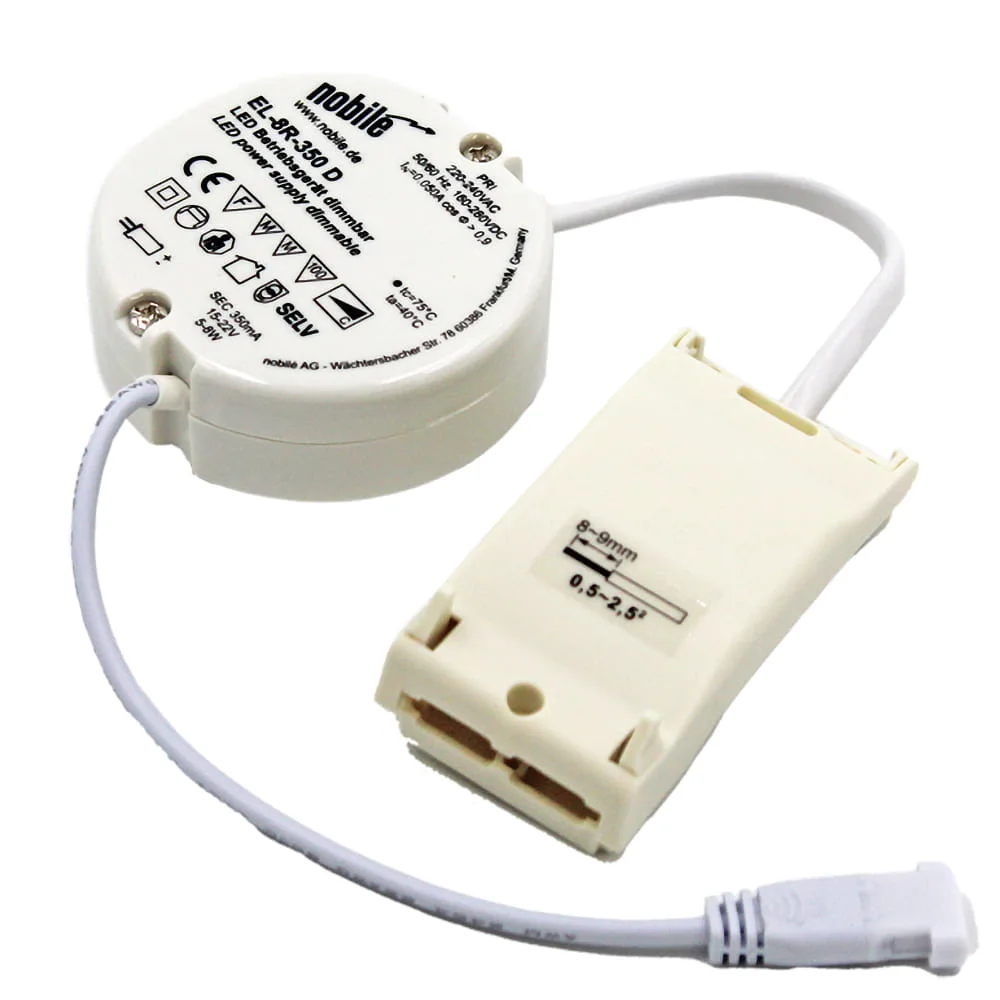

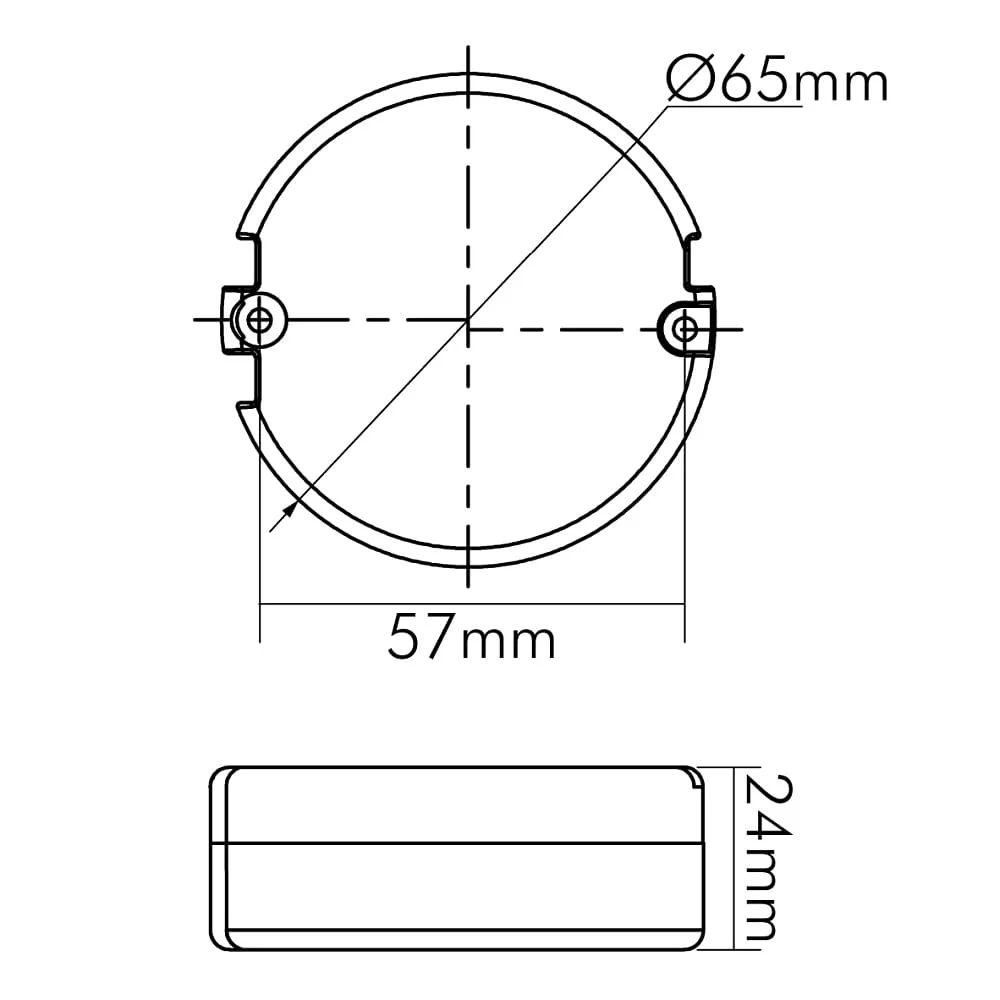

The LED driver EL-8R-350 D from nobilé is a powerful and reliable power supply specially designed for LED lamps with a power rating of 5 to 8 watts. It operates with a constant current of 350mA and an operating voltage of 160 to 280 volts, ensuring a stable and safe power supply. The white, compact design with dimensions of Ø 6.5 cm and a height of 2.4 cm allows for easy integration into various installation projects.

Technical Details Explained Simply

The driver features an input voltage of 220 to 240 volts AC and also supports DC voltage from 160 to 280 volts, allowing flexible use. The current consumption is only 0.05 amperes, making the device energy efficient. For connection to the LED lamp, a 20 cm long connection cable with a 2-pole CCV plug system is provided. Installation is done as a built-in variant and requires additional mounting accessories.

Safety and Protection Features

The LED driver is equipped with several safety mechanisms that ensure reliable operation. It automatically switches off in case of a short circuit, overload, or overheating to prevent damage. Additionally, a protection function is integrated for temperatures above 110 degrees Celsius. The high-quality polycarbonate (PC) construction ensures a robust and durable design that also passes the glow-wire test according to IEC 60695-2-10 at 850 °C.

Dimming Function for Individual Lighting

A special highlight of the EL-8R-350 D driver is its support for phase-cut dimming. This allows stepless brightness control of the connected LED lamps and creates a pleasant lighting atmosphere. The dynamic design of the power supply makes adapting to different dimming systems easy and comfortable. The power factor at full load is over 0.9, which indicates efficient conversion of electrical energy.

Versatile Use in Furniture and Built-In Solutions

The LED driver was specially designed for use in furniture and is ideal for installation in suspended ceilings or other built-in variants. With protection class IP20, the device is intended for use in dry environments. The connection box with through-wiring enables simple and safe installation in the power network. Weighing only 110 grams, the driver is also very lightweight and compact, which further facilitates installation.
