LED power supply EL-74-24V IP67 with open cable, voltage constant, switchable, silver

High-Quality LED Driver from Mean Well

The outdoor LED driver from Mean Well impresses with its first-class workmanship and technical reliability. With an operating voltage of 142-431V~ and an output voltage of 24V DC, it guarantees a constant power supply for LED applications. The robust silver metal housing ensures durability and protection against external influences. Despite its light weight of only 0.52 kg, the device is extremely stable and resistant.

Protection Class and IP67 Certification

The power supply is rated as protection class 1 and features the IP67 protection rating, which means it is reliably protected against dust and strong jets of water. It even withstands temporary immersion, significantly enhancing the safety and longevity of the driver. These protective features make it a premium solution for demanding applications.

Power Consumption and Connection Cables

The power consumption of the driver ranges from 0 to 74.4 watts, allowing flexible adaptation to various LED systems. The device is equipped with two 300 cm long connection cables: the primary cable is 3-core, the secondary cable is 2-core, both with open wire ends. This long cable length facilitates installation and ensures a secure connection without additional extensions.

Temperature Resistance and Areas of Application

The LED driver is designed for a temperature range from -40 °C to +60 °C and has a maximum case temperature (Tc) of 90 °C. This temperature resistance guarantees stable operation even under changing climatic conditions. Thus, you can rely on consistent performance without the device overheating or failing.

Complete Accessories and Versatile Power Options

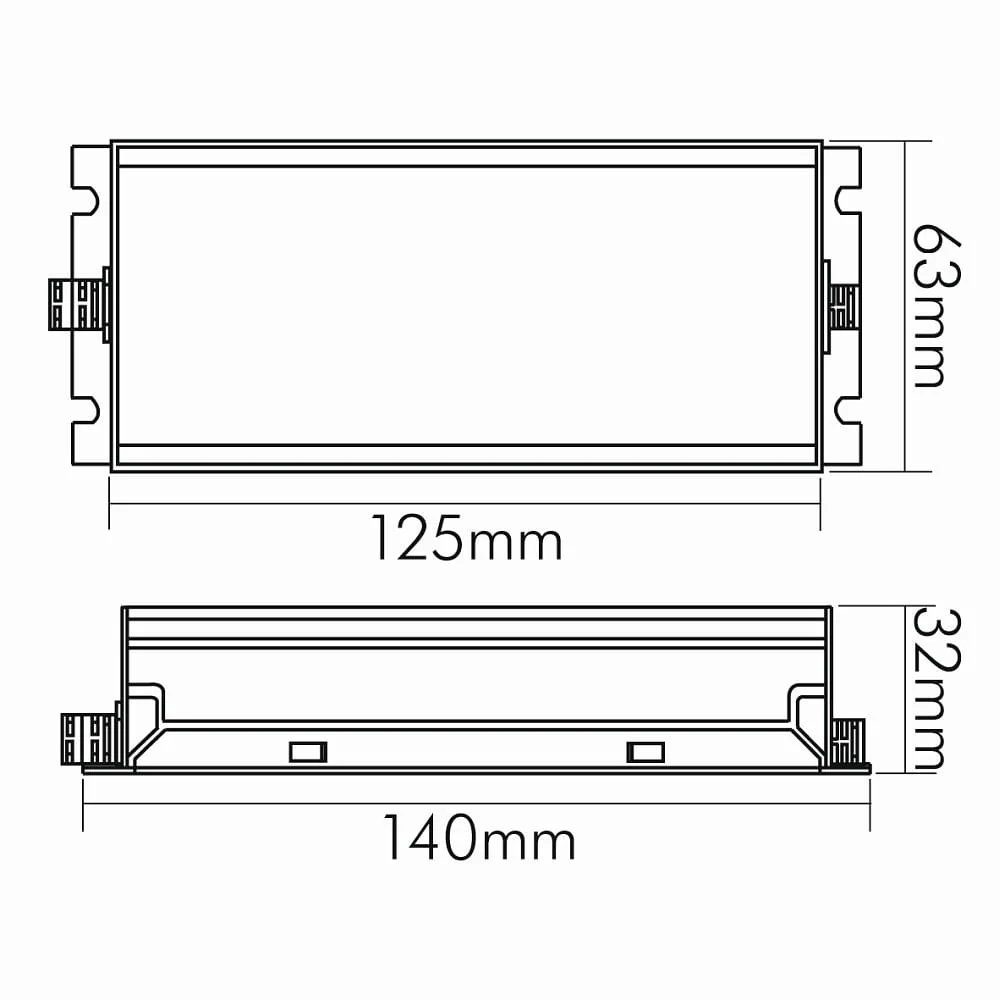

The scope of delivery includes, in addition to the driver itself, suitable connection and linking cables that allow easy and secure installation. The device is available in various power levels, so it can be optimally adapted to your individual requirements. With its compact size of 14 x 6.3 x 3.2 cm, it fits into a wide range of installations.
