LED panel RASTER LINE, 36W 4200lm 4000K CRI 80-89

High-Quality LED Panel RASTER LINE 625 for Optimal Lighting

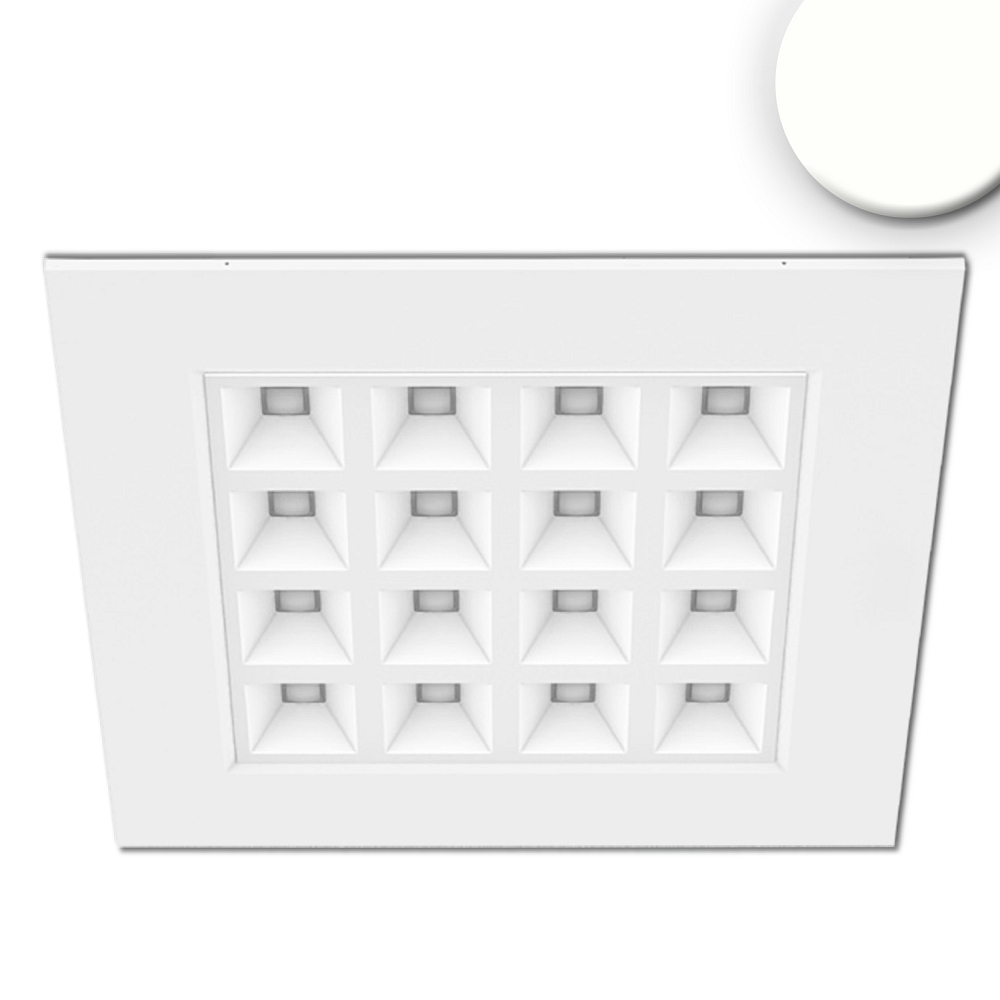

The LED Panel RASTER LINE 625 from ISOLED impresses with its first-class workmanship and modern technology. With a power consumption of 36 watts, it offers bright and even illumination with a luminous flux of 4200 lumens. The light color is neutral white at 4000 Kelvin, providing a pleasant and natural lighting effect. The panel’s white design and compact size of 62 x 62 x 4.7 cm make it a versatile light source that integrates harmoniously into various environments.

Efficient Light Quality with Low Energy Consumption

The LED panel features a color rendering index of 80-89 Ra, meaning colors are rendered vividly and naturally. Despite the high brightness, energy consumption remains very low at 36 watts, which not only saves electricity costs but also protects the environment. The average lifespan of 45,000 hours ensures that the panel operates reliably and with low maintenance for many years. The integrated PowerSwitch technology allows power adjustment within a range of 21 to 40 watts, offering flexible customization options.

Simple Connection and Safe Handling

The LED panel comes with a mains connection featuring a terminal block, ensuring easy and secure installation. The operating voltage ranges from 220 to 240 volts, which complies with the standard in many applications. The product weight of 3.55 kilograms provides stable mounting, while the durable plastic material ensures longevity. With an IP42 protection rating, the panel is protected against solid foreign objects larger than 1.0 mm and against dripping water.

Innovative Light Distribution for a Pleasant Room Climate

Uniform light distribution is ensured by the integrated light distributor with diffuser lens, which gently scatters the light and reduces glare. The panel is designed as a direct emission light source, so the light is distributed widely and evenly throughout the room. The so-called UGR value (Unified Glare Rating) is below 16, which means the panel is especially glare-free, providing a comfortable working and viewing experience. This feature makes it ideal for environments where visual precision and comfort are important.

Accessories and Technical Details at a Glance

The LED panel is delivered without an operating device, as it is not required. The PowerSwitch technology supports variable power adjustment between 21 and 40 watts to meet different lighting needs. The ambient temperature range in which the panel operates reliably is between -20 and 40 degrees Celsius. Overall, the LED Panel RASTER LINE 625 offers a durable, energy-saving, and flexible lighting solution with easy installation and high-quality light output.
