LED module EXCHANGE MODULE CCT DIM - Ø 19.0CM round, with switch, CCT Switch

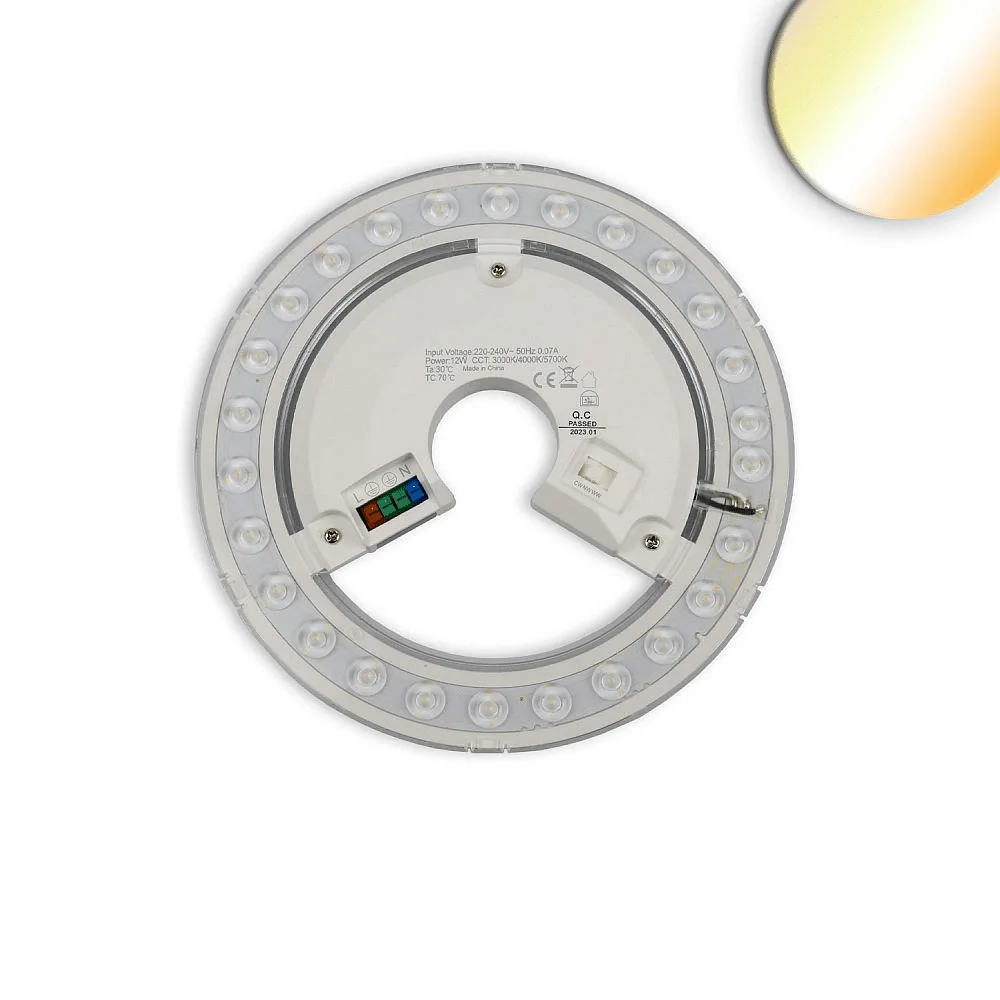

Efficient LED Retrofit Board for Indoor Use

The LED retrofit board from ISOLED is an efficient lighting solution for indoor use. With a power consumption of 11W and a light output of 162lm/W, it offers excellent brightness with minimal energy consumption. The color temperature can be adjusted to 3000K, 4000K, or 6000K depending on your needs.

Dimmable and Color-Changing

This retrofit board features a holding magnet and is dimmable, allowing for flexible adjustment of the lighting. It also comes with a ColorSwitch, allowing you to customize the light color to your liking, from warm white to cool white.

Easy Installation and Durable

Thanks to the recessed installation and system-specific construction, the LED retrofit board can be easily installed. With an average lamp lifespan of 38000 hours, you can enjoy this lighting solution for a long time. The extremely wide beam angle of over 80° also ensures a large area of illumination.

Technical Details Overview

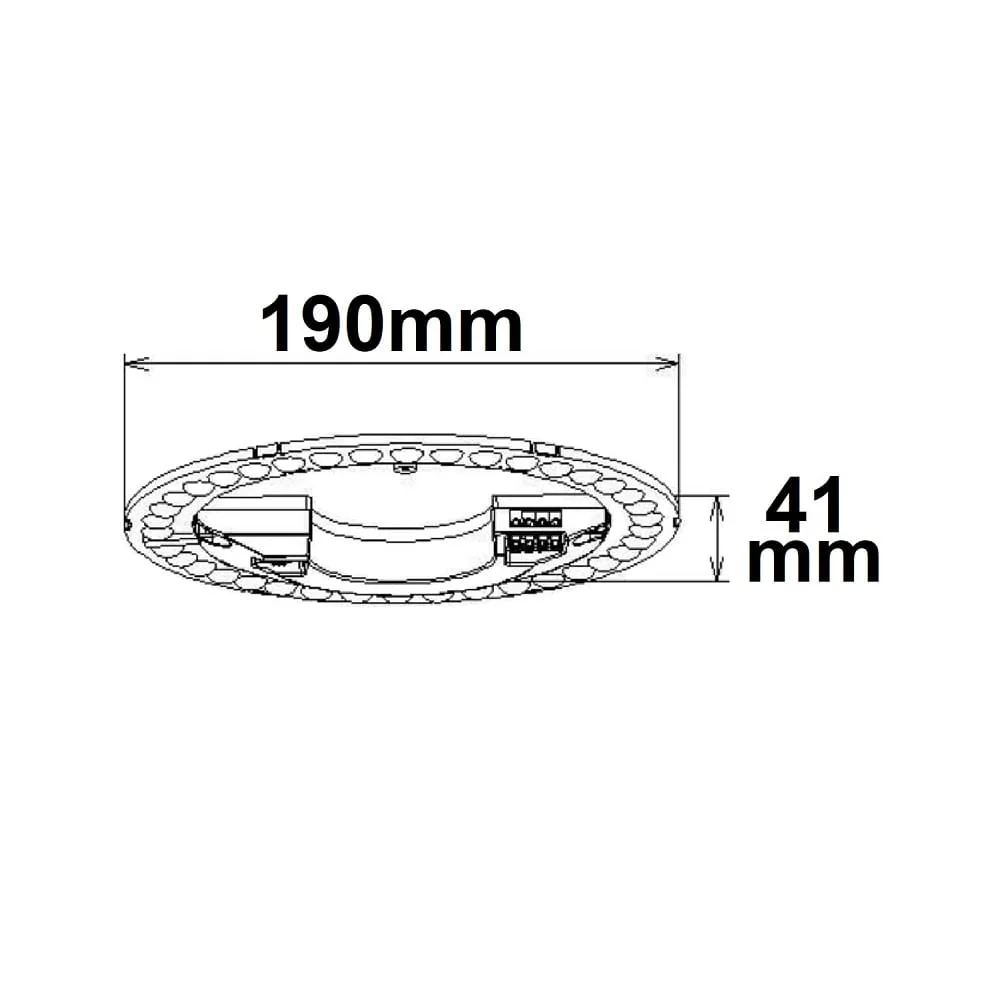

The color rendering index is between 80-89Ra, ensuring good color reproduction. The protection class is 1 and the IP protection rating is IP42. The operating voltage is 220-240V and the power factor is 0.95. The material of the retrofit board is plastic and the size is Ø 19 / H 4.1 cm.

Versatile Applications

This LED retrofit board is ideal for use on ceilings and walls indoors. With a symmetrical light distribution and a high color rendering level of 1B, it provides pleasant lighting. Please note that a driver is required for operation, which must be purchased separately.
