LED driver with constant voltage EL-4-350

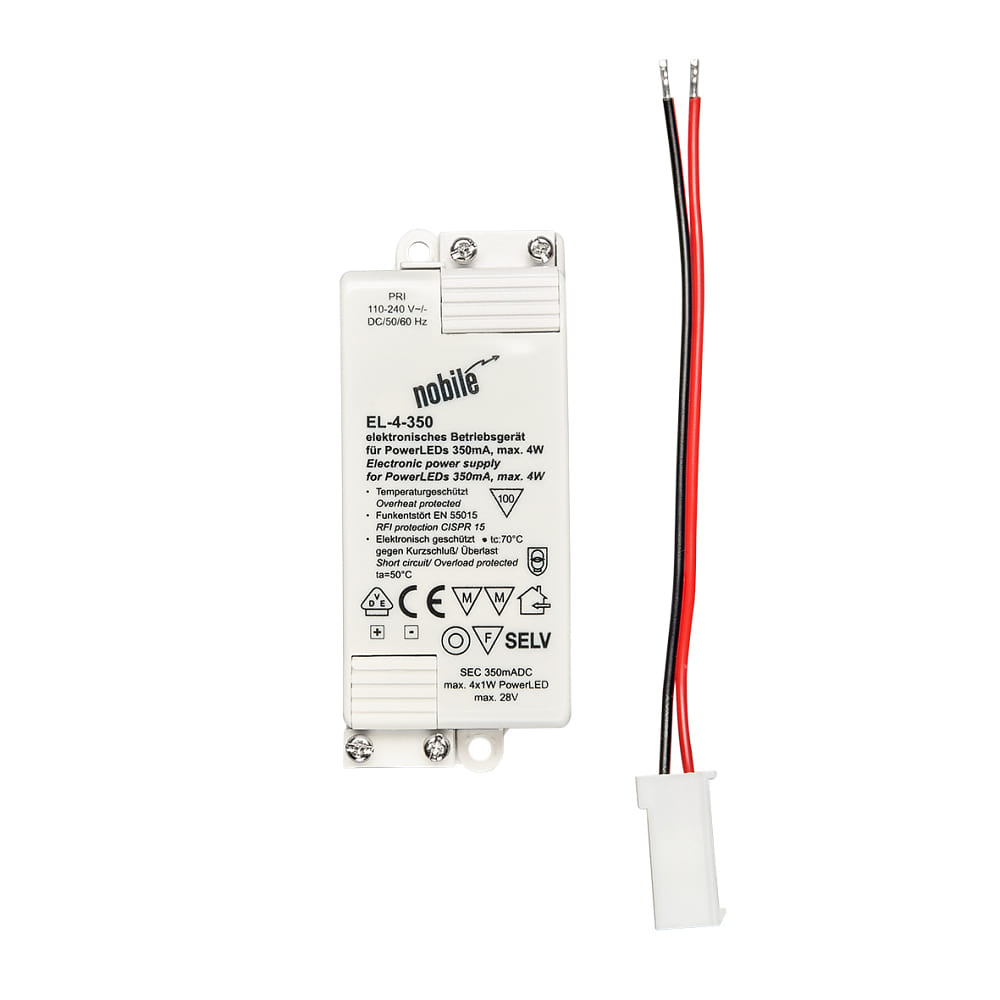

LED operating device with constant current EL-4-350

The LED operating device with constant current EL-4-350 is a reliable and efficient power supply for operating LEDs. With a power consumption of 1 - 4W and a constant current of 350A, it provides a constant and stable power supply for your LED lighting.

Technical details

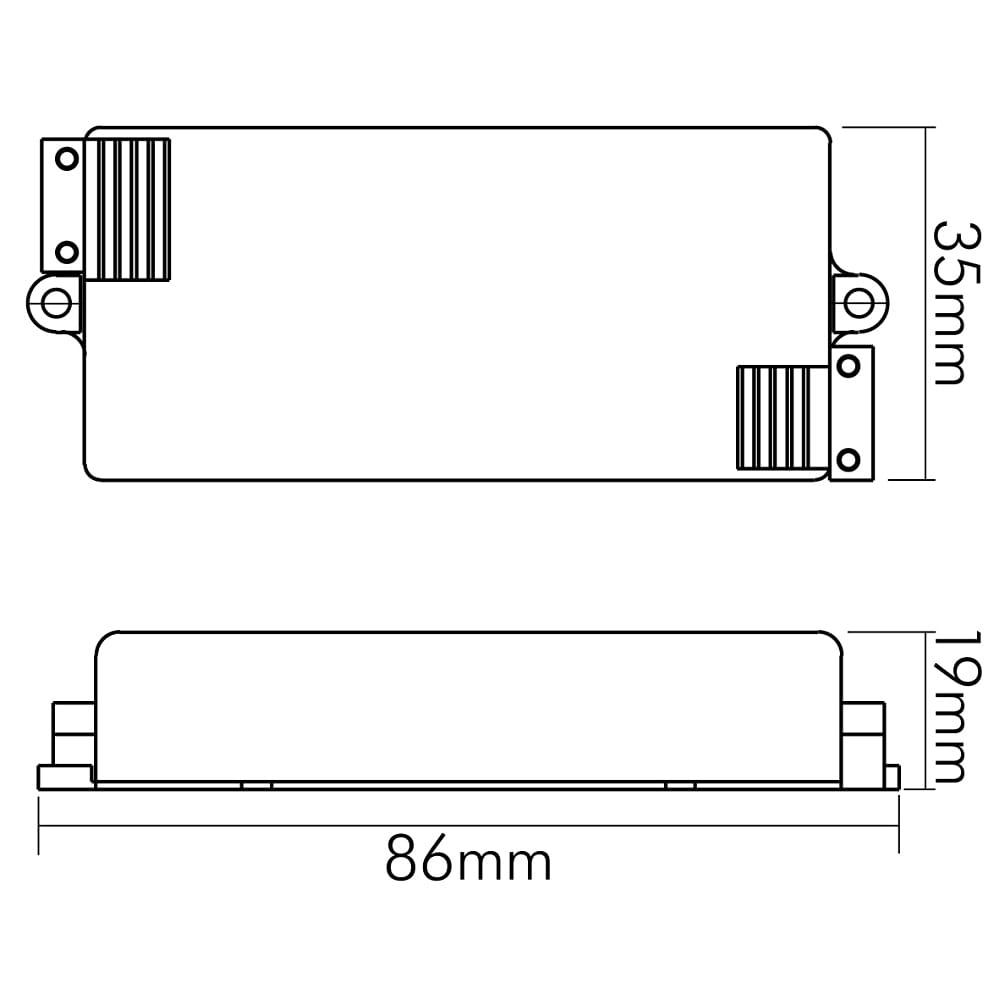

The operating device has an operating voltage of 220 - 240V and weighs only 0.04kg. It has a short-circuit window fuse transformer and is classified in protection class 2. The IP protection rating is IP20 and the size of the device is L/ W/ H: 85.00/ 35.00/ 19.00mm.

Connection options

The LED operating device is easy to install and has covered screw terminals and strain relief on the primary side. On the secondary side, there is an AMP socket with 2 poles. The cable type on the primary/secondary side is H03VVH2-F 2x 0.75mm2 and the cross-sectional area of the conductor is 0.75mm2.

Temperature protection and safety

To ensure a long lifespan, the LED operating device has temperature protection at 100°C. The maximum measuring point tc is 70°C to prevent overheating. With a cable length of 20cm on the secondary side, it offers flexibility during installation.

Brand nobilé and application

The LED operating device with constant current EL-4-350 comes from the renowned brand nobilé and is exclusively designed for indoor use. With a power frequency of 50/60Hz, it is ideal for use in living spaces, offices, or other indoor areas.
