LED driver TRIDONIC,ON/OFF AC/DC SUITABLE current constant, switchable

LED Panel Ballast TRIDONIC ON-OFF

The LED panel ballast TRIDONIC ON-OFF from Rutec Projekt is a switchable constant current converter for indoor applications. It is AC/DC compatible and has an input voltage range of 198-264 V AC 50/60 Hz and 176-280 V DC. With a protection class 2 and IP20 protection rating, it offers reliable protection against surge voltages of up to 1 kV.

Technical Details

The LED driver operates at a voltage of 176-280V and delivers a constant current of 900mA. With an output voltage of 23-50V DC, it can provide a power of up to 45W. The device is equipped with spring pressure terminals and strain relief and offers protection against short circuit, overload, open circuit, and overtemperature. Certified according to CE, RoHS, REACH, MM, and SELV.

Compact Design

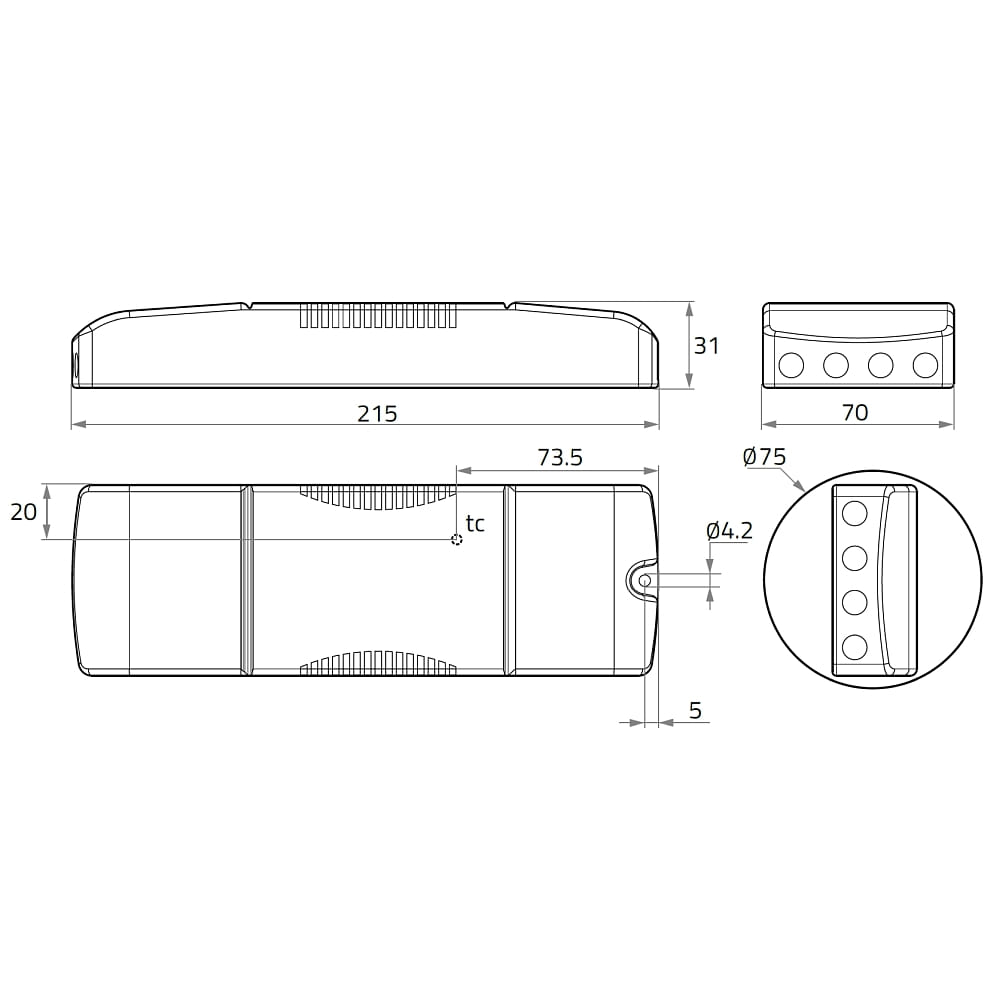

The LED panel ballast has a compact size of 21.5 x 7 x 3.1 cm and is ideal for use in various indoor applications. Thanks to its easy installation and sturdy construction, it is a reliable solution for powering LED panels.

Versatile Applications

With its wide input voltage range and the ability to use both AC and DC, the ballast offers flexible application possibilities. It is ideal for use in offices, shops, living spaces, and other indoor areas.

Additional Information

The LED panel ballast TRIDONIC ON-OFF from Rutec Projekt is a reliable and efficient LED driver for indoor applications. With its extensive protection functions and certifications, it offers a safe and high-quality solution for powering LED panels. For more details, please refer to the product datasheet or manual.
