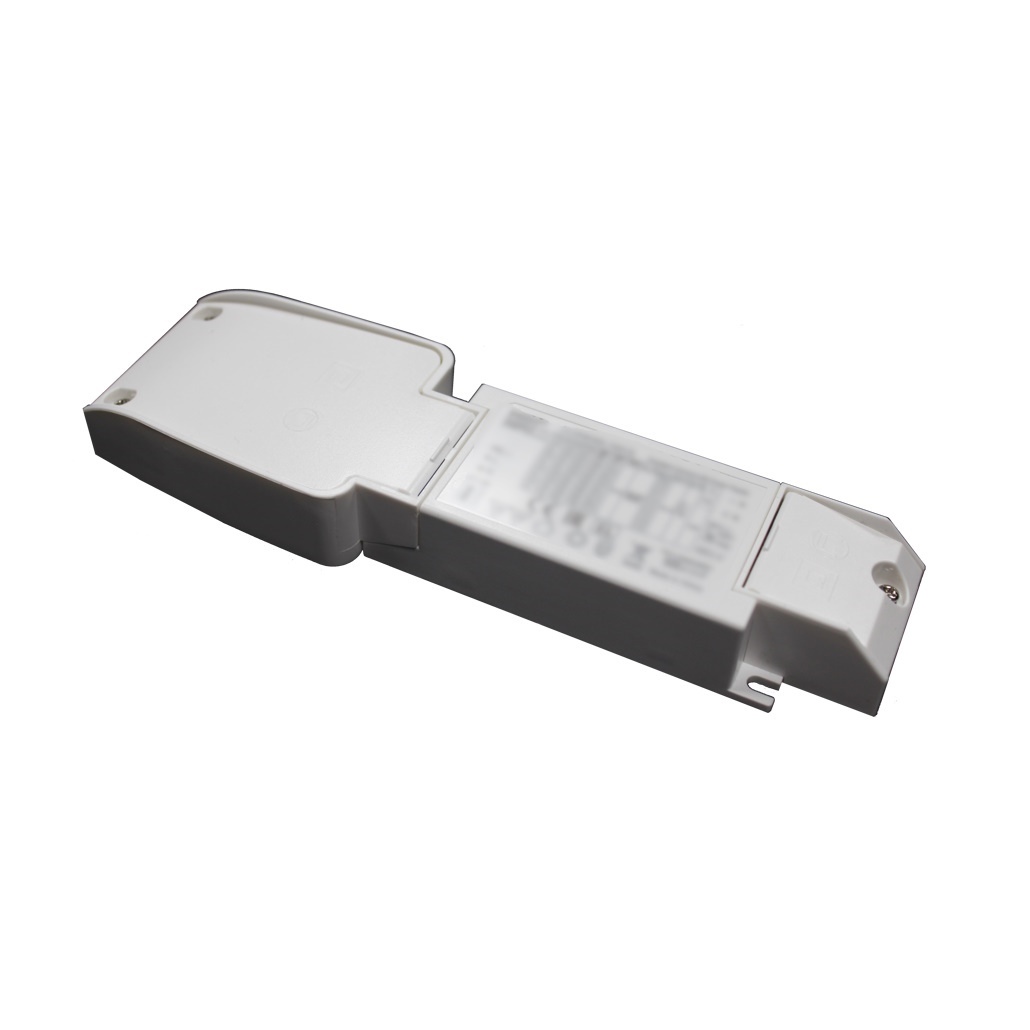

LED driver TR UNI.2022 DALI.DVE DALI controllable, multipower, white

LED Driver TR UNI.2022 DALI.DVE for LED Backlight Panel BLP41 2022MA.678xL, IP20, AC/DC, Multipower, DALI dimmable

The LED driver TR UNI.2022 DALI.DVE from Frisch-Licht is a high-quality product specifically designed for use with LED Backlight Panel BLP41 2022MA.678xL. With an operating voltage of 220-240V~, this driver is versatile and offers excellent performance.

Technical Details

The LED driver has an average lamp lifespan of 70000 hours and can operate at an ambient temperature of -20 to +50 °C. It is equipped with a DALI dimmer and offers the option to adjust brightness in 16 steps via DIP switches. With an IP protection rating of IP20, the driver is safe from dust and moisture.

Accessories and Connection

The LED driver comes with DIP switches included, while connection cables, controllers, dimmers, and luminaires must be purchased separately. The power supply is connected via a terminal, ensuring easy and secure installation. Weighing only 0.126 kg, the driver is lightweight and easy to handle.

Advantages and Applications

This DALI dimmable Multipower LED driver is ideal for integration into digital building automation systems. It is specifically designed for operating the LED Backlight Panel Module 625 (620/620) and can also be used for through-wiring and emergency lighting systems. With a maximum power of 37W and a brightness of up to 5800lm, the driver delivers excellent results.

Additional Information

The LED driver TR UNI.2022 DALI.DVE is CLO Ready and provides flicker-free performance. The input voltage is 198-264V AC for alternating current and 170-276V DC for direct current. The secondary DC voltage is 9-42V DC with an operating voltage of 59V. With a ripple current of less than 5%, this driver offers stable and reliable performance for various applications.
