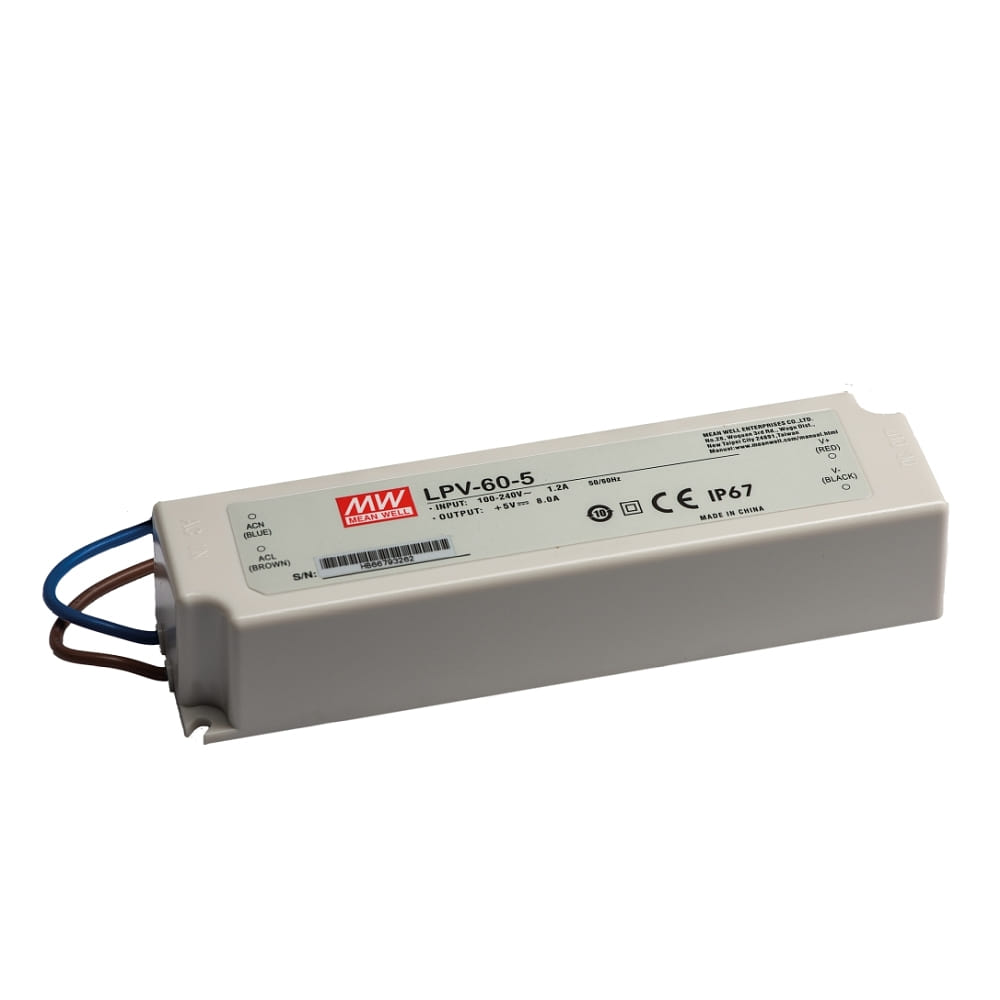

LED driver LP SERIES 5V DC / 40W voltage constant, switchable, white

Outdoor LED power supply LP series, IP67, 100-240V AC / sec. 5V DC, 40W, switchable

The outdoor LED power supply from the LP series by Rutec Projekt is a switchable MeanWell 5V constant voltage driver with a power of 40W. It features an IP67 protection against dust and temporary immersion, making it ideal for indoor and outdoor applications.

Technical data and features

The operating voltage of the LED driver is 100-240V~, with a mains frequency of 50/60Hz. The device has a protection class of 2 and an IP protection rating of IP67. It is suitable for LED lamps and luminaires of protection class II (SK2) and provides protection against short circuit, overload, and overvoltage.

Compact size and high reliability

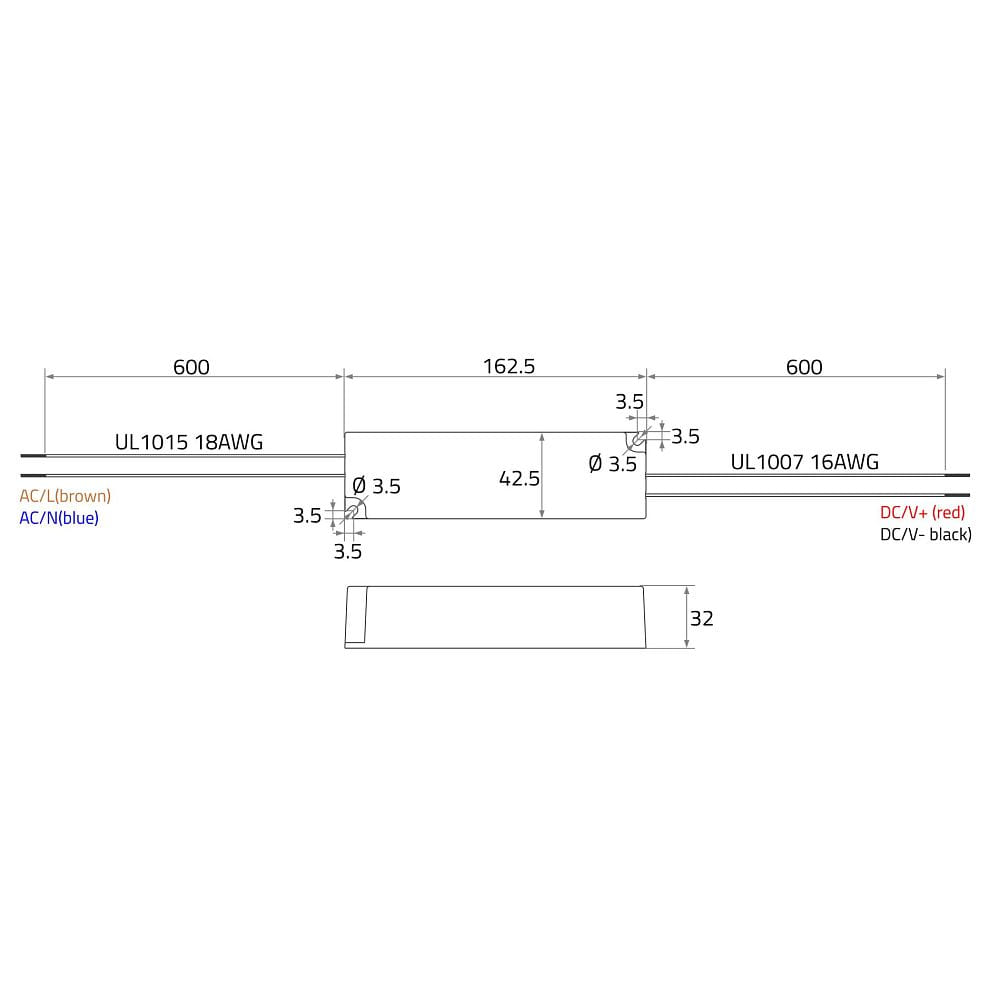

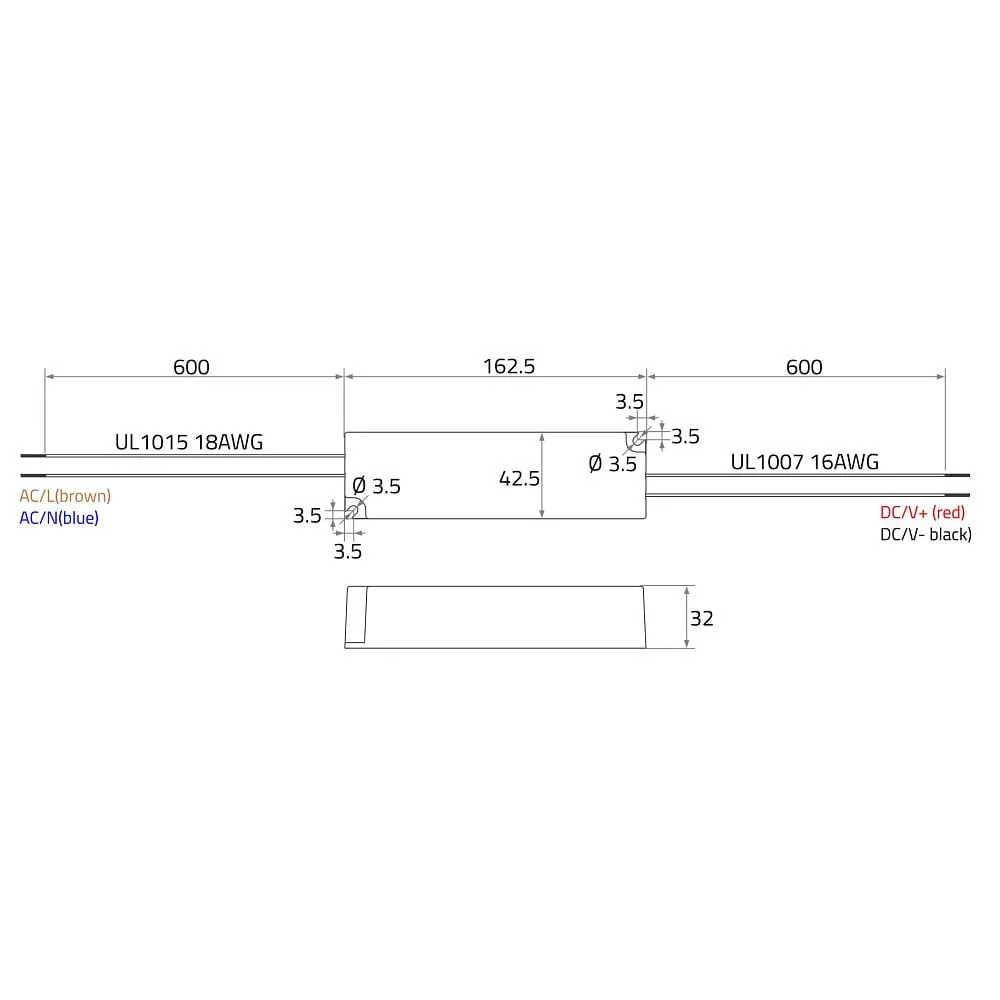

The LED power supply has dimensions of 16.25 x 4.25 x 3.2 cm and features input and output leads on both the primary and secondary sides. With an input of 90 to 264 V AC and an R&N of 120mV, the device offers high reliability.

Versatile applications

Thanks to its wide ambient temperature range of -30°C to +70°C, the LED power supply can be used in various environments. It is suitable for both indoor and outdoor use, providing a flexible solution for different lighting applications.

Easy installation and safe use

The switchable outdoor LED power supply from the LP series is easy to install and ensures safe use for your LED lighting. With its robust design and comprehensive protection features, it is a reliable choice for your lighting projects.
