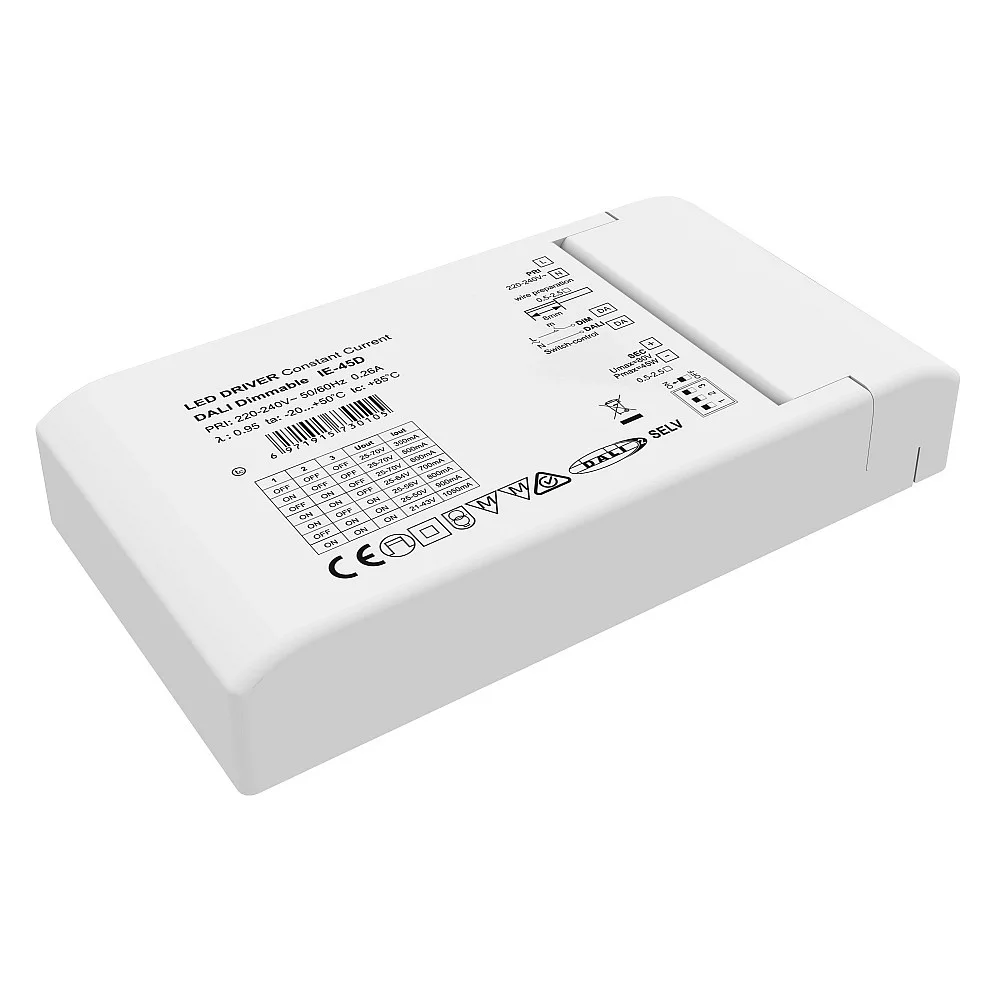

LED driver DALI2 45W 350-1050MA 21-70V DALI controllable, current constant, adjustable, white

High-Quality Constant Current LED Driver from MEGATRON

The constant current LED driver from MEGATRON provides a reliable and efficient power supply for LED lights. With an operating voltage of 220-240V AC and a power rating of 45W, this driver is ideal for a wide range of LED applications. Its white plastic housing protects the technical components and offers a modern design. Protection class 2 and IP20 rating ensure safe operation under normal conditions.

Flexible Adjustment and Dimming Function

This LED driver impresses with its versatile adjustment options. Via DIP switches, seven different constant current levels from 350mA to 1050mA can be set, allowing adaptation to various LED loads. Additionally, the driver supports DALI 2.0 controls as well as PUSH dimmers, enabling you to conveniently and precisely adjust the brightness of the connected LEDs. The DALI compatibility is backward compatible, facilitating easy integration into existing systems.

Long Service Life and High Efficiency

With an average lamp lifetime of 50,000 hours, the MEGATRON LED driver ensures long-lasting performance without frequent replacements. The power factor of over 0.9 indicates that the driver operates very efficiently, thereby saving energy. The mains frequency of 50/60Hz makes it compatible with common power grids worldwide. These technical features guarantee a stable and sustainable power supply for your LED applications.

Compact Design and Easy Installation

The LED driver measures only 13.5 x 7.2 x 2.4 cm and is specifically designed to be installed in 80 mm drill holes. This facilitates integration into various lamp housings and installation locations. The low weight and robust plastic construction make handling especially comfortable. Please note that the dimmer is not included and must be purchased separately.

Compatible with Modern Building Automation Systems

This LED driver is certified according to DALI 2.0 and is therefore perfectly suited for use in modern building automation systems. Its intelligent power adjustment to the load via DIP switches ensures optimal performance. Control via DALI allows easy integration into networked systems, significantly simplifying the control and monitoring of lighting installations. This way, you benefit from a future-proof and flexible solution for your LED lighting.
