LED CRI9R Linear ST10-Flex strip, 24V, 10W, IP20, red

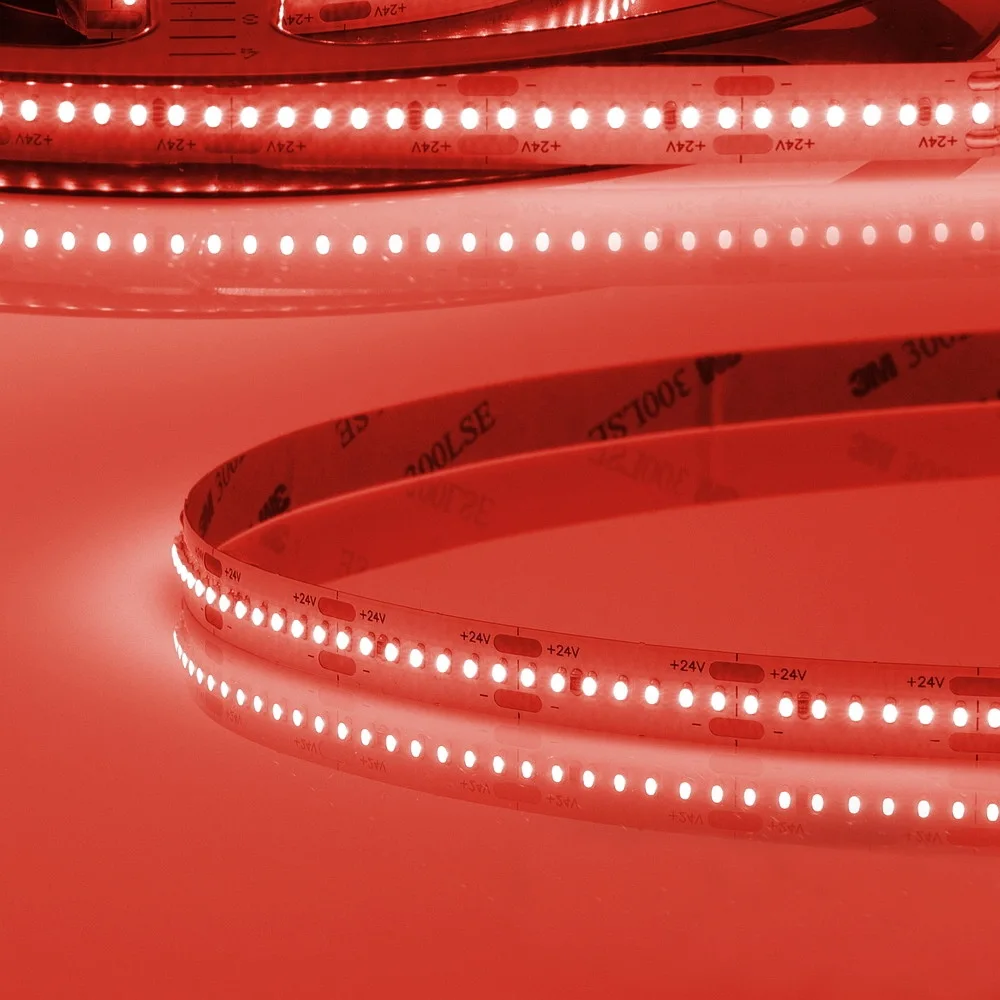

High-Quality LED CRI9R Linear ST10 Flex Strip in Red

The LED CRI9R Linear ST10 Flex Strip from ISOLED impresses with its intense red light color and excellent color rendering with an index of 90-100 Ra. With a power output of 10 watts per meter and a beam angle of 120°, this LED strip provides even and brilliant illumination. The color quality of the light source corresponds to grade 1A, meaning colors appear particularly natural and vivid.

Technical Details and Dimensions

The flex strip measures 500 cm in length, 1 cm in width, and 0.2 cm in height. It is divided into individual sections of 2.5 cm each, which can be easily separated and adjusted. The minimum bending radius is 2.5 cm, allowing the strip to be installed flexibly. The operating voltage is 24 volts DC, ensuring stable and safe power supply. The strip is self-adhesive, enabling quick and easy installation.

Power Consumption and Energy Efficiency

The LED strip has a power consumption of 75 watts over a total length of 5 meters, which corresponds to 15 watts per meter. It requires a voltage-controlled LED driver with an energy efficiency index (EEI) of A1 BAT, ensuring an energy-saving and efficient power supply. The high number of 280 LEDs per meter guarantees intense and even illumination along the entire strip.

Practical Accessories for Easy Installation

The delivery of the flex strip includes a connection set and an end cap, which facilitate installation and ensure a secure connection. The connection method is soldering, providing a stable and durable joint. The through-wiring allows easy connection of multiple strips to illuminate larger areas flexibly. A protective cap is not included but can be purchased separately.

Protection Rating and Applications

The LED CRI9R Linear ST10 Flex Strip has a protection rating of IP20, protecting it from dust and solid foreign objects. The flexible design and high quality of the LEDs make it an ideal solution for applications requiring precise and color-intensive lighting. Thanks to the combination of high color rendering and easy handling, this product offers versatile applications in various fields.
