FastFix LED linear system S Modul, IP40, 150cm, 1-10V dimmable, 25-75W 4000K, 10500lm 25° right

Modern LED Linear System with Efficient Lighting

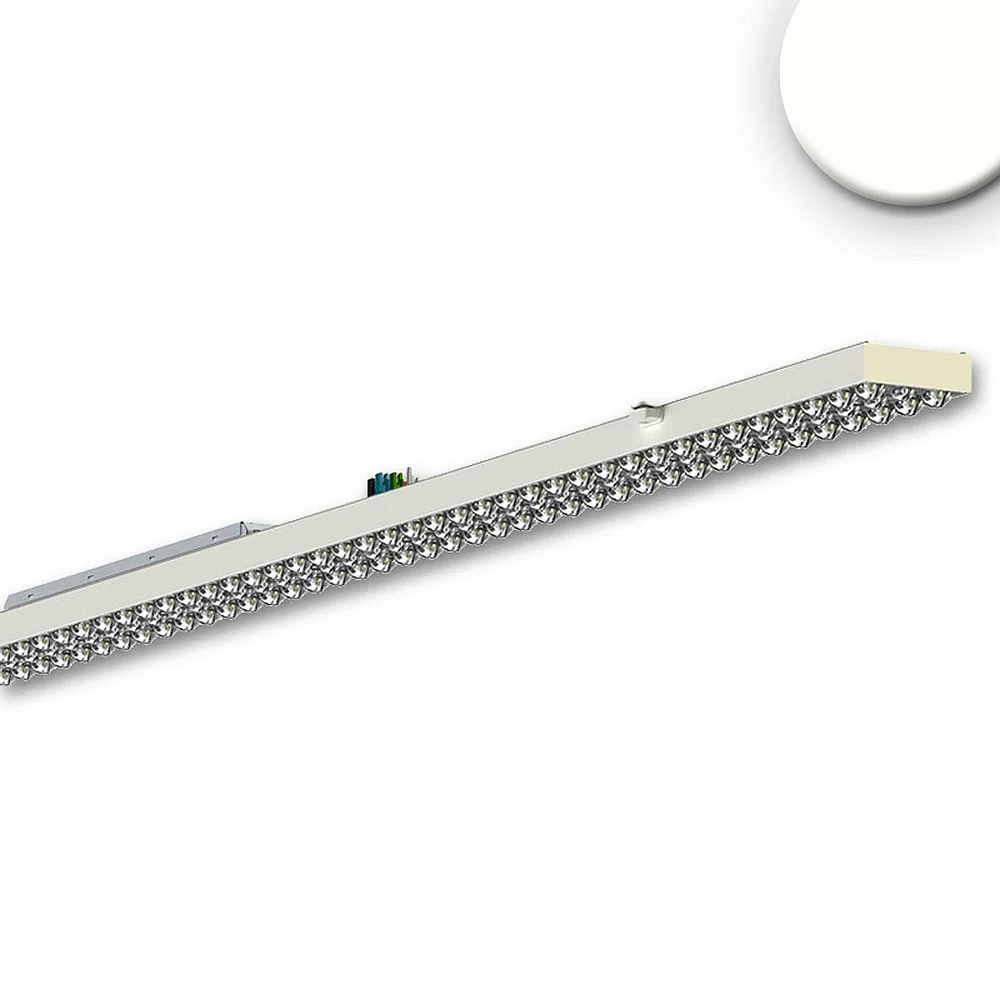

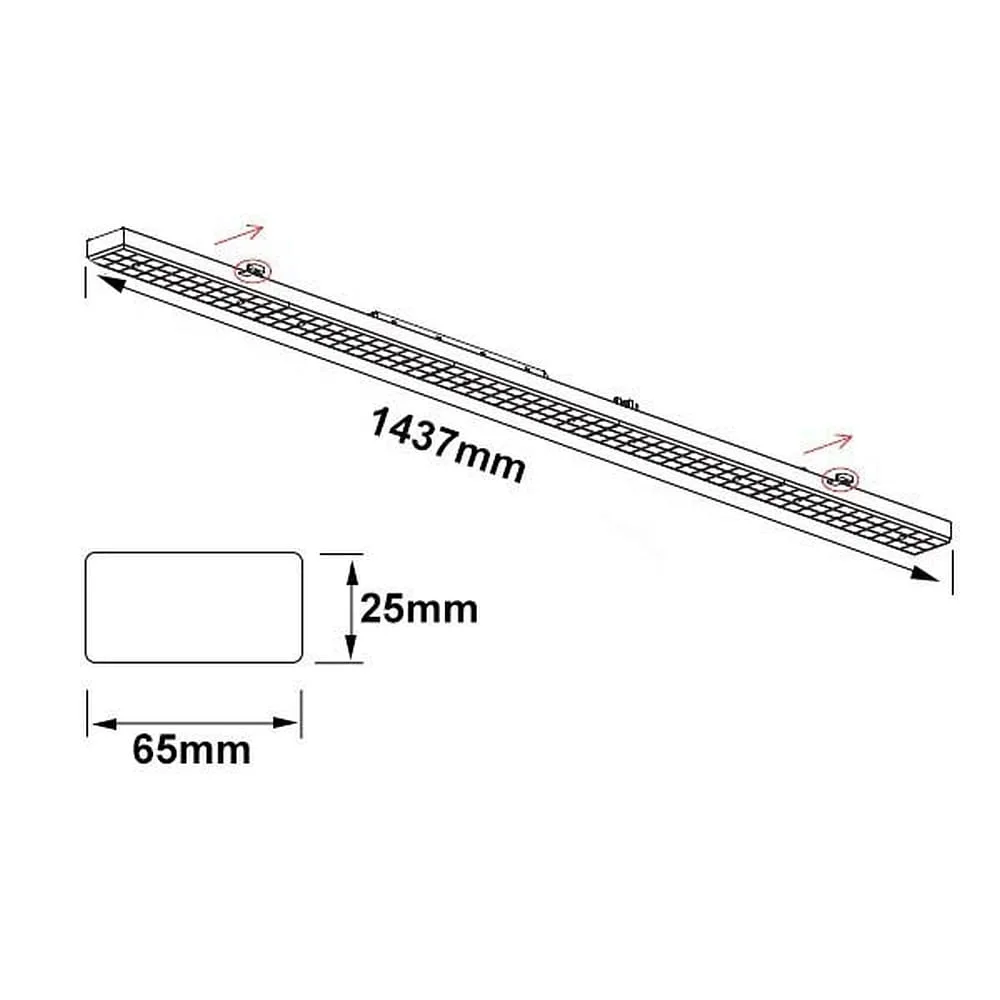

The FastFix LED linear system S module from ISOLED impresses with its high-quality craftsmanship and innovative technology. With a length of 150 cm and a slim design (143.7 x 6.5 x 3.7 cm), this luminaire offers an elegant and functional solution for many lighting requirements. The linear light is finished in classic white and features a rectangular shape that harmoniously integrates into various room concepts. The light color is neutral white at 4000 Kelvin, providing pleasant and natural illumination.

Powerful and Durable LED Technology

The luminaire is equipped with LED boards each containing 33 high-performance chips, achieving a total power of 75 watts and producing a luminous flux of 10,500 lumens. The average lifespan of the LEDs is an impressive 36,000 hours, ensuring long usage without frequent replacement. The LED module is firmly integrated and not replaceable, which guarantees a stable and reliable light source. The color quality is specified with a color rendering index of 80-89 Ra, ensuring natural color reproduction.

Individually Dimmable and Easy to Control

A special highlight is the stepless dimming function, which is enabled via a 1-10V control signal. Additionally, the output can be permanently adjusted via jumper settings on the power supply located on the rear side. This offers maximum flexibility to adapt light intensity to various needs. The luminaire is equipped with through-wiring and an eight-pole plug terminal, ensuring safe and straightforward installation. The power factor of 0.93 also ensures efficient energy use.

Robust Construction and Easy Installation

The housing of the luminaire is made of high-quality steel and protected against dust ingress with an IP40 rating. Installation can be done by surface mounting or within a rail system, with appropriate mounting accessories available separately. The quick locking mechanism facilitates fastening in the beam mount, ensuring a secure and stable installation. The product complies with protection class 1 and is designed for ceiling installation, also suitable for use with emergency lighting.

Efficient and Safe in Operation

The FastFix LED linear system is characterized by its high energy efficiency with an EEI of the power supply at A1 BAT. The operating voltage ranges from 180 to 265 volts, guaranteeing stable power supply. The luminaire features a focus lens with a beam angle of 25 degrees, distributing light asymmetrically and targeted to provide optimal illumination. Furthermore, the luminaire meets the glow-wire test according to IEC 60695-2-11 at 550 °C for 30 seconds, underlining its high safety in operation.
