dimmer Sys-One, white

Versatile Sys-One Wireless PWM Dimmer with Robust IP66 Protection

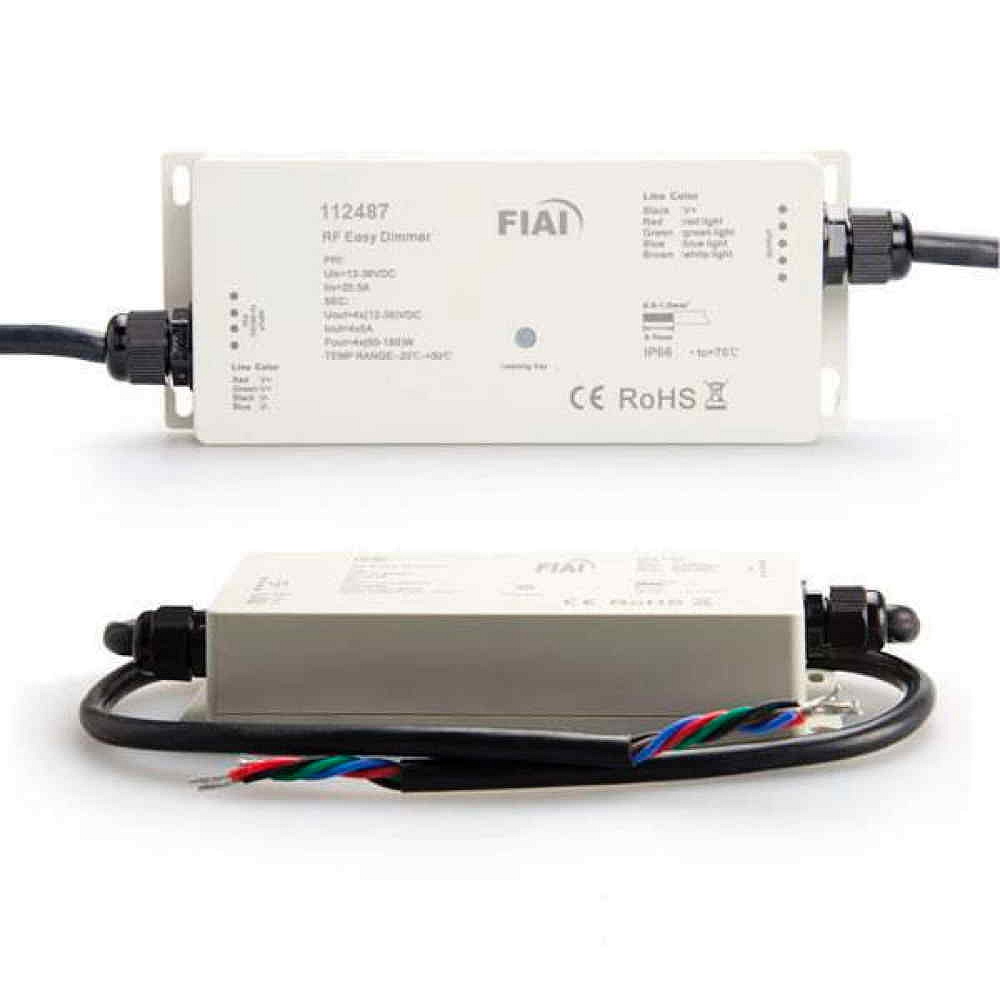

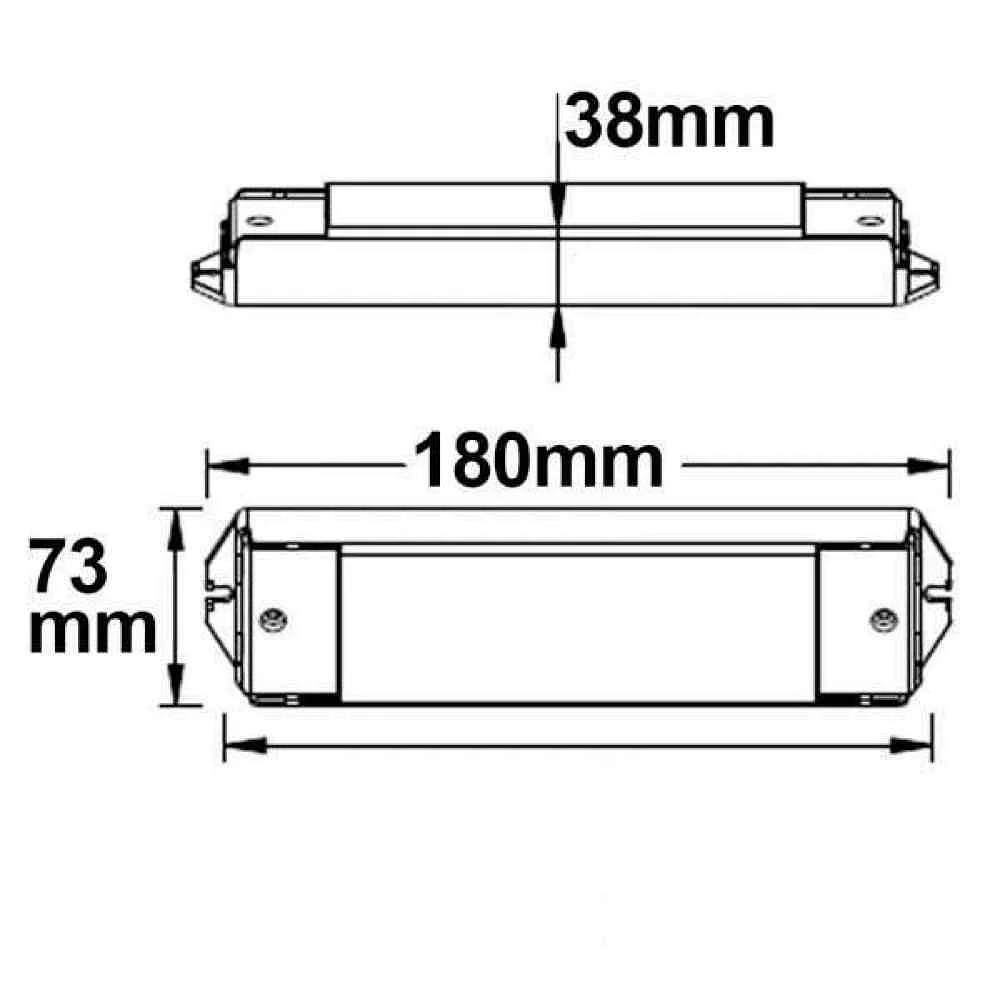

The Sys-One Wireless PWM Dimmer IP66 is a powerful 4-channel dimmer that operates with a supply voltage from 12 to 48 volts. With a compact size of 18 x 7.3 x 3.8 cm and a weight of only 0.14 kg, it is easy to install and flexible to use. The IP66 protection rating ensures high resistance against dust and water, making the dimmer especially durable and reliable.

Easy Control and Versatile Compatibility

The dimmer operates at frequencies of 434 MHz or 868 MHz and can be controlled by up to five different Sys-One controllers. This allows for flexible and user-friendly control. It supports single-color, RGB+W as well as white dynamic sequences, facilitating individual light design and creating atmospheric lighting.

Technical Details Made Simple

The dimmer features four channels, each capable of delivering up to 5 amperes at 12-36 volts or 2 amperes at 48 volts. This means multiple light sources or LED strips can be dimmed simultaneously and independently. The pulse width modulation (PWM) ensures smooth brightness control without flickering, which is comfortable for the eyes.

Reliable Programming and Easy Handling

Another advantage of the Sys-One Wireless PWM Dimmer is that programming is retained even after a power outage. This saves time and effort as no reconfiguration is necessary. Operation is conveniently done via compatible Sys-One controllers, which enable intuitive lighting control.

Durability and Optimal Temperature Range

The dimmer is designed for temperatures from -20 to 50 degrees Celsius, offering high operational reliability. The robust construction and IP66 protection rating guarantee a long service life and reliable operation under various conditions. The device’s white color blends unobtrusively into different environments.
