dimmer KNX ACTOR 350MA voltage constant, 4 channel, KNX controllable, blue

KNX Actuator for 12-24V, 1-color/multicolor, 16.8-33.6W

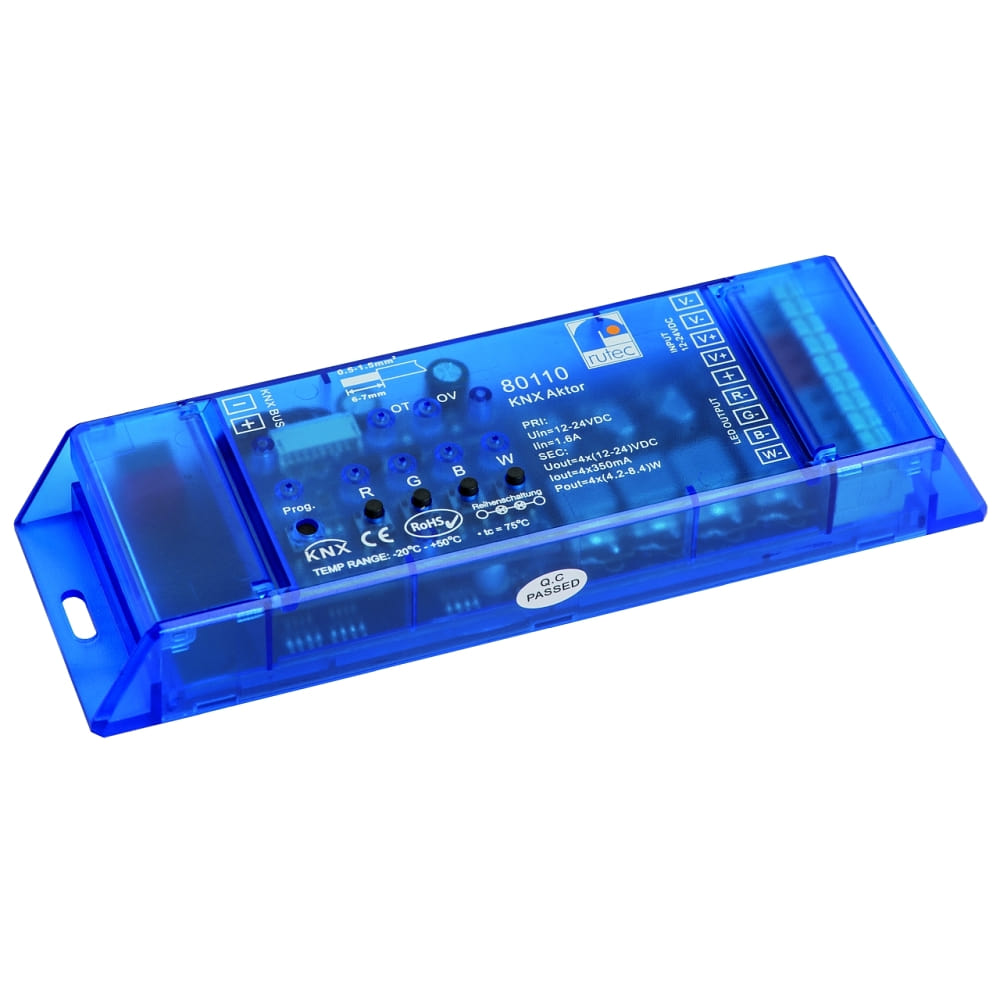

The KNX actuator from Rutec Projekt is a versatile dimmer suitable for an operating voltage of 12-24V. With a maximum power of 16.8-33.6W, this actuator offers the ability to control 1-color or multicolor lighting systems. It has 4 independent channels with 350mA per channel, allowing for precise lighting control.

Technical Details and Accessories

The article number for this KNX actuator is RUP-PHZ110. It is voltage constant and has 4 addresses for easy integration into your KNX system. The actuator is equipped with a maximum current load of 0.35A and can operate in a temperature range of -20 to +50 °C. A status LED is included as an accessory.

Easy Installation and Operation

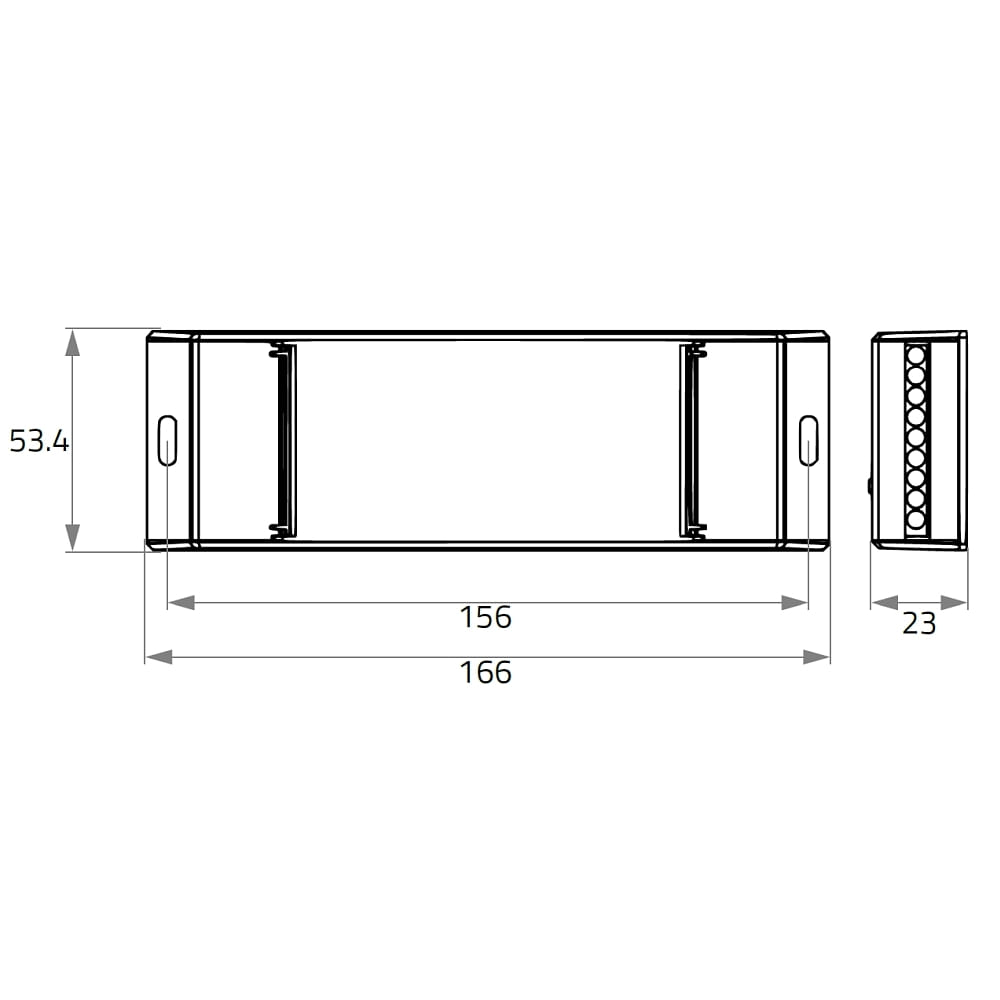

The KNX actuator from Rutec Projekt is connected to the power grid via a terminal and is suitable for indoor use with protection class 3 and IP20 protection rating. With dimensions of LxWxH: 16.6x5.34x2.3 cm, this dimmer is compact and can be easily integrated into your lighting system. Control is done via KNX sensors for reliable and precise dimming.

Flexibility and Power

With the KNX actuator from Rutec Projekt, you have the ability to customize the lighting in your space. The actuator offers 4 independent channels, each capable of handling 350mA. Settings can be adjusted either through the software or manually on the device. With a maximum power of 4x 4.2W at 12V or 4x 8.4W at 24V, this actuator offers high power for your lighting needs.

Additional Information and System Requirements

To fully utilize the KNX actuator from Rutec Projekt, it is recommended to use ETS 3.0F or higher. Further details and instructions can be found in the product datasheet. With this versatile actuator, you can control and customize your lighting to create the perfect atmosphere in your space.
