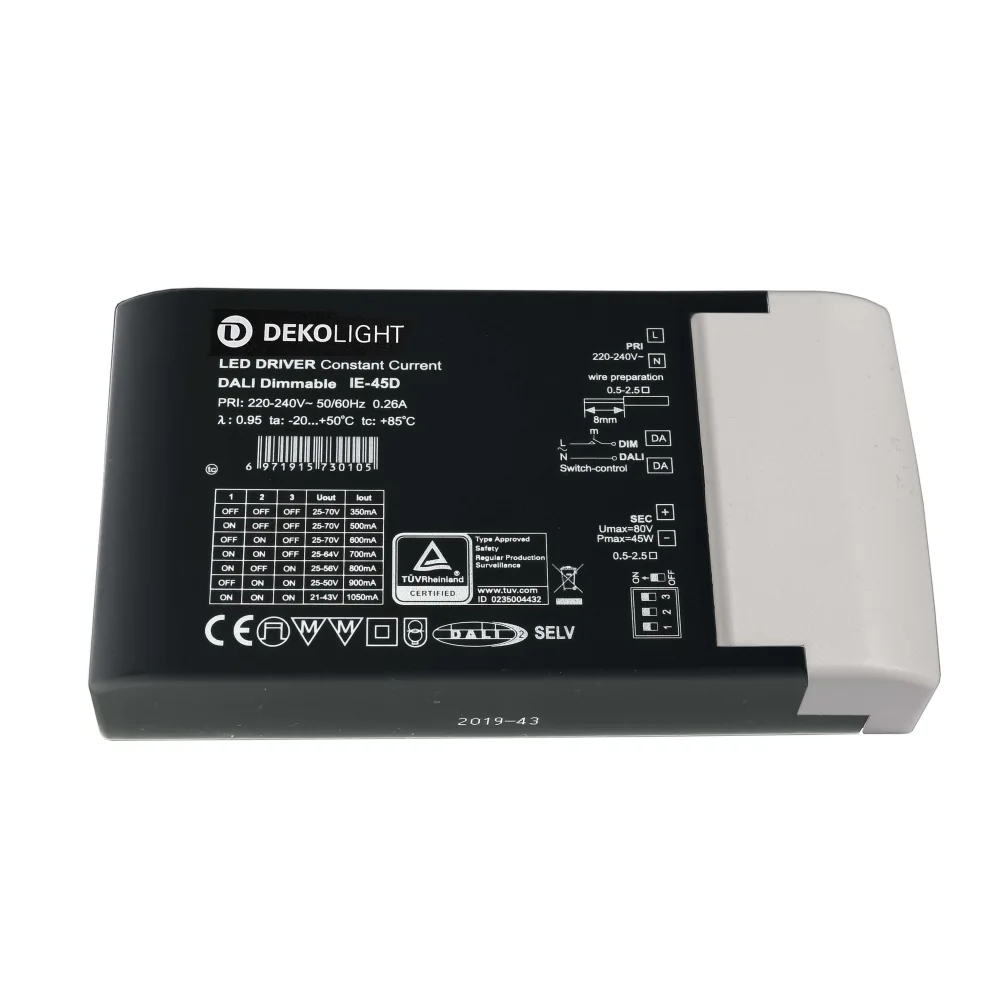

Deko-Light LED-power supply unit, BASIC, DIM, Multi CC, IE-45D, current constant, dimmable

High-Quality LED Power Supply from Deko-Light

The BASIC DIM Multi CC IE-45D power supply from Deko-Light impresses with its stable and reliable performance. It is specially designed for LED lighting systems and provides a constant current supply with an output voltage ranging from 25 to 70 volts DC. The operating voltage is between 220 and 240 volts, ensuring broad compatibility with common mains voltages. With a high power factor of 0.95, the device operates particularly efficiently and energy-saving.

Flexible Dimming Function and Easy Adjustment

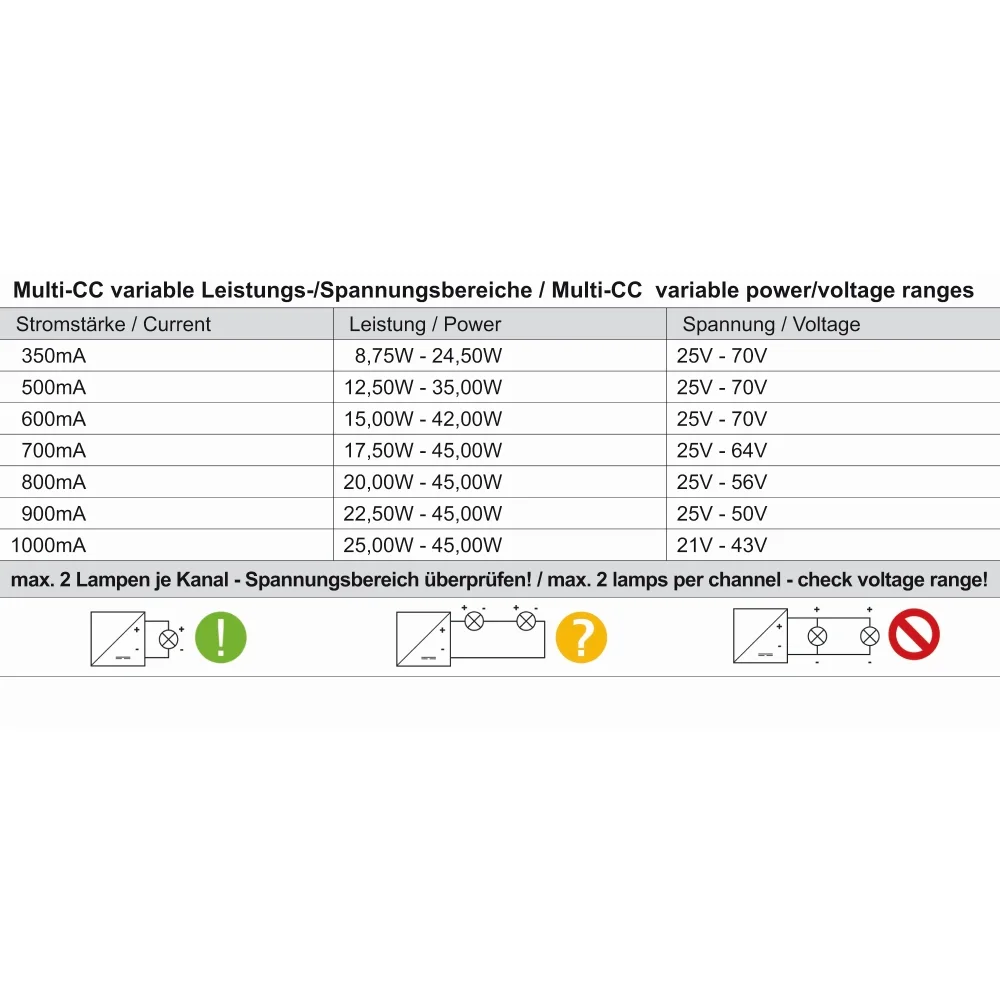

This power supply is dimmable via the DALI protocol, enabling precise control of light intensity. Additionally, the current can be conveniently adjusted using a DIP switch, allowing individual adaptation to various LED installations. Operation is also possible without external dimming control, making the device versatile. Flicker-free operation ensures comfortable light without flickering, protecting the eyes and guaranteeing uniform illumination.

Robust Design and High-Quality Materials

The power supply is available in black and gray and is made from durable materials such as ceramic and plastic. This combination ensures stable and secure construction. With compact dimensions of 7.5 cm width, 3 cm height, and 13.5 cm depth, the device can be installed space-savingly. Protection class 2 and IP20 rating provide reliable protection against contact and dust, enhancing operational safety.

Technical Performance Data and Safety

The LED power supply operates at a mains frequency of 50 to 60 Hz and has a power consumption of 8.75 to 45 watts. The maximum inrush current is 55 amperes within 100 microseconds, allowing for high load capacity at startup. The number of circuit breakers that can be used varies depending on the type: B10A up to 12, B16A up to 20, C10A up to 25, and C16A up to 40. These values ensure safe protection of the electrical installation.

Versatility and Easy Installation

The power supply features a terminal connection that allows straightforward wiring. Weighing only 188 grams, it is easy to handle and install. The ambient temperature range from -20 to +50 degrees Celsius guarantees reliable operation even under varying conditions. With protection class 2 and its technical features, the Deko-Light BASIC DIM Multi CC IE-45D is an ideal solution for professional LED lighting systems.
