DALI dimmer OLED DALI-2 PUSH DIM DT8 / DC / 350MA / MASTER RGBW PWM 2 channel, 4 channel, 3 channel, blue

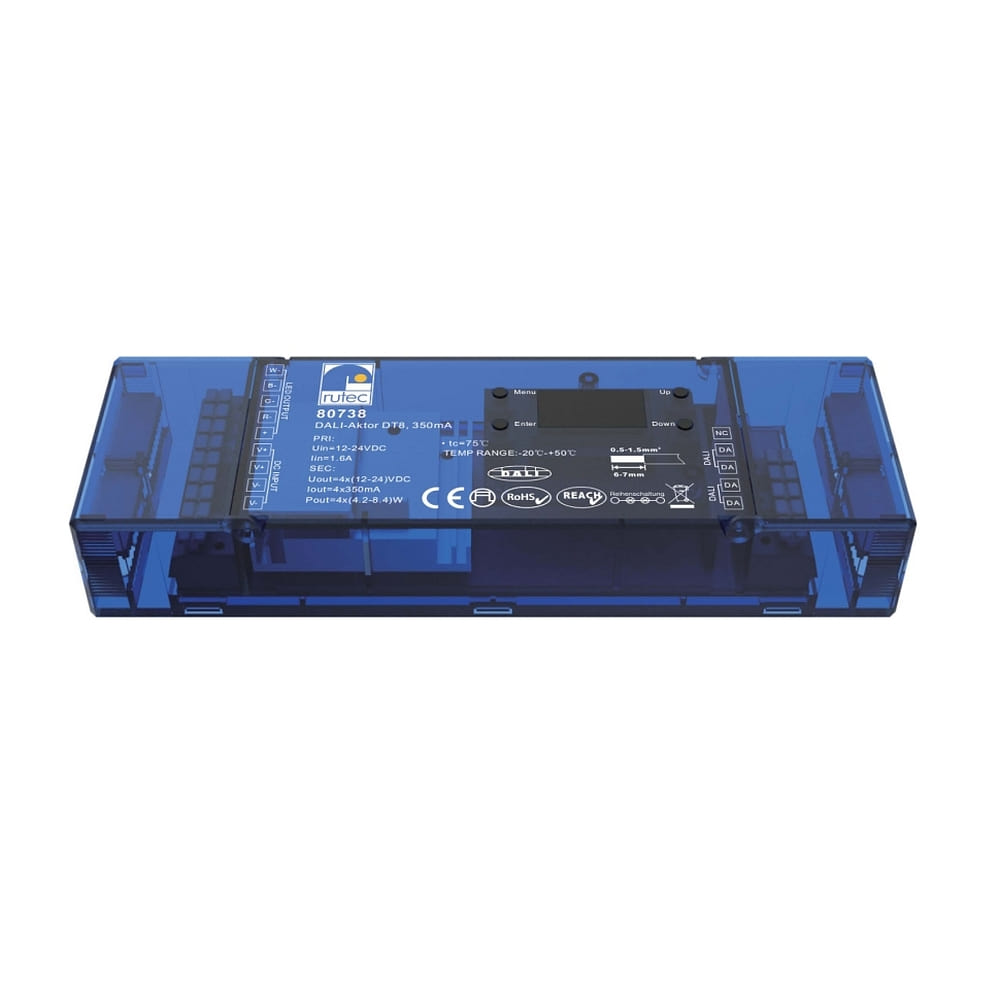

Rutec Projekt DALI Dimming Actuator DT8

The DALI Dimming Actuator DT8 from Rutec Projekt is a versatile dimmer designed for a maximum current load of 0.35A. With an operating voltage of 12-24V= and a protection class 3, this dimming actuator is ideal for various applications.

Integrated DALI Master Function

Thanks to the integrated DALI Master function, this dimming actuator allows for easy control via a single DALI address. The OLED display facilitates installation and provides a user-friendly interface.

Multi-Color 4-Channel Dimmer

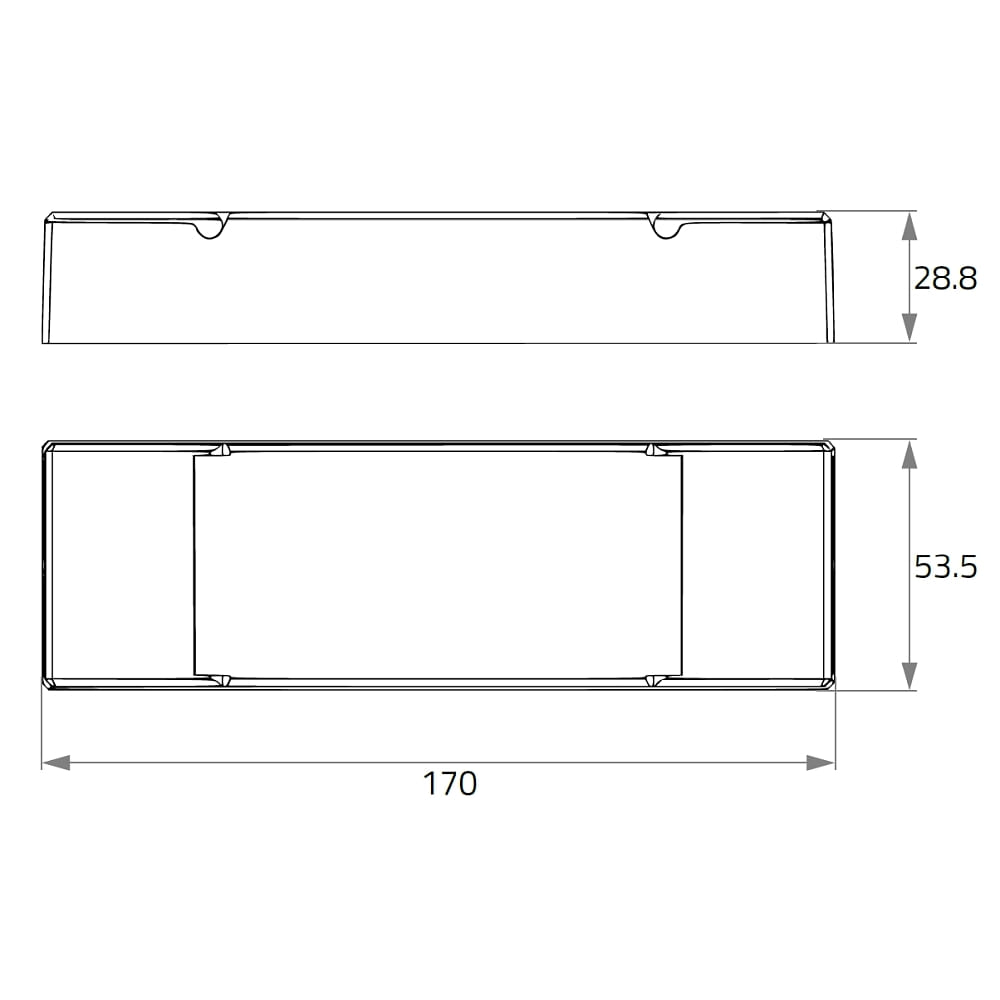

The DALI Dimming Actuator DT8 features 4-channel PWM outputs and supports all DT8 color types such as XY, Tc, and RGBW. With dimensions of 17 x 5.35 x 2.88 cm, this dimmer offers a compact solution for individual lighting scenarios.

Accessories Included

The DALI Dimming Actuator DT8 comes with a display with LED indicators and a controller. The power connection is made via terminals, allowing for easy installation. With an IP protection rating of IP20, this dimmer is suitable for use in various environments.

Powerful Lighting Control

Maximum power of 4x 4.2W at 12V and 4x 8.4W at 24V make the DALI Dimming Actuator DT8 a powerful solution for lighting system control. For more details, refer to the product datasheet or manual.
