DALI dimmer DC DALI-2 DT6 12/24V MULTI COULOUR 4 channel, programmable, blue

Efficient control with the DALI-2 DT6 Push Dimm Actuator

The DALI-2 DT6 Push Dimm Actuator from Rutec Projekt offers reliable and efficient control for your lighting systems. With an operating voltage of 12-24V and a max. current rating of 20A, this actuator ensures precise regulation of the brightness of your lighting.

Versatile application possibilities

Thanks to its versatile features, the DALI-2 DT6 Push Dimm Actuator is suitable for a wide range of applications. With 1-4 addresses and 1-4 channels, this actuator provides the flexibility to individually control different lighting scenarios.

Easy handling and configuration

Due to the manual setting of the DALI address and the visible display via digital display, the configuration of the actuator is simple and user-friendly. In addition, the actuator can be automatically addressed by the master according to the DALI standard protocol IEC62386 and has a convenient push-dim function.

Compact design and high performance

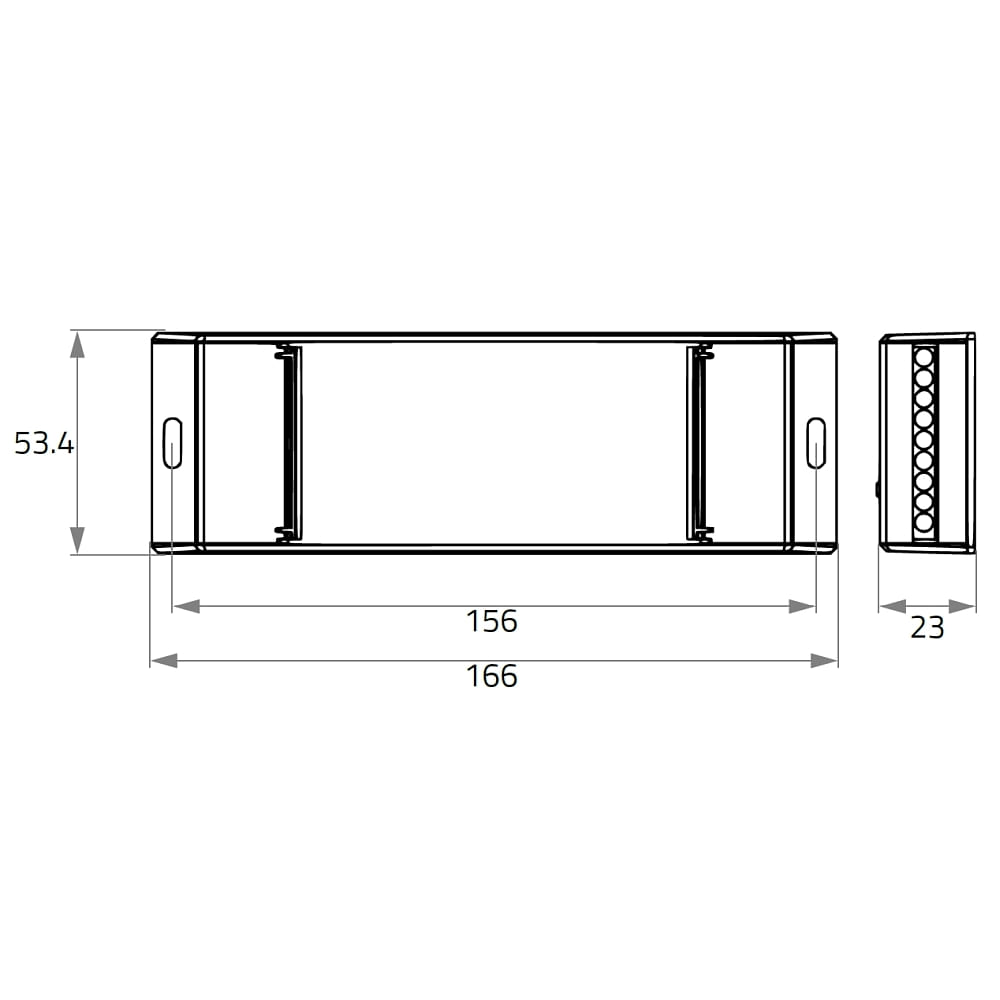

With a size of 16.6 x 5.34 x 2.3 cm and an IP protection rating of IP20, the DALI-2 DT6 Push Dimm Actuator is compact and easy to install. Despite its small size, the actuator offers a maximum power of 4x 60W at 12V or 4x 120W at 24V, ensuring excellent performance.

Perfect complement for your lighting system

With the DALI-2 DT6 Push Dimm Actuator from Rutec Projekt, you receive a high-quality product that is perfect for controlling your lighting systems. Trust in the proven quality and reliability of this actuator for optimal lighting in your spaces.
