DALI dimmer DALI-2 PUSH DIM DT6 / DC REG / 12-24V / MULTI COLOUR 4 channel, blue
Rutec Projekt
133,76 EUR
Free of shipping costs within Germany, abroad excl. Shipping costs / incl. 19 % VAT
RRP (manufacturer): 135,66 EUR
Price below RRP
Shipping time: 7-10 days
Product no.: RUP-PHZ775-V2
EAN: 4251835808750
In stock: 50

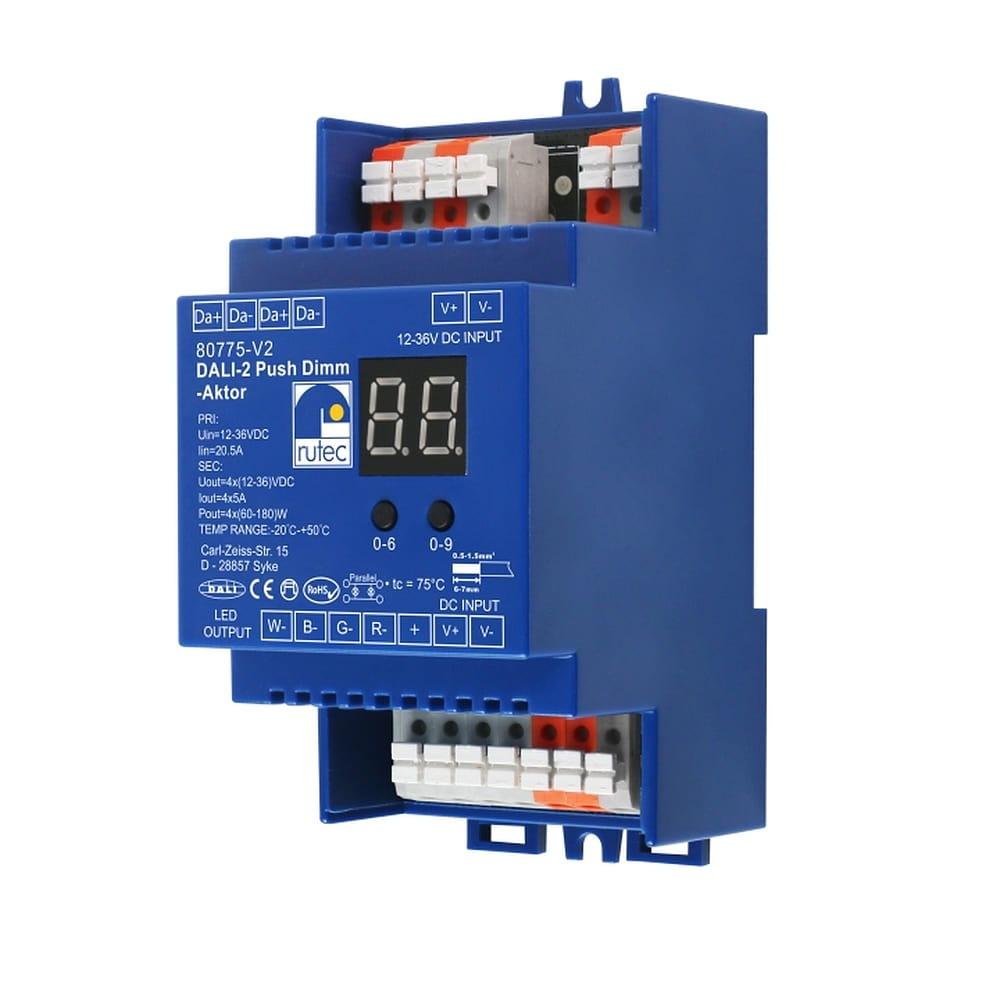

Rutec Projekt DALI-2 Push Dimming Actuator for 12/24V
The DALI-2 Push Dimming Actuator from Rutec Projekt is a high-quality dimmer for use in control cabinets. It is perfect for digitally dimming LED lighting with smooth control behavior.
Technical Data and Functions
The dimming actuator has 1-4 addresses and 1-4 channels, which are manually adjustable and visible on the digital display. It is automatically addressable according to the DALI standard protocol IEC62386 and has a push-dim function.
Maximum Power and Compatibility
The DALI-2 Push Dimming Actuator has a maximum current capacity of 20A and can be operated with a supply voltage of 12-24V. It is suitable for a maximum power of 4x 60W at 12V or 4x 120W at 24V.
Installation and Connection
The dimming actuator is connected via terminals and can be used for DIN rail mounting. It has an IP protection rating of IP20 and complies with protection class 3.
Accessories and Additional Information
The accessories for the dimming actuator include a display/LED indicator and a controller. For more details about the product, refer to the datasheet and manual.
controller - not included in delivery
rutec Projekt GmbH, Carl-Zeiss-Str. 15, 28857, Syke, Germany, info@rutecprojekt.de
