converter DC JOLLY US (AM), white

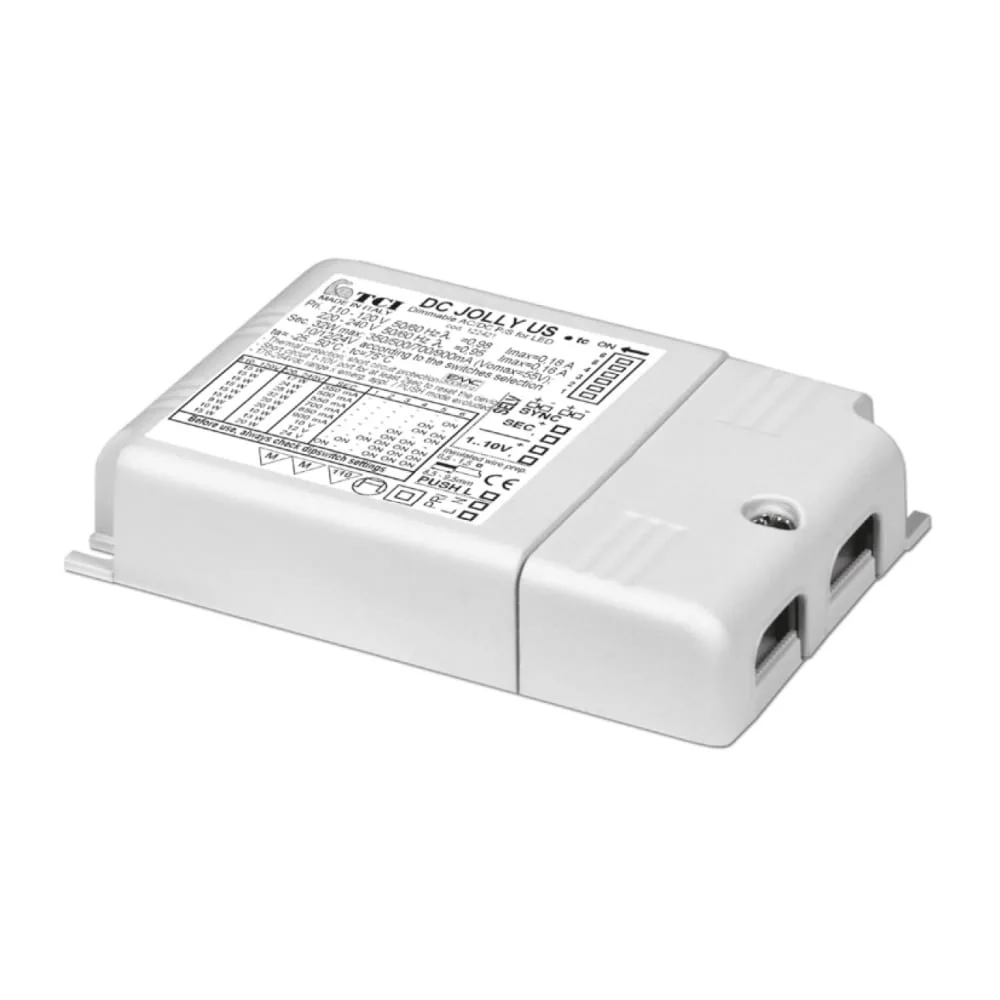

Multi LED Converter DC JOLLY US (AM), 32W, 350-700mA, dimmable - DALI AM

The Multi LED Converter DC JOLLY US (AM) is a versatile converter with a power consumption of 32W and a rated current of 250-900mA. It is dimmable via the DALI / AM system, which allows for amplitude modulation for analog dimming. This converter is ideal for indoor use and can be safely operated with overload protection, overvoltage protection, overheat protection, and short circuit protection.

Article Number and EAN

The article number of the Multi LED Converter DC JOLLY US (AM) is TCI-151421 and the EAN is 8010703383333. With an operating voltage of 220-240V~ and a size of 10.3 x 6.7 x 2.1 cm, this converter fits easily into various installations. The white color and weight of 0.12kg make it a discreet yet powerful component.

Technical Details and Features

The ambient temperature for operating the converter ranges from -25° to +45°C, with the housing temperature able to reach a maximum of 75°C. The Multi LED Converter DC JOLLY US (AM) is flicker-free and has input and output terminals on the same side for easy installation. The current regulation is plus/minus 5% and the terminal screws are suitable for cables with a diameter of 3mm to 8mm.

Installation and Application

The installation opening of the converter has a circular diameter of 7.2cm, allowing for easy integration into existing lighting systems. With an IP protection rating of IP20, the converter is protected against dust and contact. Thanks to the option to fix the driver with screws, it can be safely and stably installed.

Additional Information

The Multi LED Converter DC JOLLY US (AM) is sold individually and designed for indoor use. It provides reliable and efficient power supply for LED lighting and ensures consistent performance under various conditions. With the DALI / AM dimming system, you can adjust the brightness of your lighting as needed and create a pleasant atmosphere.
