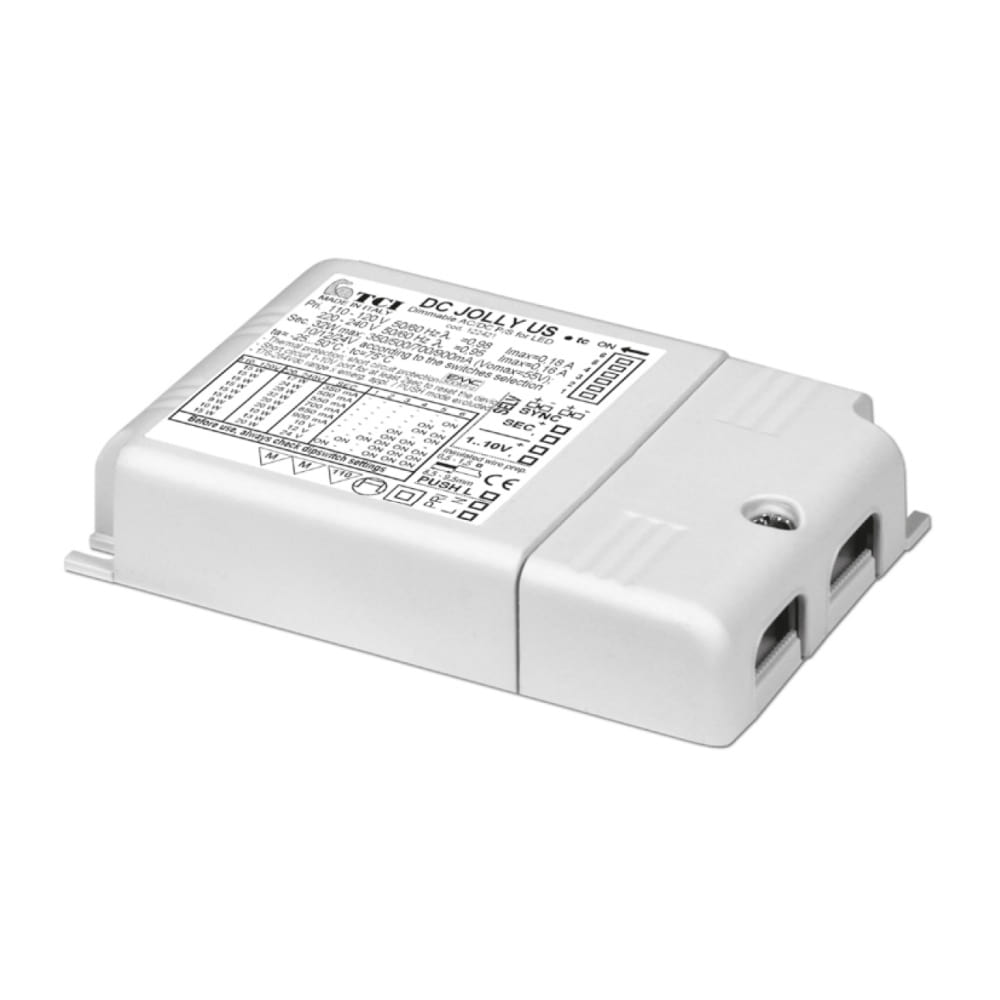

converter DC JOLLY US (AM), white

Efficient Performance and Technical Data

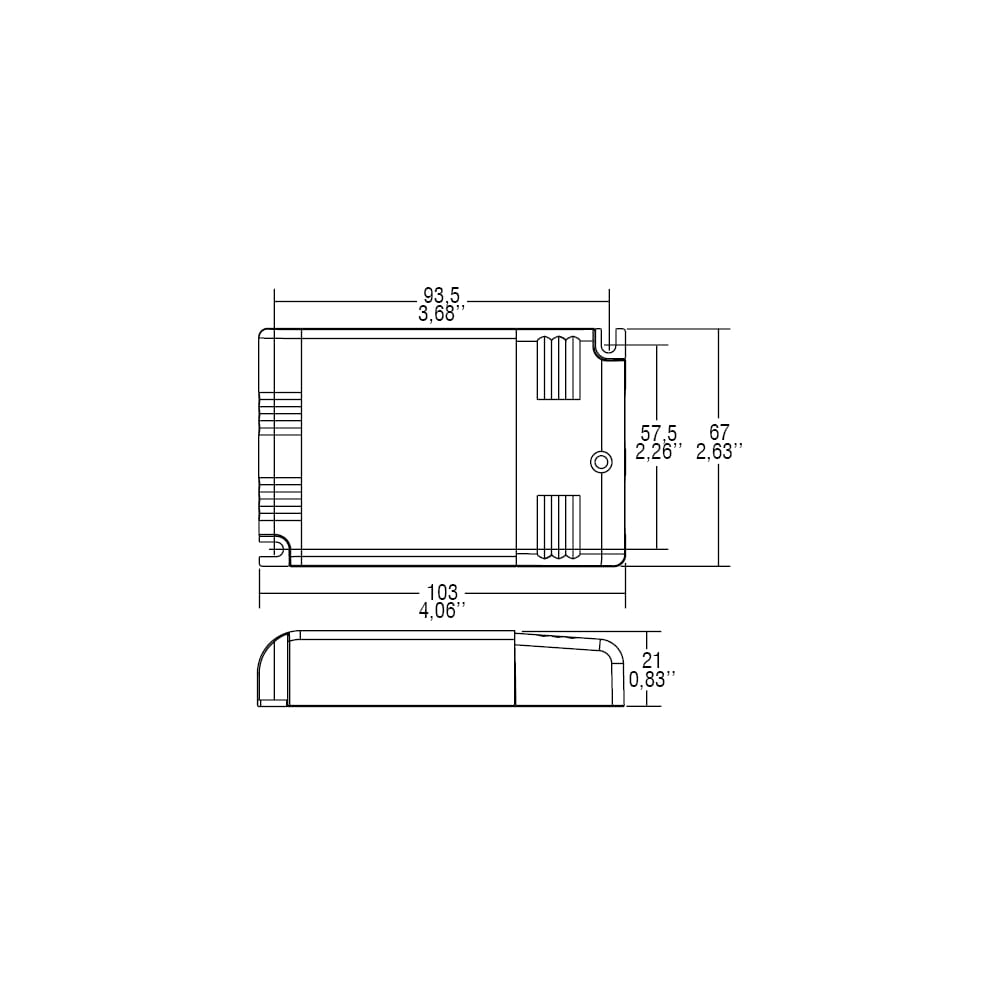

The Multi LED Converter DC JOLLY US (AM) from TCI offers a stable power consumption of 32W at an operating voltage of 220-240V~ and a mains frequency of 50-60Hz. With an ambient temperature range from -25° to +45°C, it is designed for various applications. The compact housing measures 10.3 x 6.7 x 2.1 cm and is finished in elegant white, allowing for unobtrusive integration. The low weight of only 0.12 kg facilitates installation and handling.

Flexible Dimming Thanks to DALI and AM Technology

The converter supports DALI dimming as well as analog dimming via amplitude modulation (AM). These features enable precise and stepless brightness control that can easily be adapted to different lighting requirements. The combination of these technologies ensures flicker-free light output, which is especially gentle on the eyes and pleasant.

Extensive Protection Mechanisms for Maximum Safety

Equipped with multiple protective functions, the LED converter ensures safe operation. It features overload, overvoltage, overheating, and short-circuit protection. These mechanisms prevent damage to the device and provide additional protection for connected LEDs. The housing temperature remains at a maximum of 75°C, guaranteeing long service life and high reliability.

Practical Mounting and Connection Options

Installation is simplified by the arrangement of input and output terminals on the same side. Clamping screws allow secure fastening of cables with a wire cross-section up to 1.5 mm² (AWG 13) and cable diameters from 3 to 8 mm. Additionally, the driver can be fixed with a slot for screws, ensuring stable and reliable mounting.

Precise Current Control and Protection Class

The converter's current control offers an accuracy of plus/minus 5%, including temperature fluctuations. This ensures constant performance and optimal functionality of the connected LEDs. Protection class 2 guarantees double protection against electric shock, making the converter particularly safe to use. With the IP20 protection rating, the device is protected against solid foreign objects larger than 12 mm.
