controller, white matt

Powerful PWM Controller for Versatile Applications

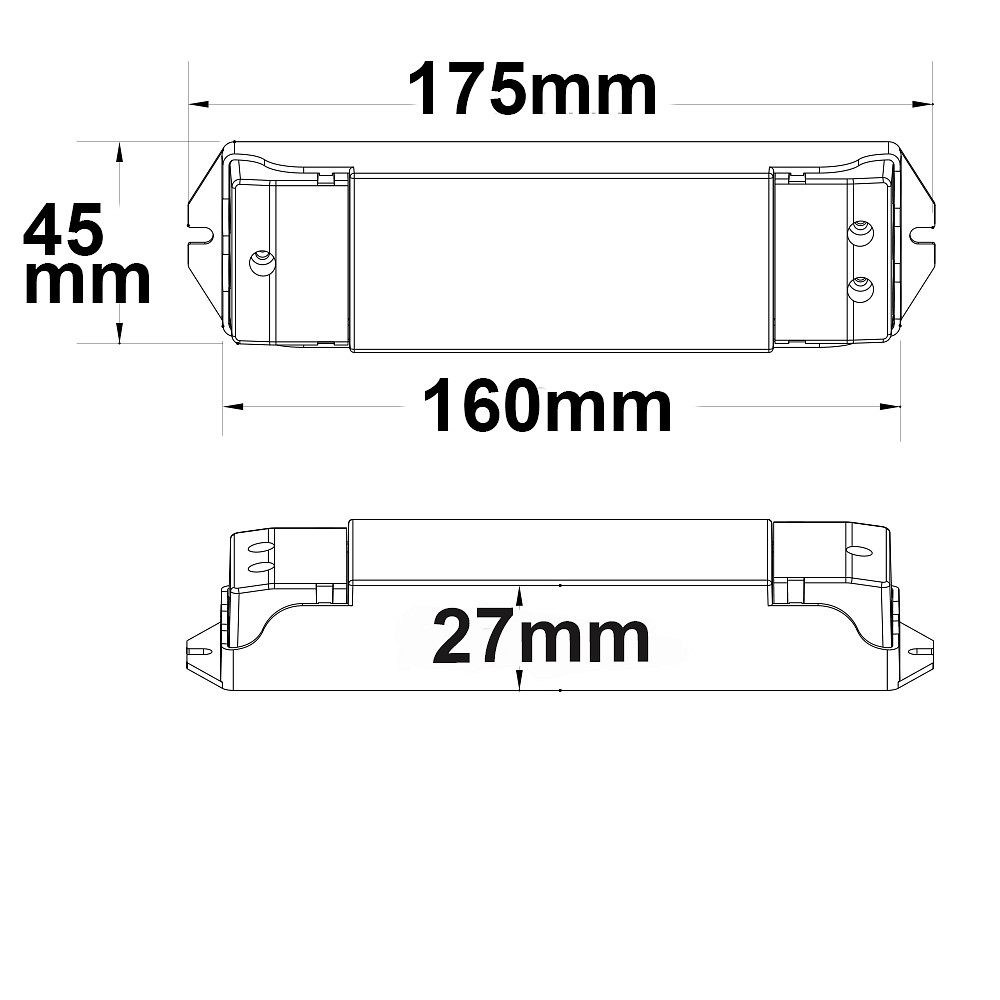

The ISOLED PWM controller offers flexible and efficient control of LED lighting with an operating voltage from 12 to 48 volts DC. With a maximum current of 15 amperes and an output power of up to 720 watts, this single-channel controller is ideal for a wide range of lighting requirements. The compact design measuring 17.5 x 4.5 x 2.7 cm allows for easy integration into various installations.

Simple Control via Leading-Edge and Trailing-Edge Dimmers

Control is achieved through an incoming AC voltage signal from 40 to 230 volts AC, modulated by leading-edge or trailing-edge dimmers. This technique allows precise adjustment of the brightness of the connected LEDs. Thanks to PWM pulse-width modulation at a frequency of 500 Hz, flicker-free and uniform light control is ensured, which enhances visual comfort and extends the lifespan of the LEDs.

Compatibility with Various Control Elements

The controller is equipped with an auxiliary input for normally closed push buttons, enabling the connection of push buttons, wireless switches, motion detectors, presence detectors, as well as timers or time switches. This allows the lighting control to be individually tailored to needs and operated flexibly. The combination of these control options ensures comfortable and energy-efficient use.

Practical Additional Features for More Comfort

An integrated light value memory allows the last set brightness to be saved and restored after switching off. This function provides a pleasant user experience, as the lighting always starts at the desired setting. The versatile dimming options, including trailing-edge, leading-edge, and TRIAC control, offer additional comfort when adjusting light intensity.

Robust and Functional Design

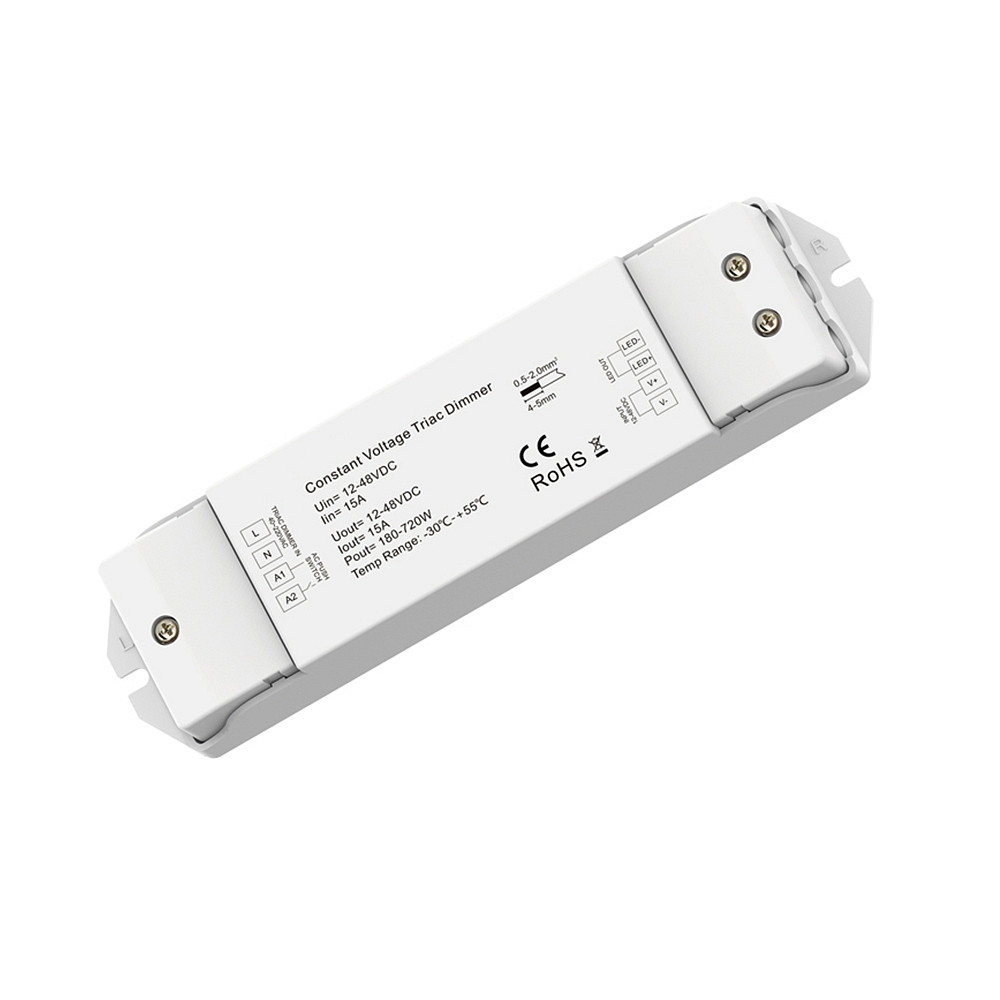

The controller is housed in a white, matte enclosure with an IP20 protection rating, reliably protecting it against dust and contact. The high-quality workmanship and robust technical components ensure a long service life and stable performance. Thus, the ISOLED PWM controller is a reliable solution for professional LED lighting projects.
