controller Sys-Pro, black

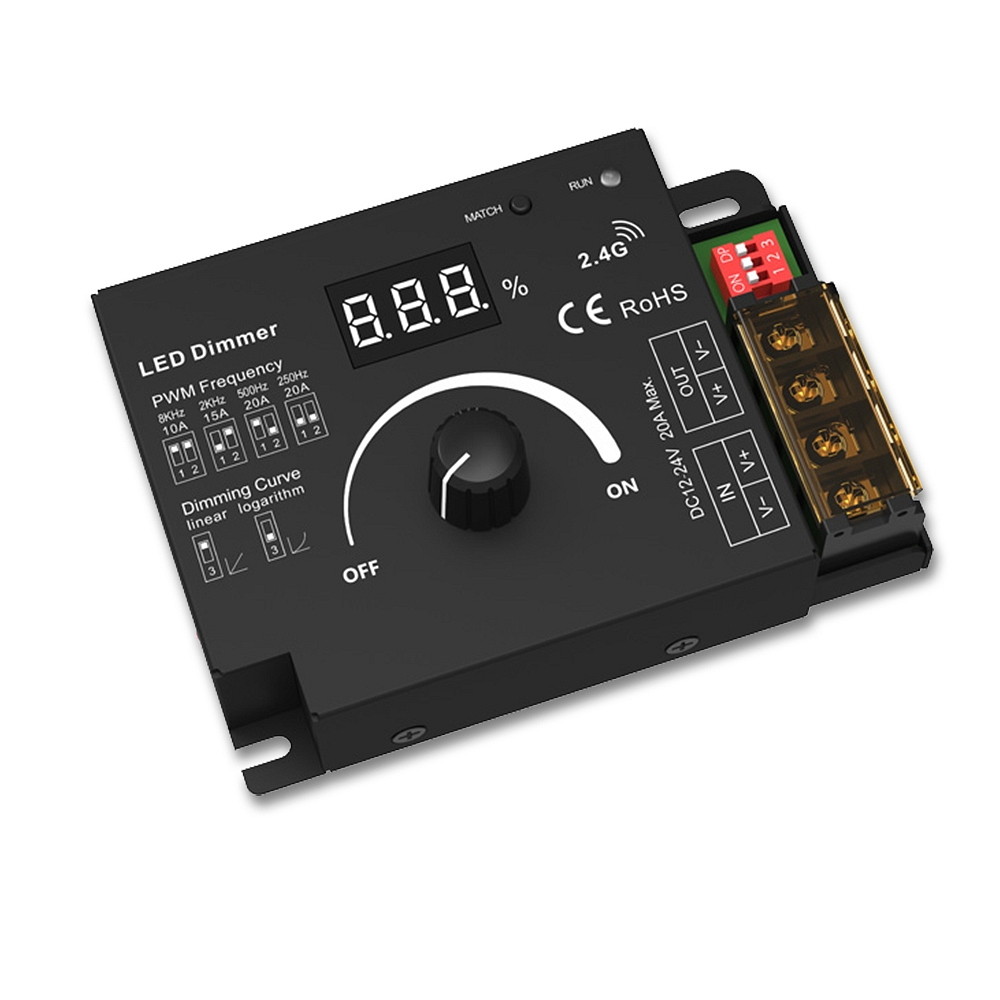

ISOLED Sys-Pro Rotary/Radio Mesh Multi-PWM Controller with Display

The ISOLED Sys-Pro Rotary/Radio Mesh Multi-PWM Controller with Display is a versatile controller for your lighting. With one channel and an operating voltage of 12-24V DC, you can control up to 240W / 480W of power. In elegant black, this controller fits in any room.

Technical Details

With a maximum current load capacity of 20A and overheating/overloading/short-circuit protection, the controller offers reliable power control. The PWM frequency is adjustable between 250Hz, 500Hz, 2kHz, and 8kHz to customize your lighting to your preferences.

Operation and Features

Thanks to the numerical display, you can clearly read the dimming level and smoothly dim from 0 to 100% without flickering. Choose between a logarithmic and a linear dimming curve for the perfect lighting. The controller has a light value memory and can be used with motion sensors, timers, and radio keys.

Installation and Application

The ISOLED Sys-Pro Controller is installed with surface mounting and has a range of 15 meters. With IP20 protection rating, it is suitable for indoor use and provides easy and flexible lighting control in any room.

Additional Information

This controller is ideal for controlling your lighting with remote control, PWM pulse width modulation, and switches. With high efficiency and various customization options, the ISOLED Sys-Pro is a reliable partner for your lighting projects.
