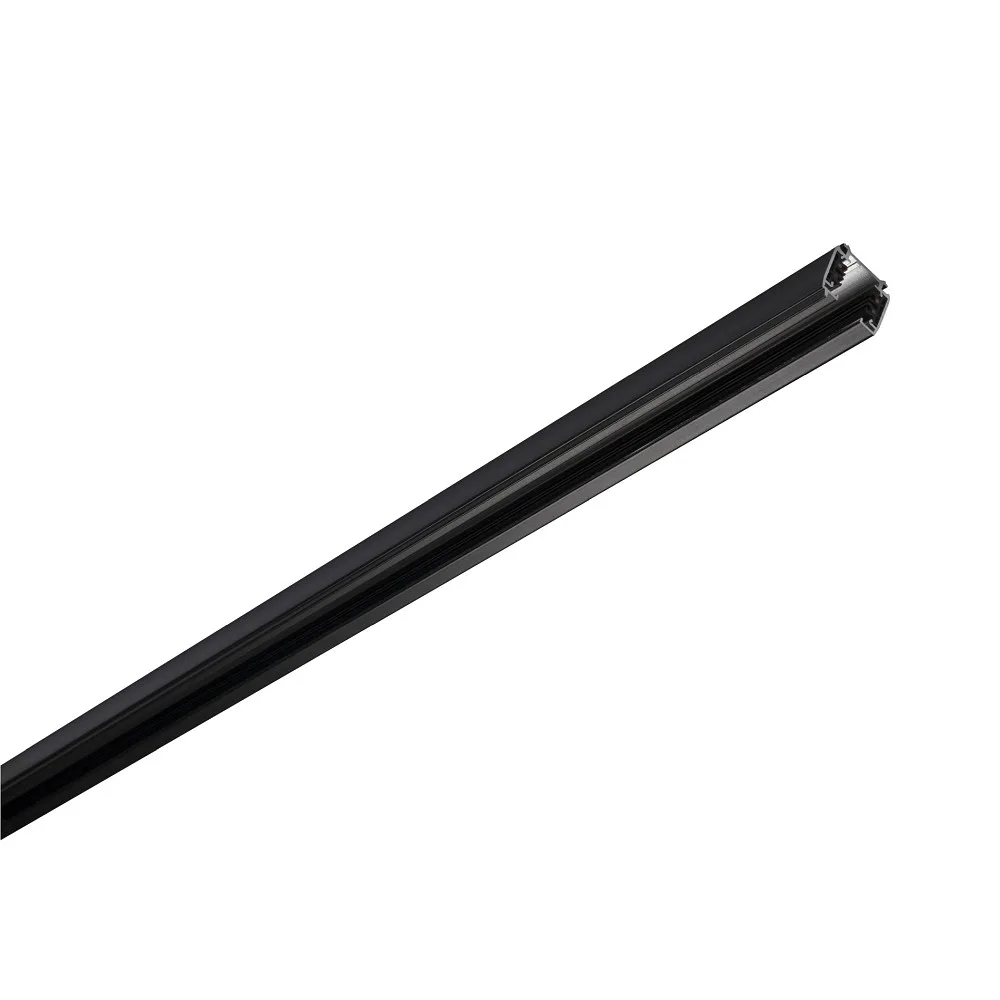

3-Phase surface track S-TRACK, 220-250V, 2m, black

Flexible 3-Phase HV Surface-Mounted Track System from SLV

The 3-phase HV surface-mounted track system S-TRACK ON/OFF from SLV offers a reliable solution for the flexible integration and positioning of luminaires. With a length of 200 cm and a robust construction made of aluminum, plastic, and copper, this power track is particularly lightweight and stable. The black color gives it a modern and discreet appearance that blends seamlessly into various environments.

Technical Details and Performance

The power track operates with a supply voltage of 220 to 250 volts and a mains frequency of 50/60 Hz. It is designed for a maximum current load of 16 amperes per phase, which corresponds to a maximum electrical power of 3680 watts. Protection class 1 and IP20 protection rating ensure safe operation under the intended conditions. Thanks to the high-quality copper conductors, optimal conductivity is guaranteed.

Easy Installation and Versatile Applications

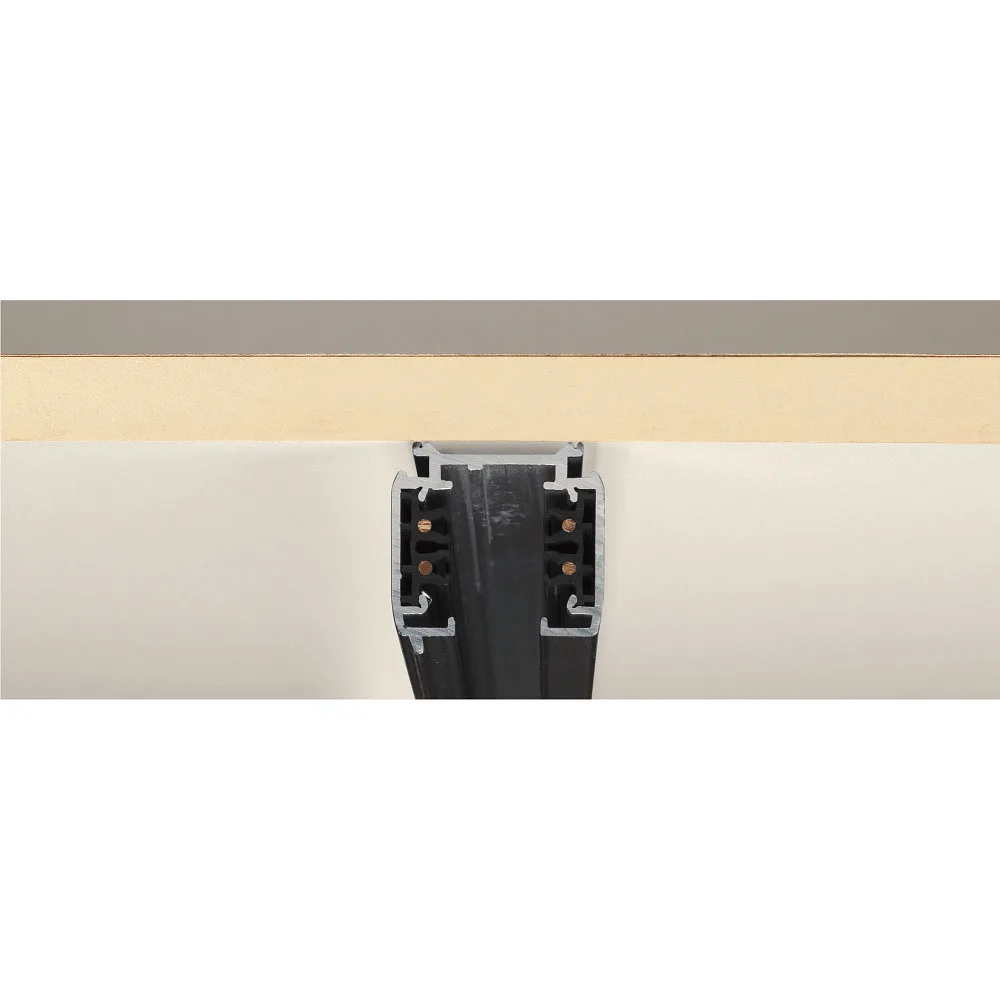

The installation of the 200 cm long surface-mounted track is straightforward and can be flexibly adapted to different conditions. The system is designed for surface mounting and can be cut to the desired length with a standard metal hacksaw. Additionally, the track can be extended with optional accessories such as suspension kits or connector plugs. These accessories are not included in the delivery but offer a variety of options for customized lighting solutions.

Practical Switching Function and Compatibility

The S-TRACK ON/OFF system is specially designed for switchable luminaires without integrated DALI signal lines. The simple ON/OFF switching function allows uncomplicated control of the connected luminaires. The power track features a feed-in adapter for mains connection, ensuring a secure connection to the power supply. End caps are also available separately to provide a neat finish to the system.

Versatile Accessories and Adaptability

The power track can be supplemented with additional accessories such as suspension kits, feed-in units, end caps, luminaires, and connector plugs to meet individual requirements. The option to use the system as a pendant track opens up further design possibilities. The product is also available in various lengths and in black and white colors to optimally suit the respective project.
