3-phase luminaire LINEAR PRO TILT swivelling, UGR < 19, switchable, multipower IP20, black

LED 3-phase luminaire LINEAR PRO TILT

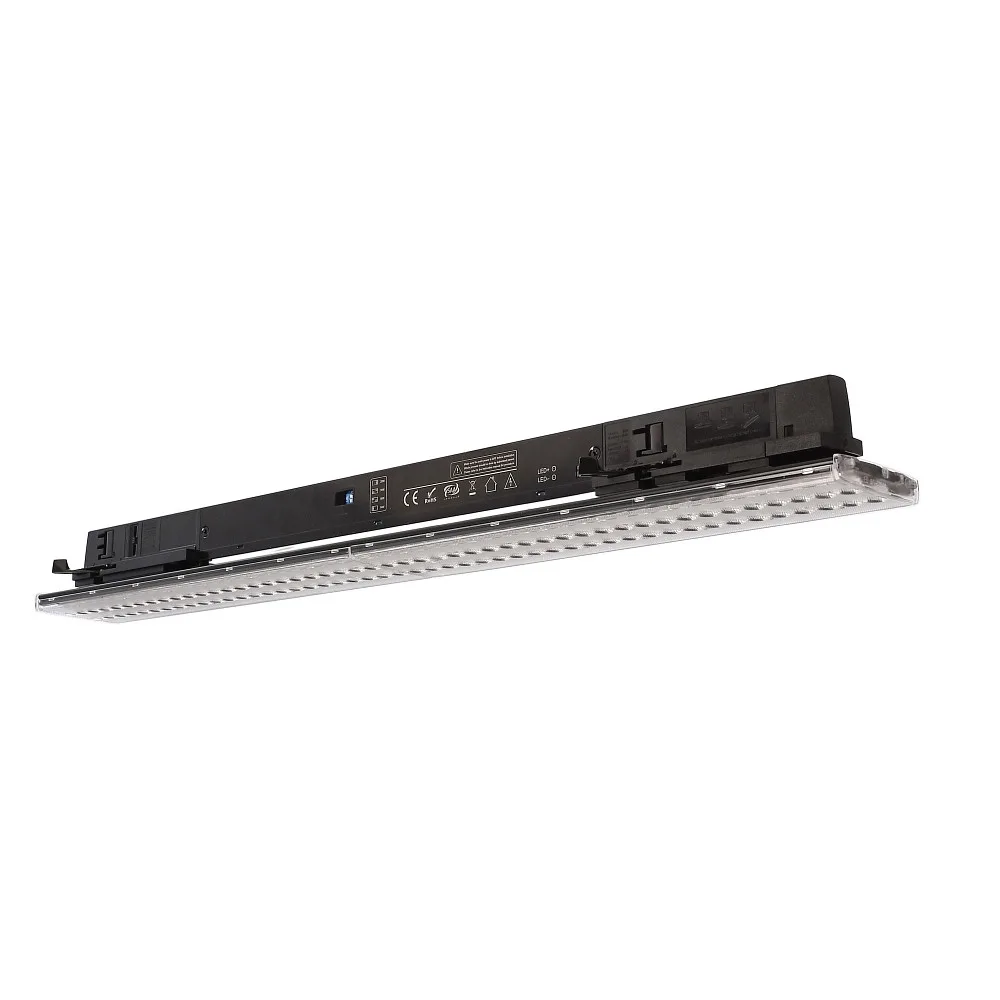

The LED 3-phase luminaire LINEAR PRO TILT is a tiltable linear luminaire with a length of 60 cm and a beam angle of 60°. With a color rendering index of over 90Ra and a UGR value of less than 19, it offers excellent light quality for use in retail shelves and sales aisles.

Technical details

The luminaire has a power consumption of 20W and a luminous flux of 3200lm, which corresponds to a light output of 160lm/W. It has 96 LED light sources that produce a warm white light color with a color temperature of 3000K. The tiltable design allows for flexible light alignment.

Energy efficiency and sustainability

With an energy efficiency class of B and an energy consumption of 20kWh/1,000 h, the LED 3-phase luminaire LINEAR PRO TILT is particularly energy efficient. The lifespan of the light sources is 60,000 hours, ensuring a long service life and low maintenance costs. In addition, the luminaire is eligible for BEG funding.

Installation and application

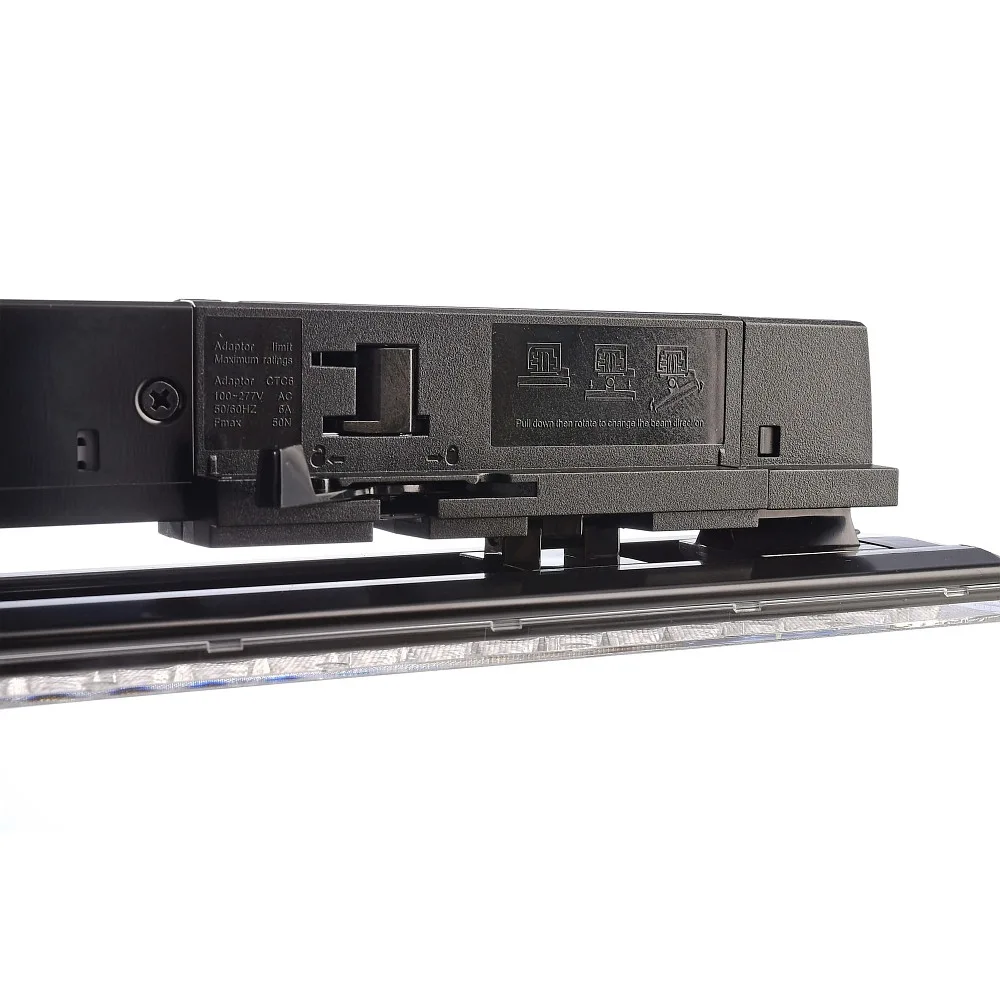

The 3-phase luminaire is mounted via a track system and is suitable for indoor use only. It can be connected to the power grid via a 3-phase adapter and has a swivel range of 30° in two directions. The square design and black color make it a stylish and discreet light source.

Further information

Thanks to the Multi-Power system, the luminaire's power can be adjusted via DIP switches: 14W, 16W, 18W, or 20W. The switchable Multipower version and high color consistency ensure consistently high-quality light. The LED light sources are replaceable by a professional and offer an easy maintenance option.
