3-phase luminaire LINEAR PRO FOLD rigid, switchable, multipower IP20, white

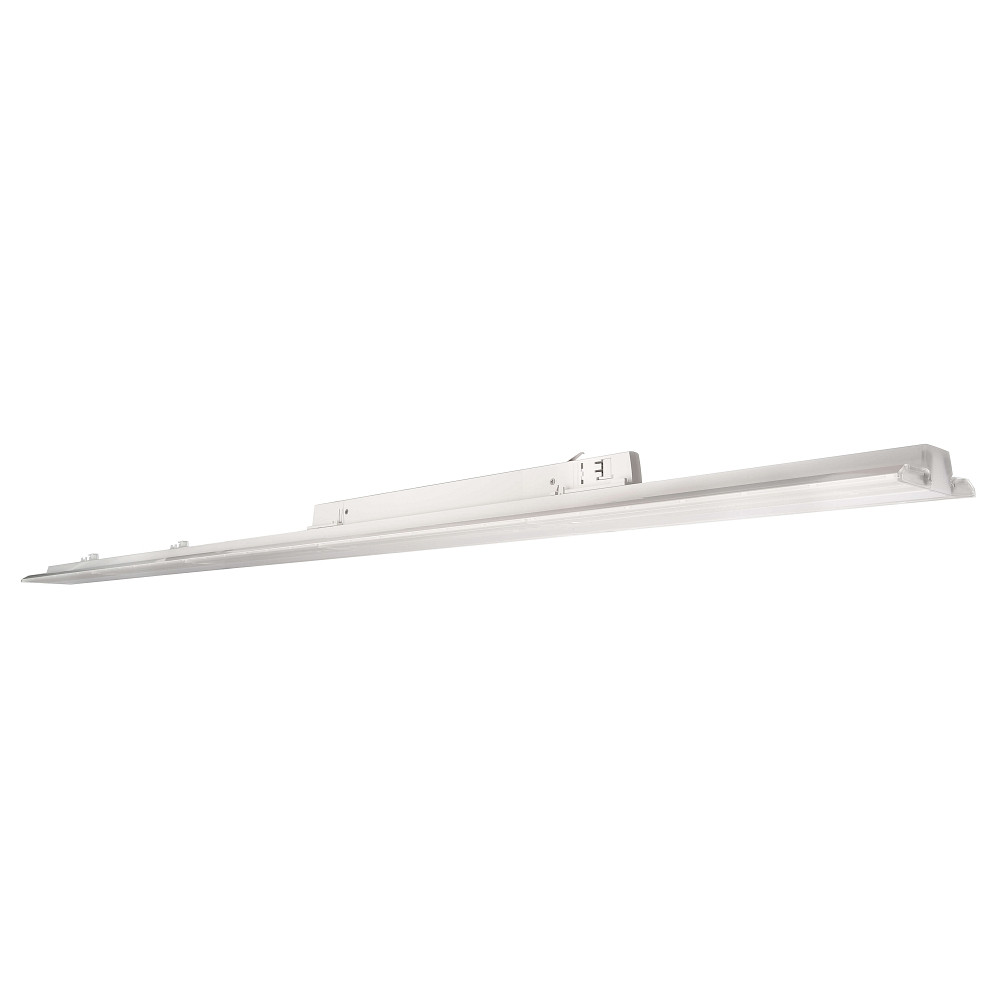

LED 3-phase luminaire LINEAR PRO FOLD

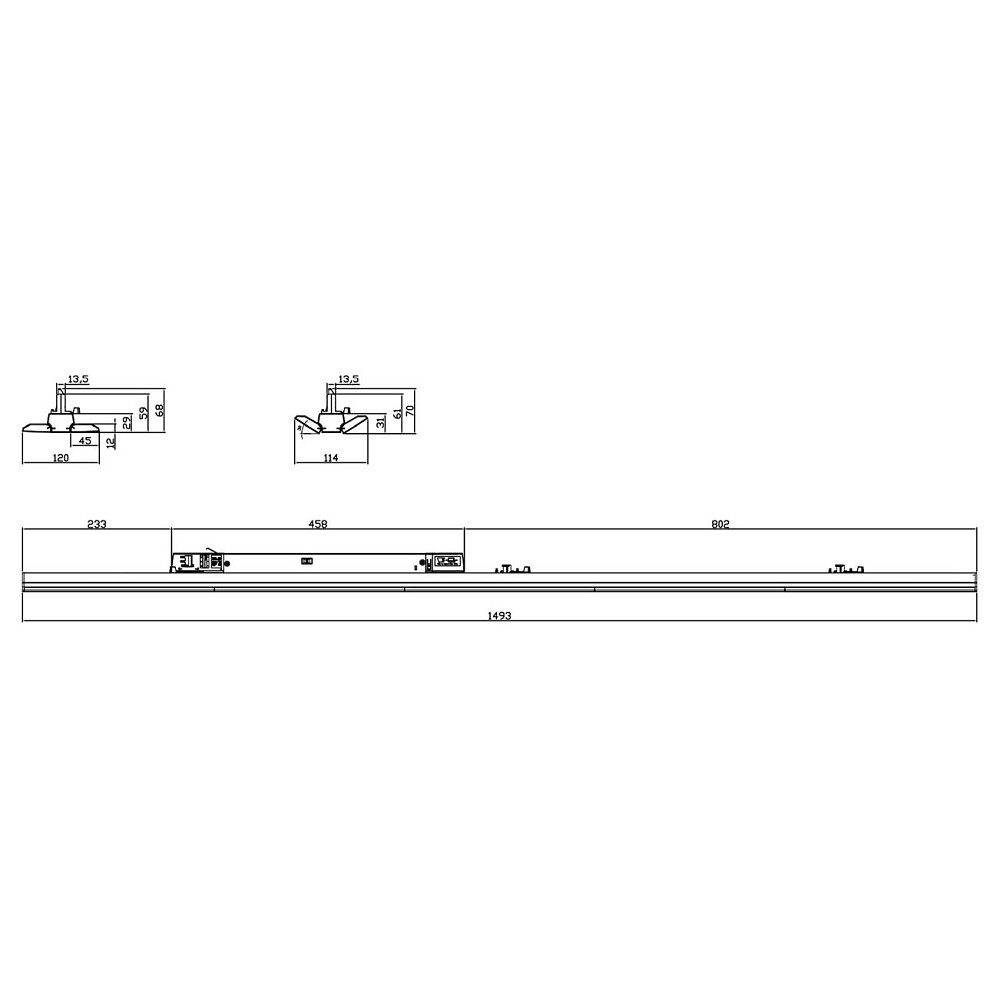

The LED 3-phase luminaire LINEAR PRO FOLD from Deko-Light is a rigid long-field luminaire with special optics, ideal for use in retail shelves and aisles. With a length of 150cm and a weight of 2.15kg, it offers a particularly energy-efficient lighting solution with 145 lumens per watt.

Technical details

The luminaire features an LED module TC with a total of 312 LEDs and a color rendering index of 90Ra. The color rendering level is 1A and the light color is neutral white with a color temperature of 4000K. The beam angle is 30° and the light distribution is symmetrical.

Special features

The LINEAR PRO FOLD luminaire is switchable and has a Multipower version, where the power level can be set via DIP switches. It can be operated at 35W, 40W, 45W, or 50W. The luminaire has a very low color consistency of 3 SDCM, ensuring minimal tolerance of color variations when using multiple identical luminaires.

Installation and application

The 3-phase luminaire LINEAR PRO FOLD is mounted on a rail system and can only be used indoors. It is mainly used on ceilings and offers an efficient lighting solution for retail. The mains frequency is 50-60Hz and the operating voltage is 220-240V~.

Energy efficiency and environmental compatibility

With an energy efficiency class B and an energy consumption of 50kWh/1,000h, the LED luminaire LINEAR PRO FOLD offers an energy-saving lighting solution. The average lamp lifespan is 60,000 hours and the light output at the end of the lifespan is still 80%. Additionally, the luminaire is eligible for BEG funding and has a high power factor of 0.9.
