3-phase luminaire LINEAR PRO FOLD DALI rigid, DALI controllable IP20, white dimmable

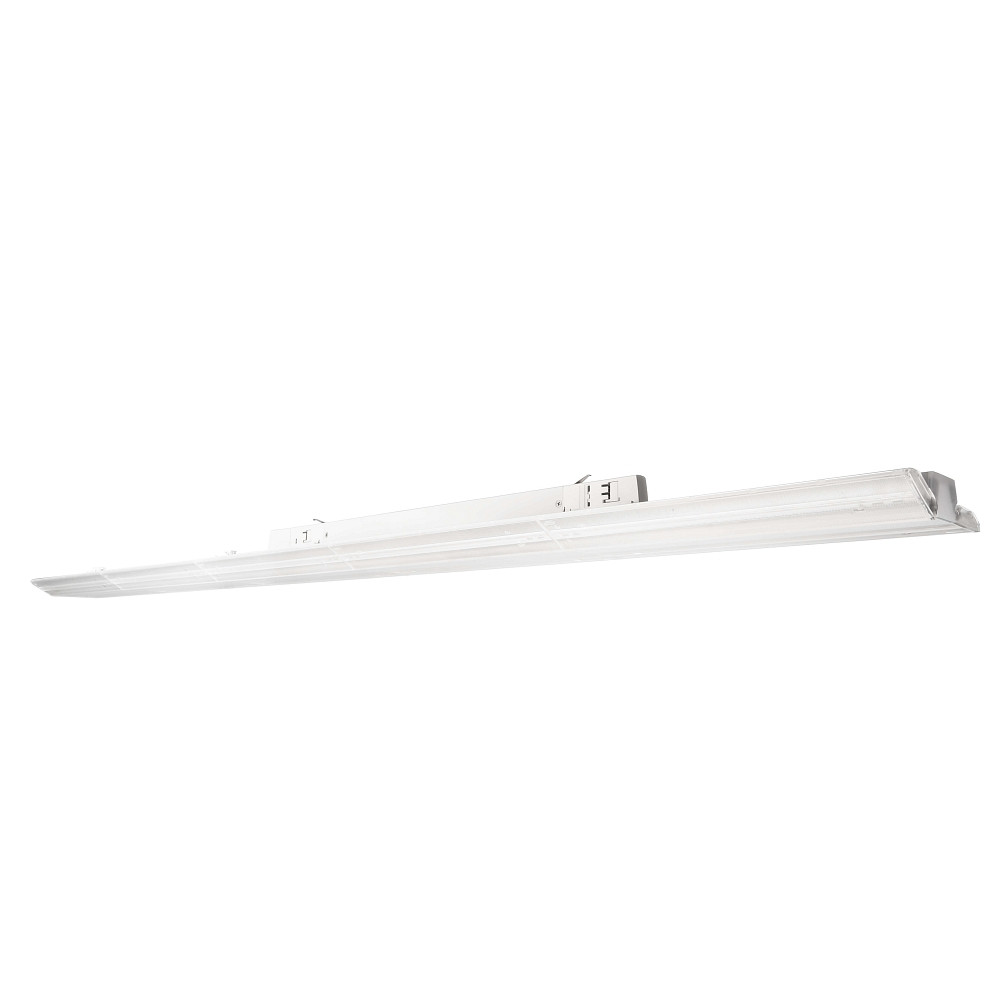

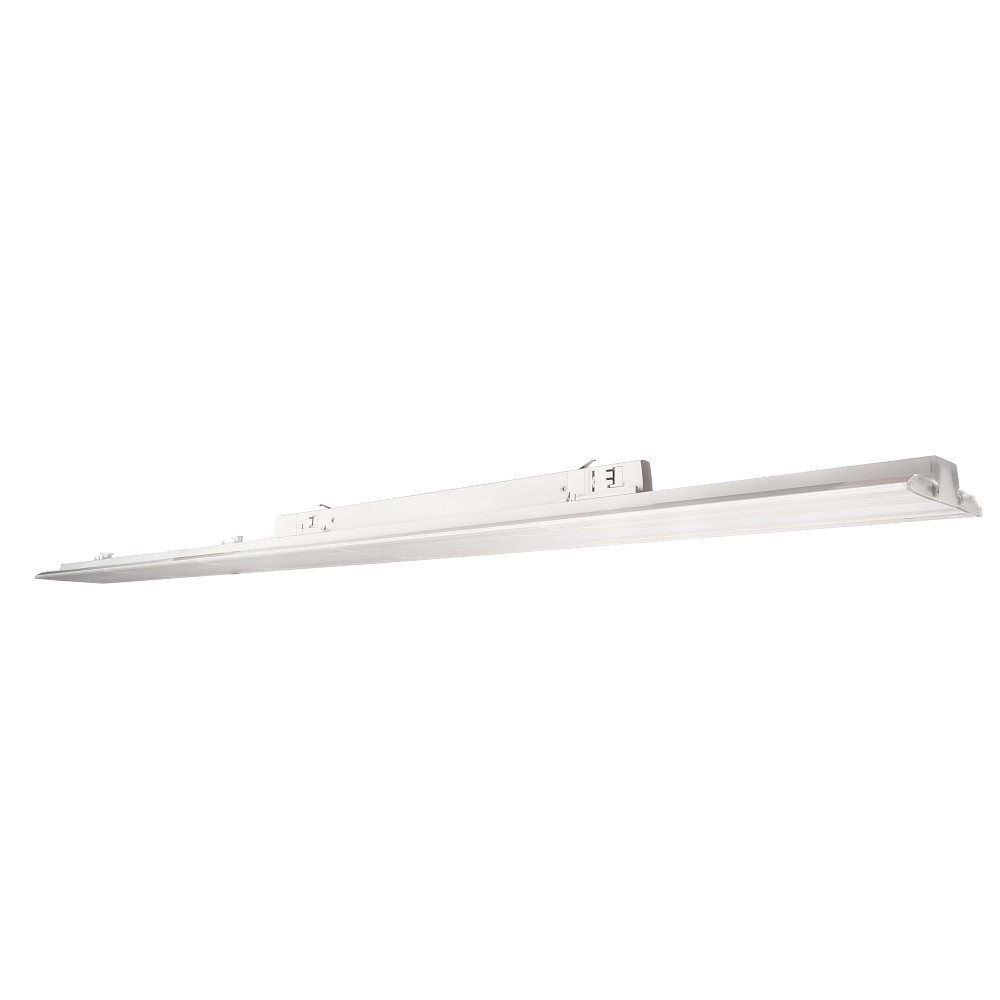

LED 3-phase luminaire LINEAR PRO FOLD

The LED 3-phase luminaire LINEAR PRO FOLD from Deko-Light is a fixed-mounted luminaire with a length of 150cm and a color rendering index of over 90Ra. With a beam angle of 30° and a power consumption of 50W, it offers a high light output of 145lm/W and a luminous flux of 7250lm. Due to the use of 3 LED modules TC, this luminaire is particularly energy-efficient and is ideal for use in retail shelves and sales aisles.

Technical details

The LED 3-phase luminaire LINEAR PRO FOLD can be controlled via the DALI dimming protocol and is suitable for indoor use. With an operating voltage range of 220-240V~ and a lifespan of 60000 hours, it offers a reliable lighting solution. The luminaire has an IP protection rating of IP20 and can be easily connected via a 3-phase adapter.

Design and material

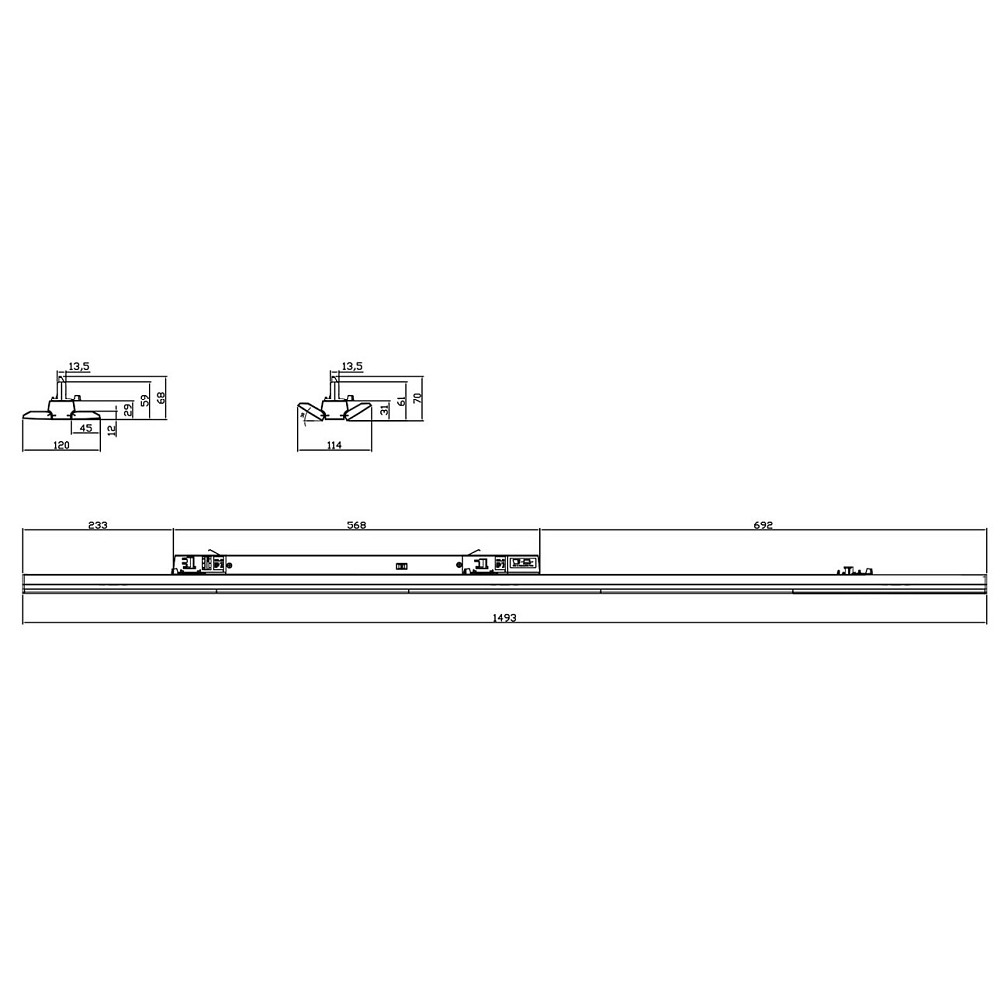

Thanks to its square design and high-quality materials such as aluminum and polymethylmethacrylate (PMMA), the LED 3-phase luminaire LINEAR PRO FOLD harmoniously blends into any environment. With a size of 149.3 x 12 x 6.8 cm and a weight of 2.15 kg, it is easy to install and provides uniform light distribution.

Areas of application

Due to its special appearance, the LED 3-phase luminaire LINEAR PRO FOLD is particularly suitable for use in retail shelves and sales aisles. It is not only energy-efficient but also very durable and offers consistent light color thanks to a color consistency of 3 SDCM. With a color rendering index of over 90Ra, it provides natural and clear lighting.

Further information

The LED 3-phase luminaire LINEAR PRO FOLD is eligible for BEG funding and offers a sustainable lighting solution with a power factor of 0.9 and a luminous flux at the end of its life of 0.8. With a switching cycle of 100,000 and an operating temperature range of -25 to +40°C, it is versatile and stands out for its high quality and efficiency.
