1-Phase High voltage track 1m, silver grey

High-Quality 1-Phase High-Voltage Track for Versatile Lighting Solutions

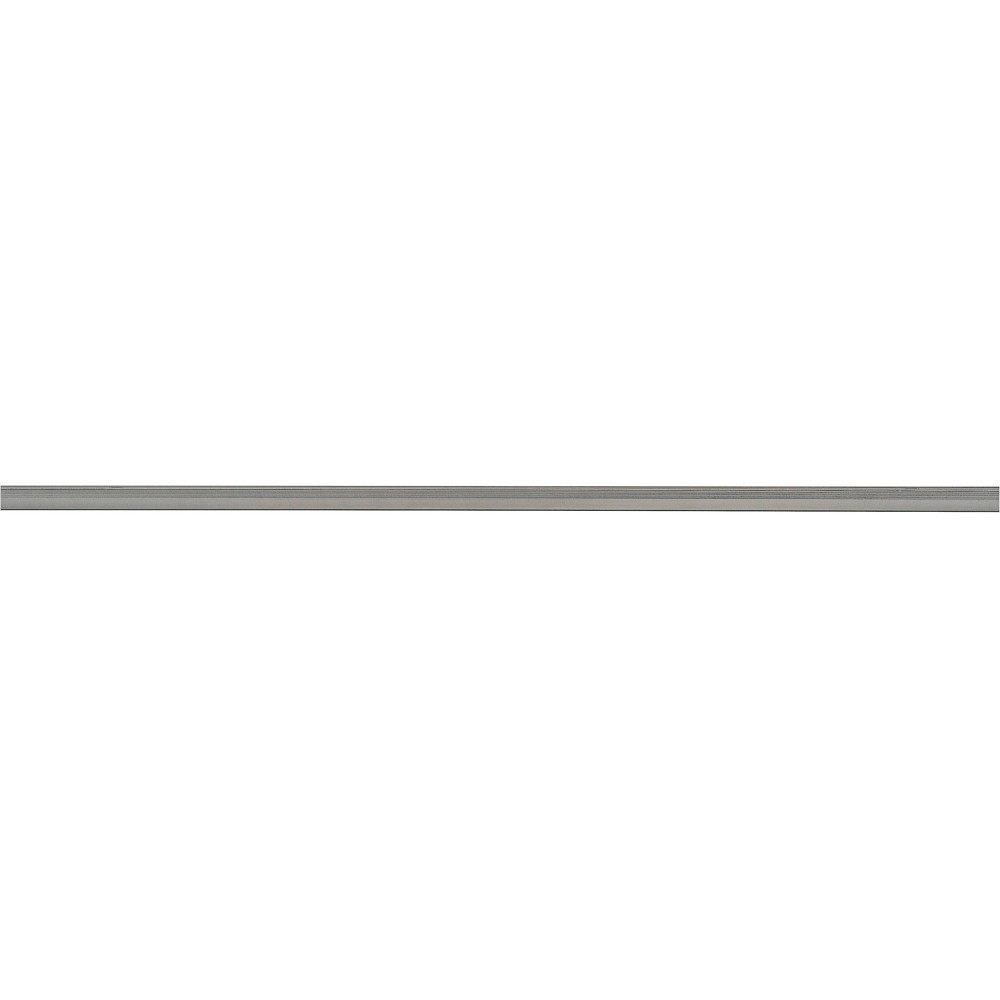

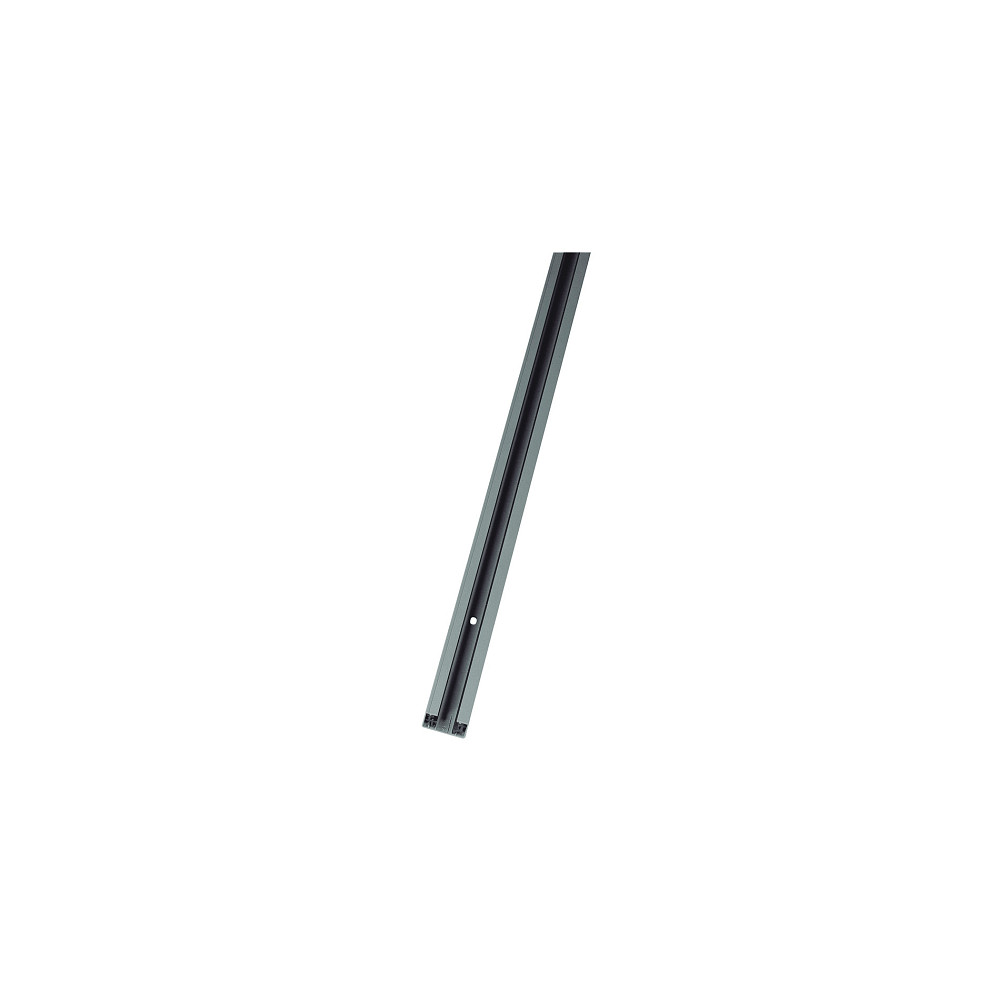

The 1-phase high-voltage track from SLV impresses with its robust construction made of aluminum and a length of 100 cm. It is specially designed for surface mounting and is suitable for both ceiling and wall installation. With an operating voltage of 220-240V and a maximum current load of 16A, it provides a reliable power supply for a variety of lighting concepts. The silver-gray color gives it a modern and unobtrusive appearance that harmoniously fits into different room designs.

Easy Adjustment and Flexible Installation

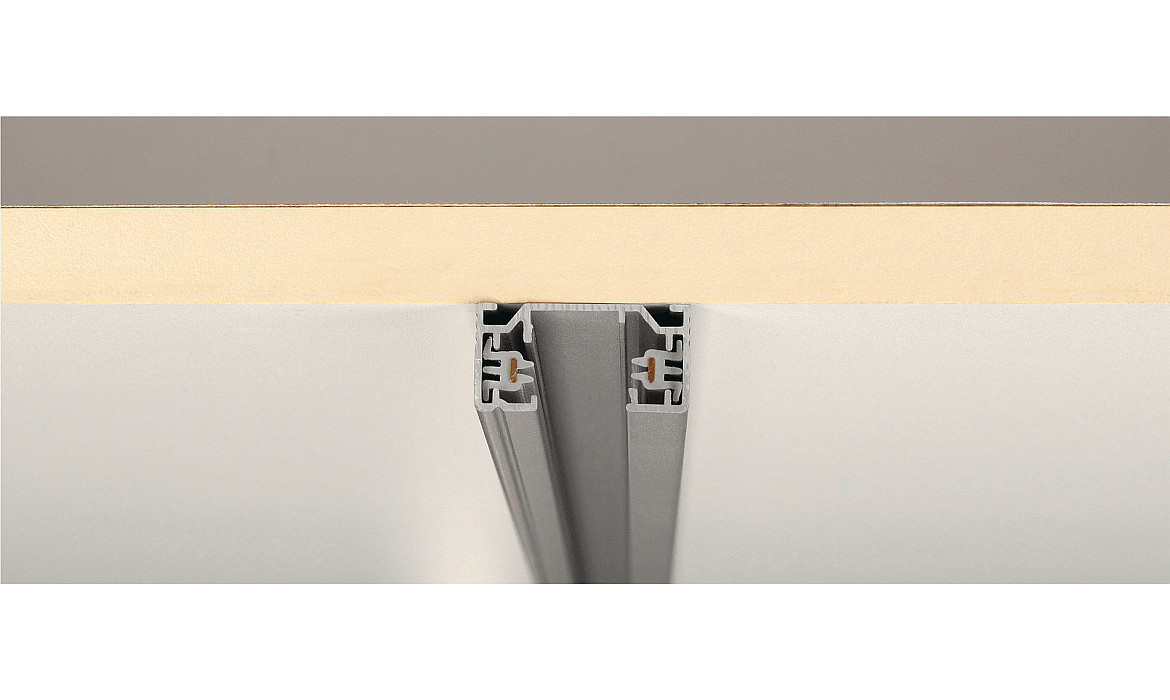

The high-voltage track can be easily cut to the desired length with a standard metal hacksaw, allowing individual adaptation to different room sizes and requirements. The mounting is done as a surface-mounted version, which is securely and stably attached to the wall or ceiling. Optionally, the track can also be used as a pendant version when the appropriate accessories are added. This allows the lighting to be designed flexibly and according to needs.

Compatibility and Accessories

The track is designed as a rail system for individual configuration. Lights, power feeders, end caps, and connectors are not included in the delivery but can be purchased separately. The track supports analog switching and dimming, enabling easy control of light intensity. With a conductor cross-section of 4 mm², safe and efficient power transmission is ensured.

Technical Details Made Easy

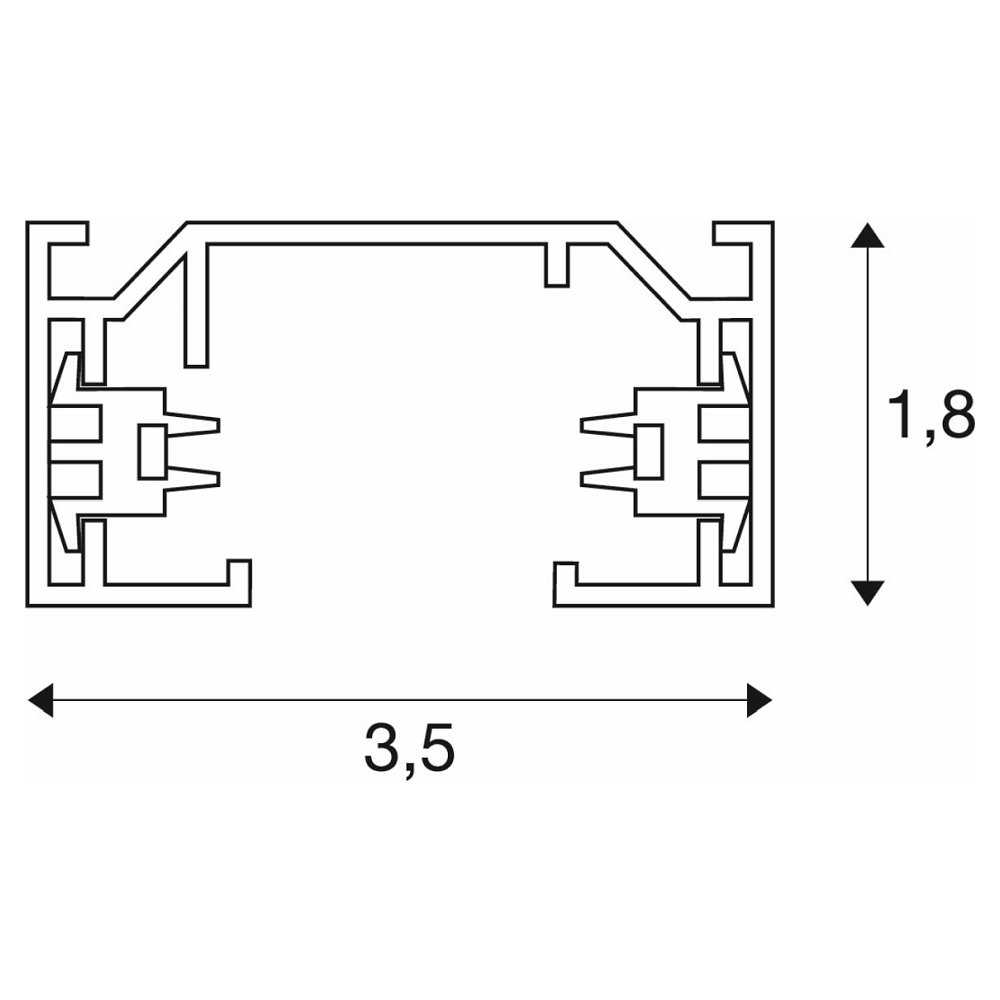

The product operates at a mains frequency of 50/60 Hz and meets protection class 1 as well as the IP protection rating IP20. This means it is protected against contact with conductive parts and is designed for use in dry indoor areas. The low weight of only 0.656 kg facilitates handling and installation, while the compact dimensions of 100 x 3.5 x 1.8 cm allow for discreet integration.

Variety of Color and Length Options

The 1-phase high-voltage track is available not only in the silver-gray variant described here but also in black and white. Additionally, the track is offered in different lengths, including a 200 cm long recessed version in white. This variety makes it possible to optimally adapt the track to individual needs and spatial conditions, thus realizing a consistent and functional lighting concept.
