recessed luminaire DILED 68 swivelling IP20, steel dimmable 6W 380lm 3000K 36° 36° CRI 95

SIGOR



We use Trusted Shops as an independent service provider for obtaining reviews. Trusted Shops has taken measures to ensure that the reviews are genuine.
More information
Are you a retailer or business customer (commercial/freelancer)? Secure special B2B prices now.

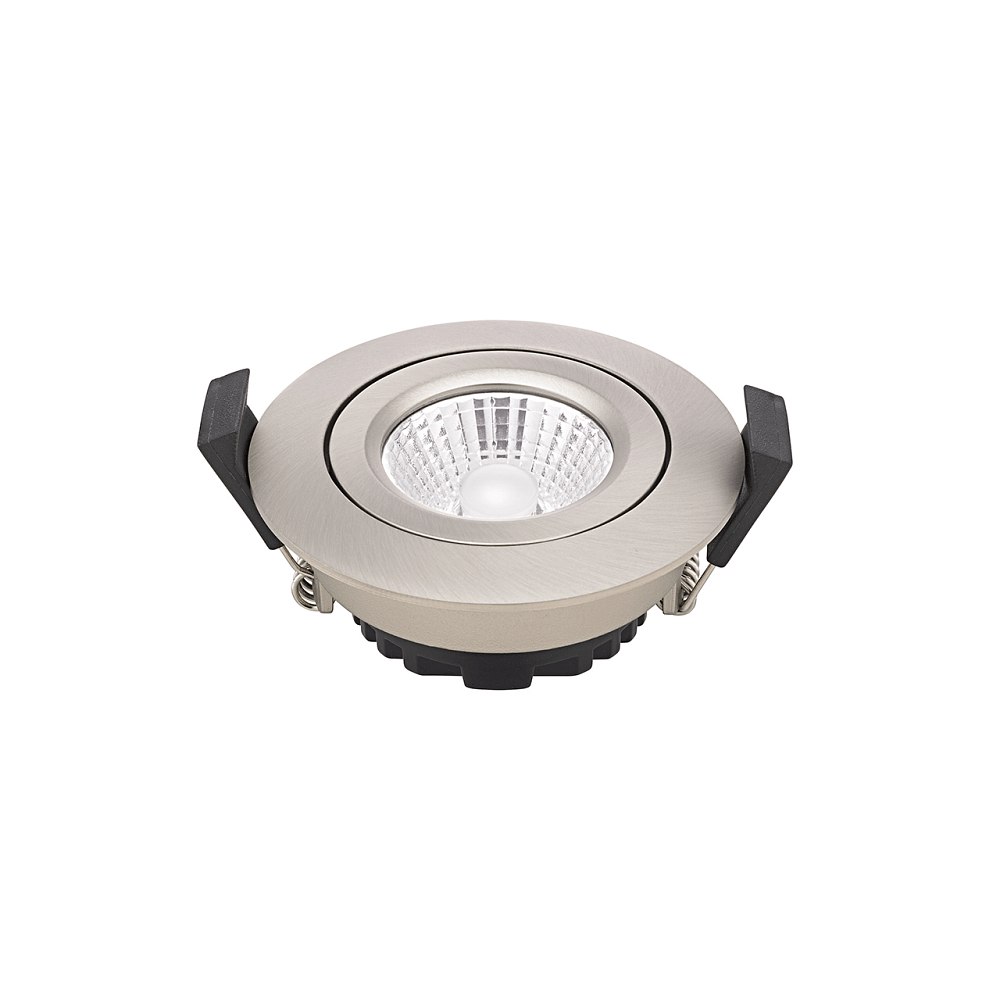

LED Recessed Downlight DILED, IP20, Ø 8.5cm, 6W 3000K 310lm 36°, swiveling 50°, dimmable

The LED Recessed Downlight DILED is a modern recessed light for indoor use with a diameter of 8.5 cm and a power consumption of 6W. It offers a warm white light color of 3000K and a light output of 310lm with a beam angle of 36°. Additionally, the downlight is swiveling by 50° and dimmable with the appropriate accessories.

Technical Details

The downlight has an integrated LED driver and can be directly connected to a 230V AC mains voltage. With an energy efficiency class of G and a color rendering index of 95Ra, it offers very good, daylight-like color reproduction. The patented plastic lens provides glare-free illumination and a defined light beam.

Design and Installation

The minimalist design of the downlight fits perfectly into any ceiling and offers subtle lighting. It has a protection class of 2 and a swivel range of 50°. The mounting type is recessed installation and the installation opening is 6.8 cm. With a weight of 1.02 kg and a diameter of 8.5 cm, the downlight is easy to install.

Longevity and Efficiency

With an average lamp lifespan of 40,000 hours and 100,000 switching cycles, the LED Recessed Downlight DILED is very durable and efficient. It has a start time of less than 0.5 seconds and a low surface temperature compared to traditional light sources.

Accessories and Delivery Contents

The required LED light bulb is already included in the delivery contents of the downlight. Additionally, a dimmerexcl accessory is included. The downlight is not only continuously dimmable, but also offers a color rendering grade of 1A and is ideal for use in living spaces, offices, or shops.

Colour:
steel
Glass color:
clear

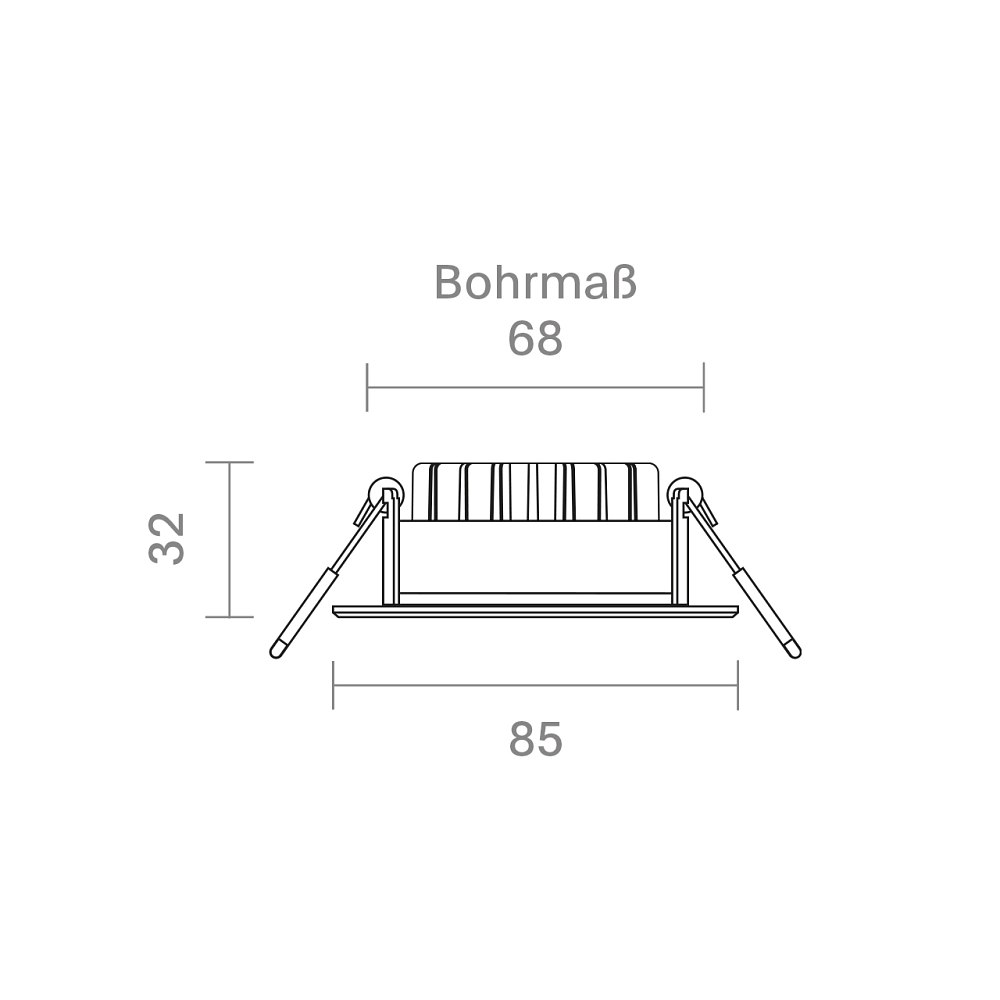

Dimension:
Ø∕ H: 8,5∕ 3,2 cm
Material:
die-cast aluminium
plastic
Weight:
0.1586 g
Product type:
recessed luminaire
Lamp shape:
round
Bulbs in delivery:
yes
Accessories:
dimmer - not included in delivery
clip springs - included in delivery
driver - included in delivery
Application area:
suitable for indoor use
Field of application:
ceiling
Operating voltage:
230 V~
Dimmable:
yes
Dimmability:
with optional features only
Power frequency:
50/60 Hz
Power consumption:
6 W
Emitting angle:
36.00 °
LED can be replaced :
no
Bulb type:
LED
Number of bulbs:
1
Voltage:
Clamp
Light colour:
warm white
Light emission:
direct
Beam direction:
swivelling
Light flux:
380 lm
Nominal current:
28 mA
Colour temperature:
3000 K
Average life span of a bulb in hours:
50000 h
Switching cycles:
100000
Colour rendering index:
95 Ra
1A
Swivel range:
25 °
Fitting depth:
3,2 cm
Fitting opening circle :
6,8 cm
Plug type:
clamping connection
Mounting:
recessed mounting
Protection class:
2
IP-protection class:
IP20
comparable with a filament lamp (standard bulb) with wattage of:
60 W
ambient temperature:
-20 ... +40 °C
Tc (°C):
85 °C
Energy efficiency category:
G
EPREL No:
1305370
Energy consumption:
6 kWh/1.000 h
Article number:
SIG-5724701
Purchasing quantity:
1 piece
Brand:
SIGOR
Manufacturer:
SIGOR
Manufacturer information
Sigor Licht GmbH, Eichenhofer Weg 81, 42279, Wuppertal, Germany, info@sigor.de
