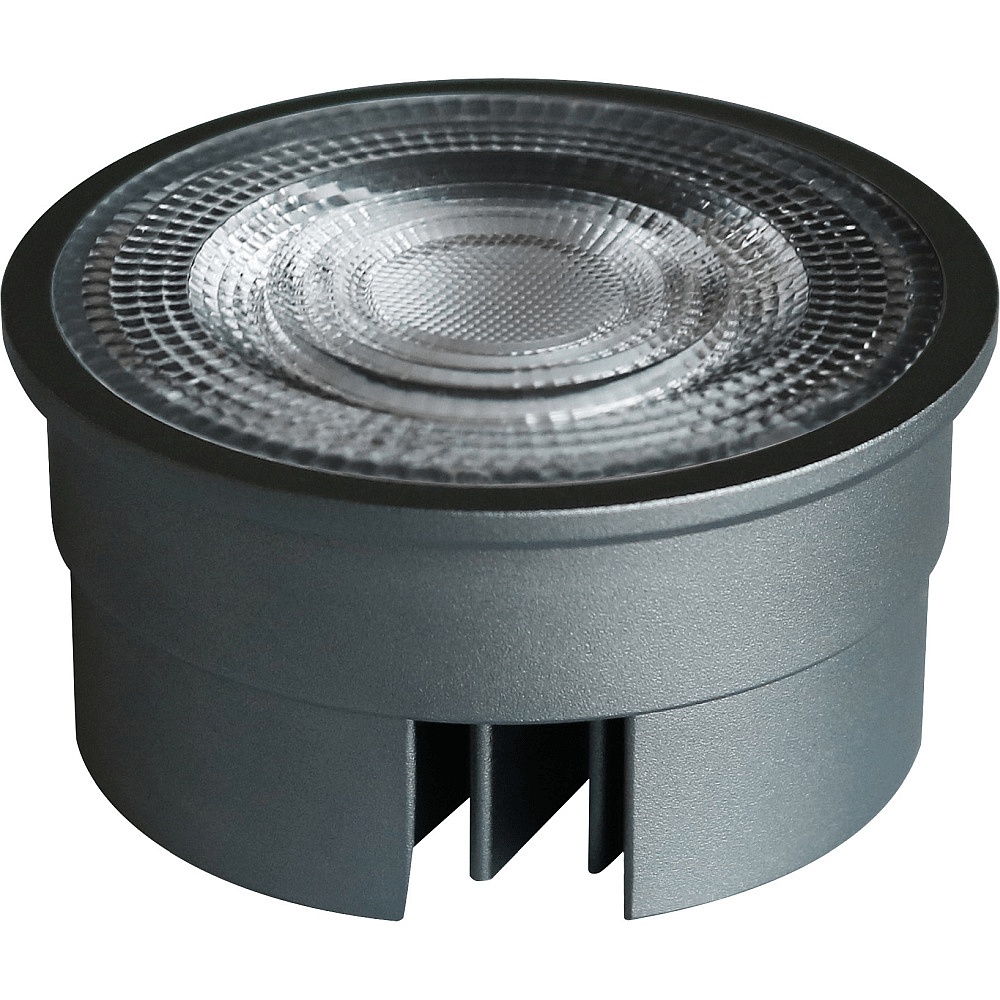

LED module KOIN DIM round, incl. driver, set of 1 7,6W 570lm 3000K 100° dimmable

LED Module Set KOIN DIM, 7.6W 3000K 570lm 100°, CRi 97

The LED Module Set KOIN DIM from MEGATRON is the perfect solution for tight installation spaces such as room ceilings, built-in cabinets, or shelves. With a power of 7.6W and a light intensity of 570lm, it provides a warm white, dimmable light output in a wide 100° angle. With excellent color rendering (CRi 97Ra, Grade 1A), the module offers natural lighting.

Technical Details

The LED Module Set features an external driver and connectors for easy installation. The driver can easily be stored in 68mm drill holes and tight spaces. With an energy efficiency class of F and an average lamp lifespan of 50000 hours, the module is a durable and energy-efficient light source.

Easy Handling

The LED Module Set can be dimmed continuously from 10 to 100% and offers easy operation. With an operating voltage of 230V and an operating temperature of -20 to +40°C, the module is suitable for indoor use. The passive heat dissipation through cooling fins on the back ensures low heat generation and reliable operation.

Versatile Applications

Thanks to the compact dimensions of the LED module and the operating device, the set is suitable for installation in various areas. The anthracite-colored aluminum housing with convection fins ensures efficient heat dissipation and safe operation. Sets with different mounting rings are also available to make installation even easier.

Accessories and Recommendations

For integration of the KOIN into DALI systems, the manufacturer recommends driver Art.-No. MT56023. The set includes connection cables and connectors, while dimmers and mounting rings are available separately. With an IP protection rating of IP20 and a switching cycle of 100000, the LED Module Set is a reliable and durable lighting solution.
